MÄDLERMÄDLER· Fastening Elements

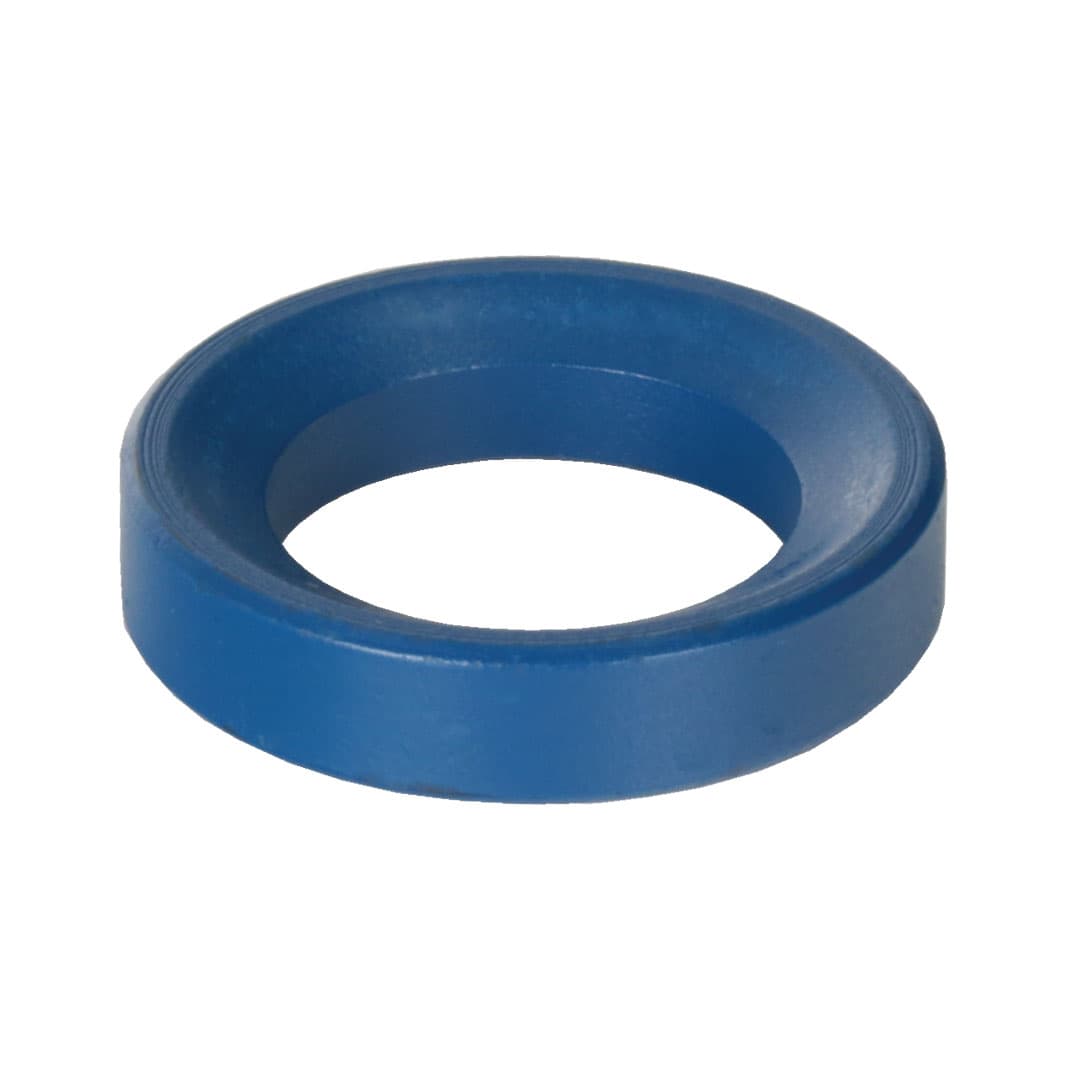

conical seat DIN6319 form D PTFE-coated inner-Ø 12mm outer-Ø 21mm
Manufacturer part no. 65598510
$1.73≈ 1.50 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €1.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.30 |
| Total delivered | €19.80 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 6.5 g |
Other characteristics

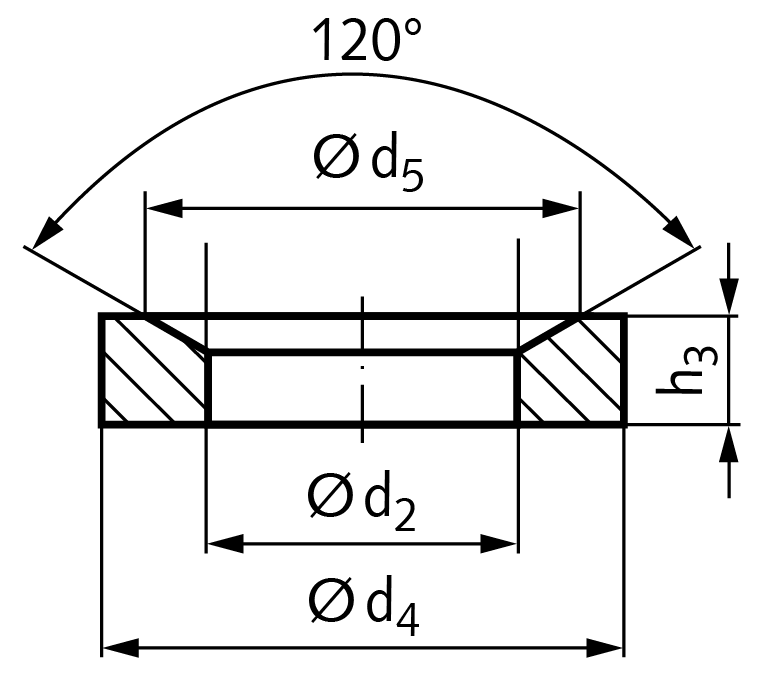

| Height | 4.2 mm |
| Inner diameter | 12 mm |
| Optional spherical washer partno | 65 598 410 |
| Outer diameter | 21 mm |
| For bolt diameter | M 10 mm |
| Material | Steel |
| Surface | PTFE-coated |
Description
Material: Steel, bright, turned, case hardened, hardening depth min. 0.2 mm. PTFE coated, blue-coloured. The very low friction enables precise adjusting at high wear resistance. Spherical washers DIN 6319 type C are mostly used with conical seats DIN 6319 type D, for screw fittings at non-parallel faces. Conical seats DIN 6319 type G, with larger outside diameter and height, should be used at relatively big holes or slot holes. * Total height, together with spherical washer.
