MÄDLERMÄDLER· Fastening Elements

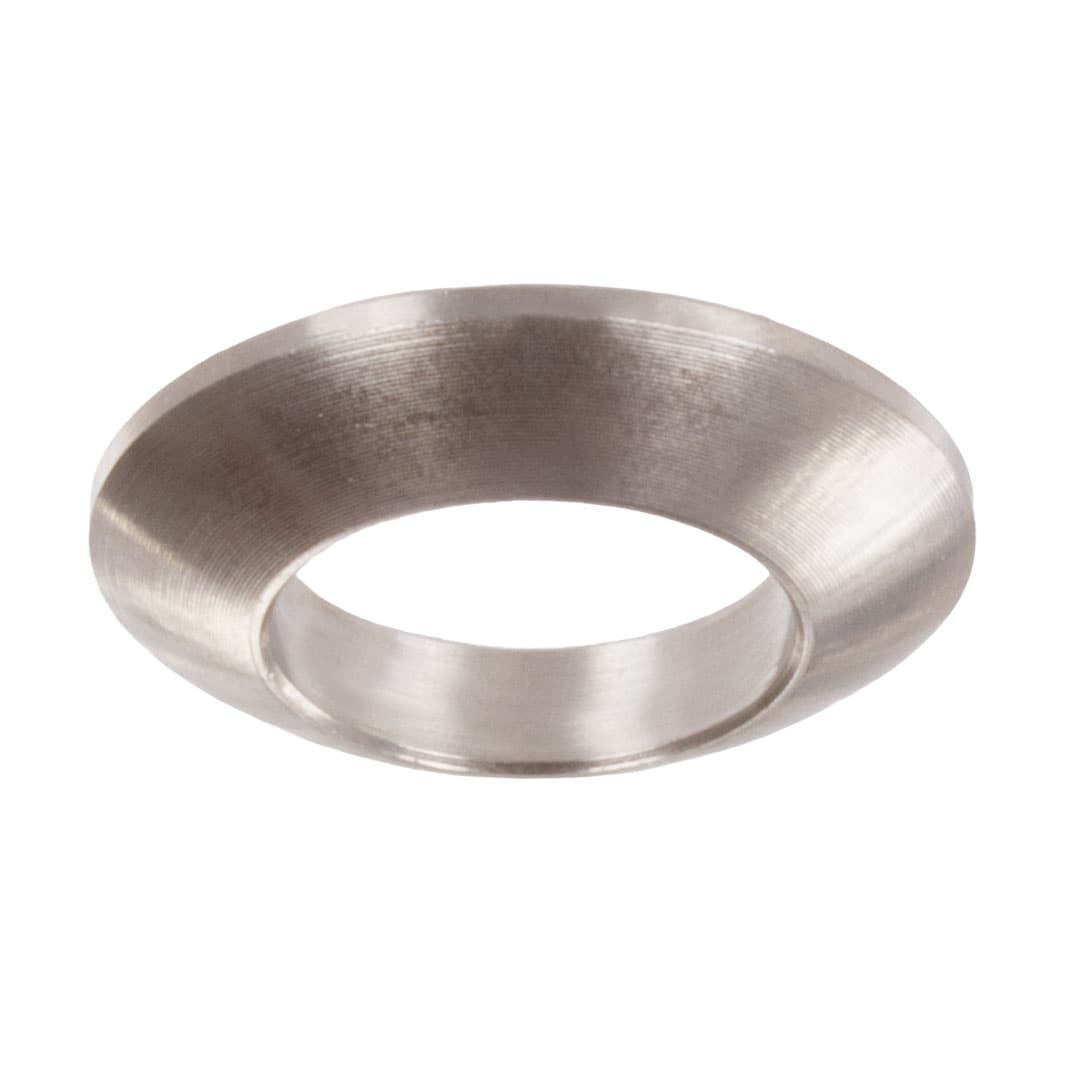

Spherical washer DIN 6319 form C outer diameter 68mm stainless steel 1.4301
Manufacturer part no. 65599436
$15.15≈ 13.16 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €13.16 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.63 |
| Total delivered | €33.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 184 g |
Other characteristics
| For bolt diameter | 36 mm |
| Height | 14 mm |
| Inner diameter | 37 mm |
| Optional concial seat type d partno | 65 599 536 |
| Outer diameter | 68 mm |
| Static load | 262 kN |
| Total height together with spherical washer | 23.5 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
Description
Material: 1.4301 (AISI 304). Spherical washers DIN 6319 type C are mostly used with conical seats DIN 6319 type D, for screw fittings at non-parallel faces. Conical seats DIN 6319 type G, with larger outside diameter and height, should be used at relatively big holes or slot holes. * Total height, together with spherical washer. ** Max. statical load.
