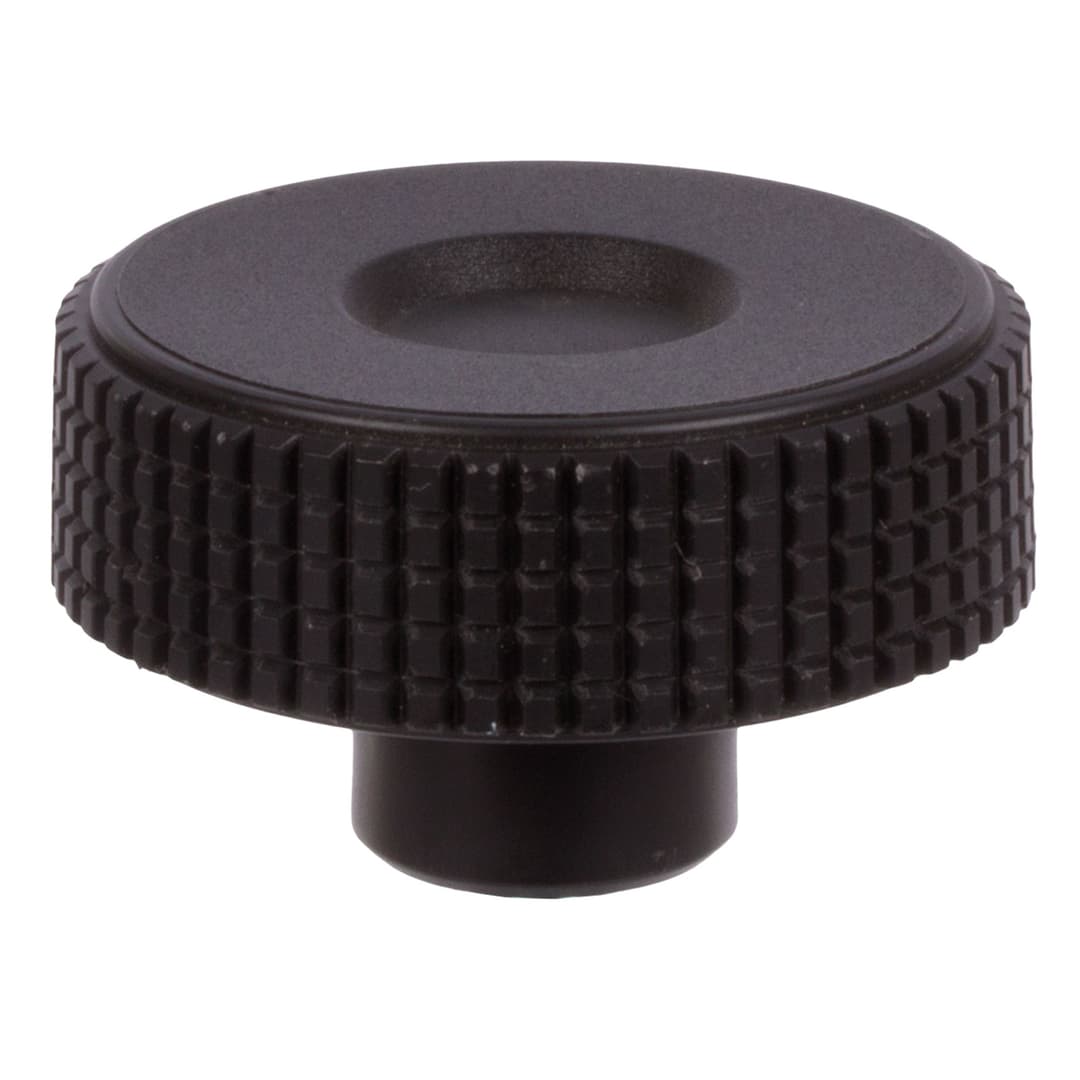

Knurled knob made from thermoplast outside diameter 70mm internal thread M12
Manufacturer part no. 66167001
$14.37≈ 12.48 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €12.48 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.50 |
| Total delivered | €32.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 65 g |
Other characteristics
| Distance to knob | 18.5 mm |
| Hub diameter | 24 mm |
| Length of thread at version e | 20 mm |
| Outer diameter | 70 mm |
| Total height | 38 mm |
| Inner thread size at version e | M 12 mm |
| Material | Polypropylene (PP) |
| Surface | Matt finish |
| Version | E |
Description

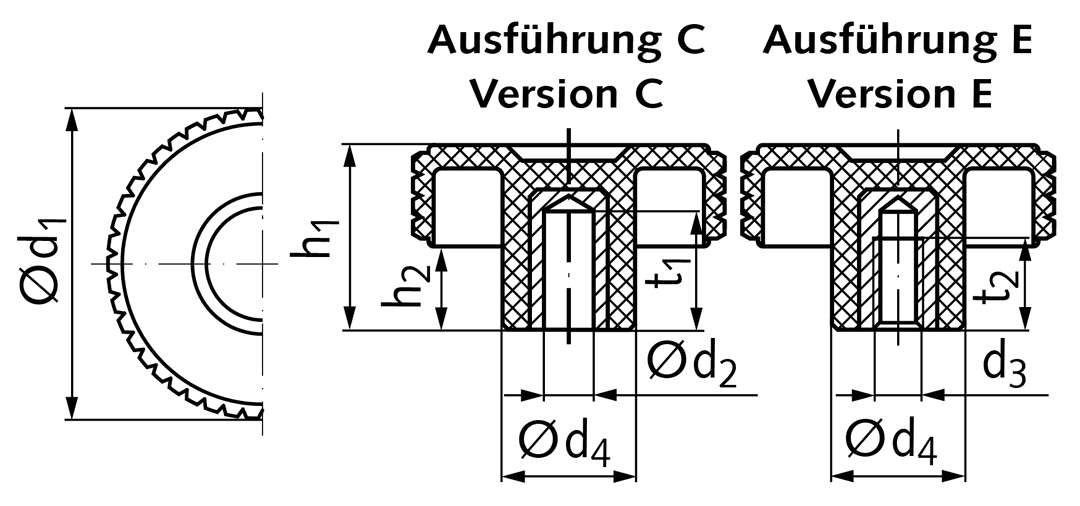

Material: Thermoplast (Polypropylene PP) reinforced, impact resistant, black, matt. Brass bush. Version C = with blind hole d2. Version E = with threaded blind hole d3. Special surface (contact points as a quadratic truncated pyramid) for maximum torque without uncomfortable stress on the skin.
