MÄDLERMÄDLER· Parts for Operating

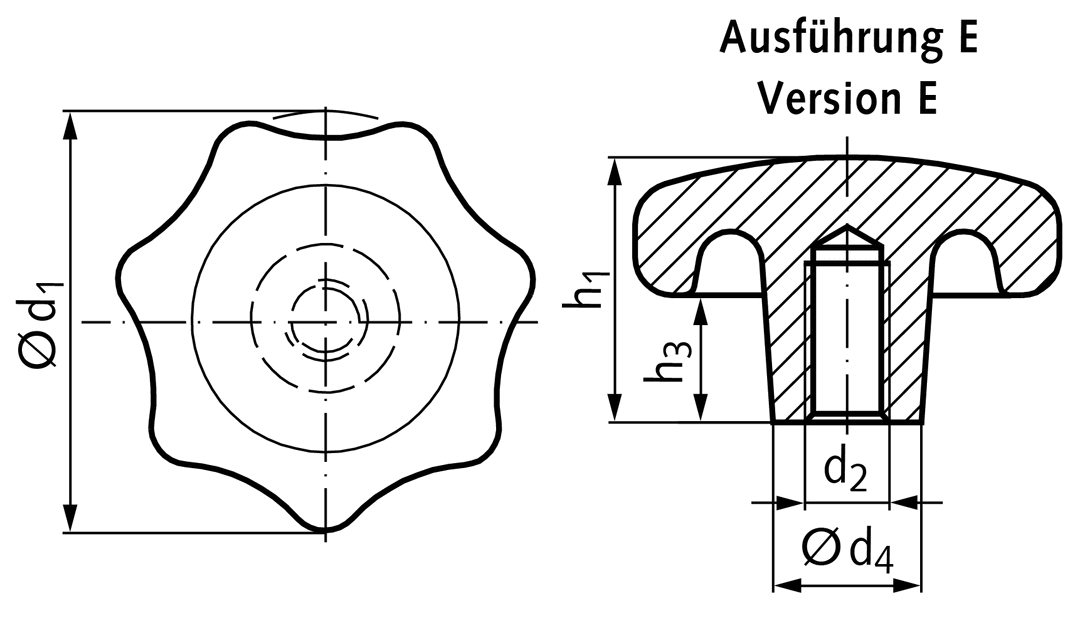

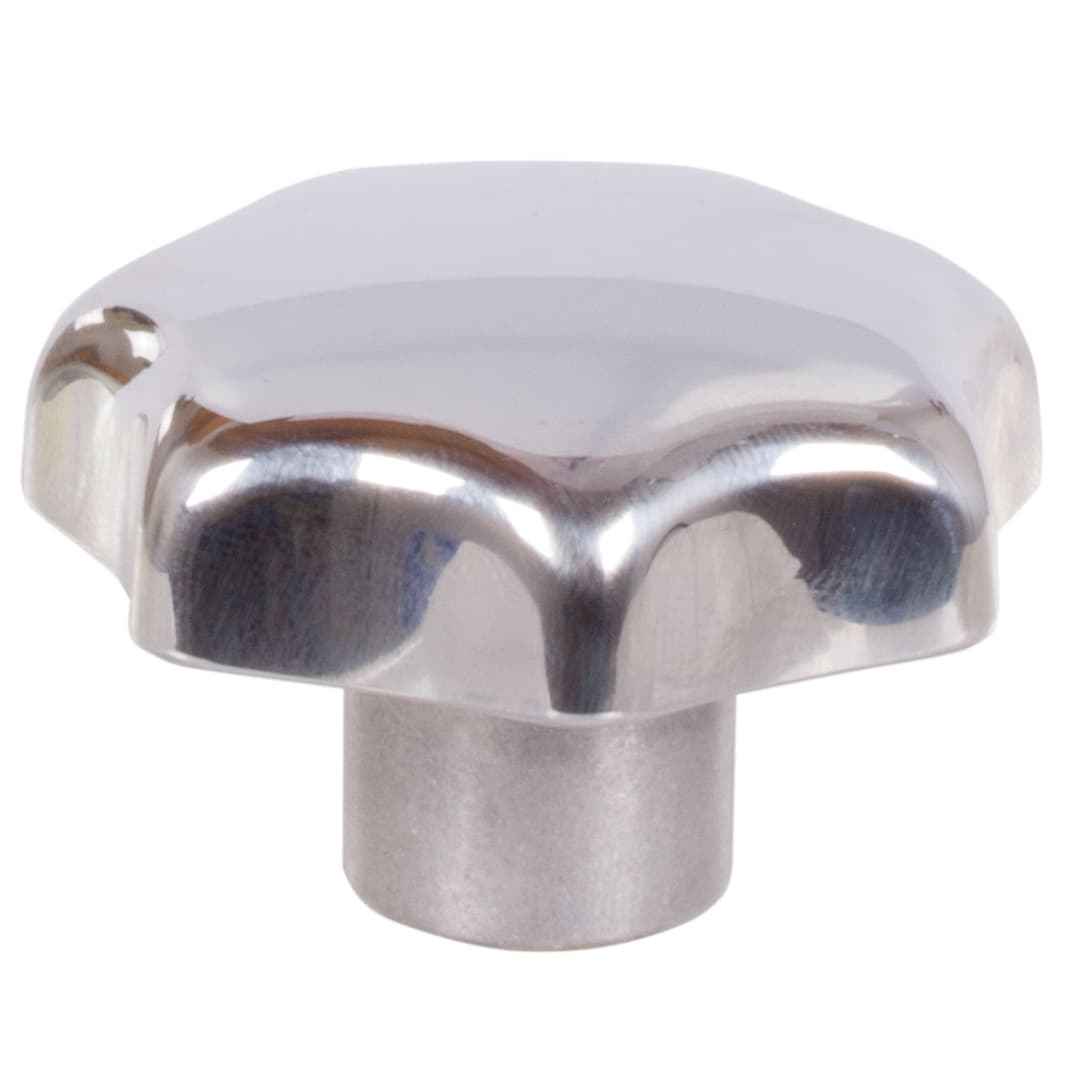

Star knob similar to DIN 6336 made from aluminium type E diameter 40mm
Manufacturer part no. 66174000
$23.06≈ 20.03 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €20.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.01 |
| Total delivered | €42.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 35 g |
Other characteristics
| Distance to knob | 13 mm |
| Hub diameter | 14 mm |
| Outer diameter | 40 mm |
| Total height | 26 mm |
| Inner thread size | M 8 mm |
| Material | Aluminum |
| Surface | Polished |
Description
Material: GKAISi7Cu3, polished. Version E: with thread (tapped blind hole).
