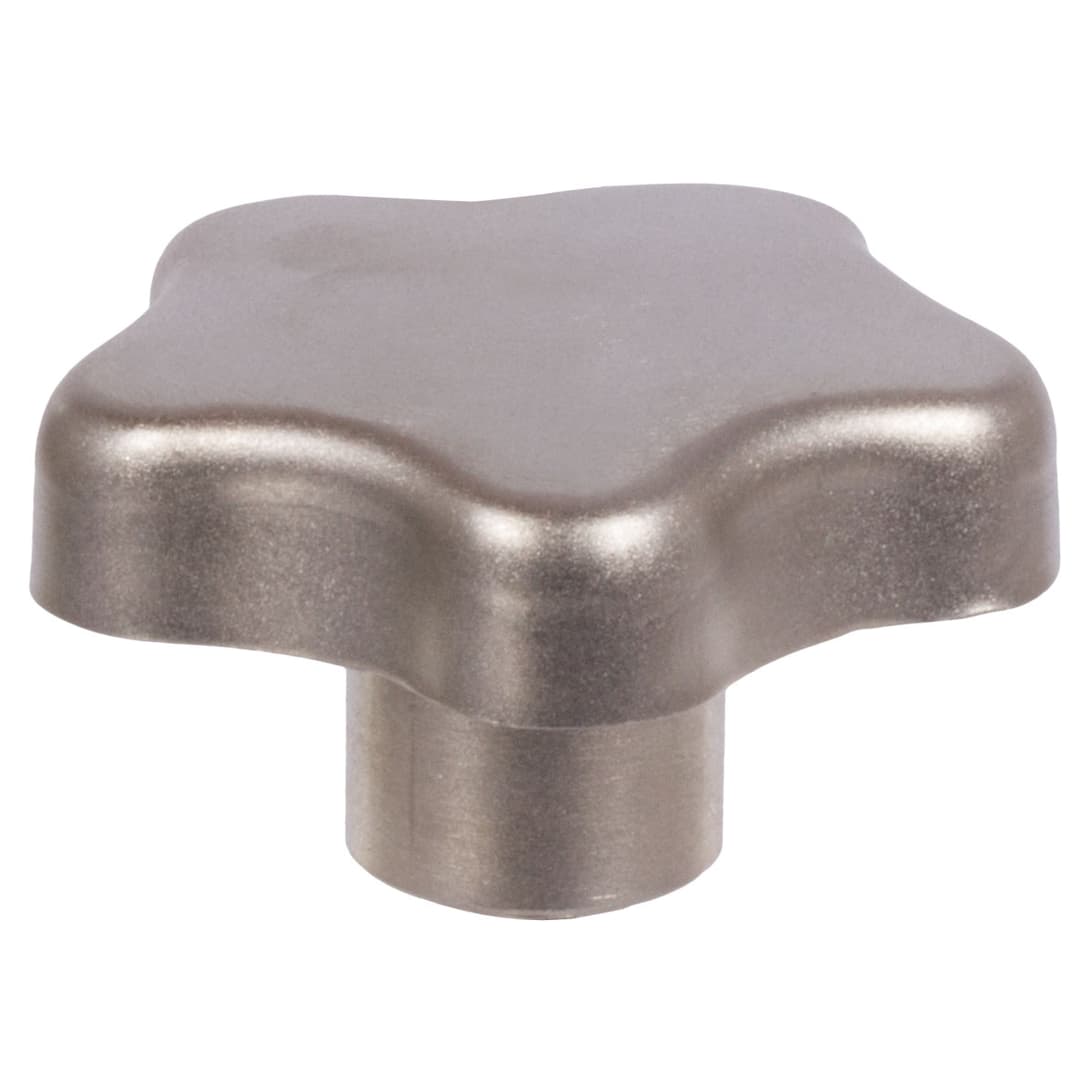

Star knob 5334 stainless steel type E thread M10
Manufacturer part no. 66199313
$22.75≈ 19.76 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €19.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.95 |
| Total delivered | €41.71 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 65 g |
Other characteristics
| Distance to knob | 17.5 mm |
| Hub diameter | 18 mm |
| Min length bore thread | 18 mm |
| Outer diameter | 50 mm |
| Total height | 32 mm |
| Inner thread size | M 10 mm |
| Material | Stainless steel (304) |
| Surface | Matt finish |
| Version | E |
Description
Material: Stainless steel 1.4301 (AISI 304). Grip drawn from stainless-steel sheet. Hub butt-welded on, blasted, matt finish. Version C: with blind hole H7. Version E: with thread (tapped blind hole) d2. Refined and cost-saving manufacturing techniques led to this cost-efficient stainless-steel-version.
