MÄDLERMÄDLER· Parts for Operating

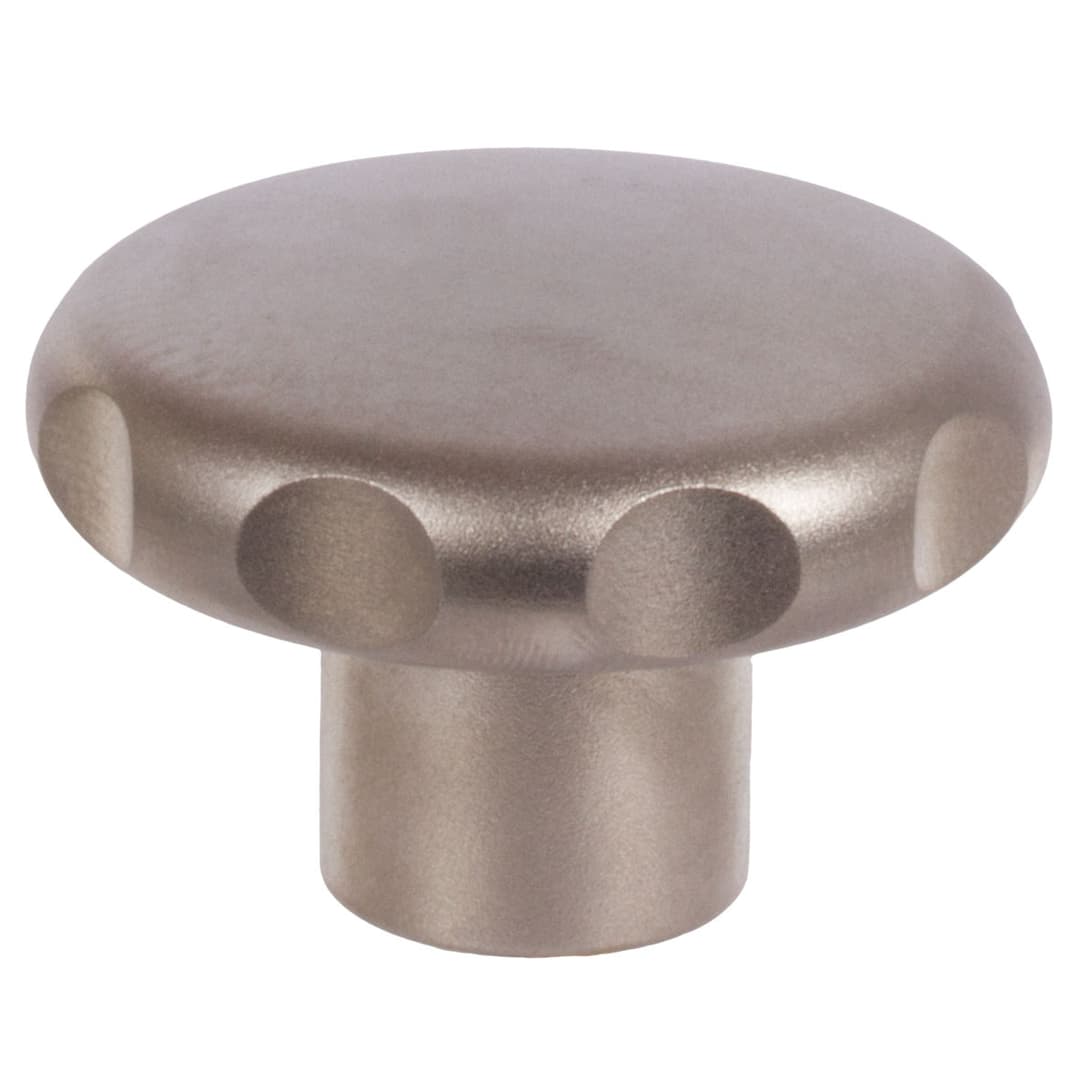

Star knob 5335 stainless steel type C bore 8H7
Manufacturer part no. 66199321
$30.87≈ 26.81 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €26.81 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.36 |
| Total delivered | €50.17 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 125 g |
Other characteristics
| Distance to knob | 15 mm |
| Hub diameter | 18 mm |
| Inner diameter | 8 mm |
| Min length bore thread | 15 mm |
| Outer diameter | 40 mm |
| Total height | 30.5 mm |
| Material | Stainless steel (303) |
| Surface | Matt finish |
| Version | C |
Description

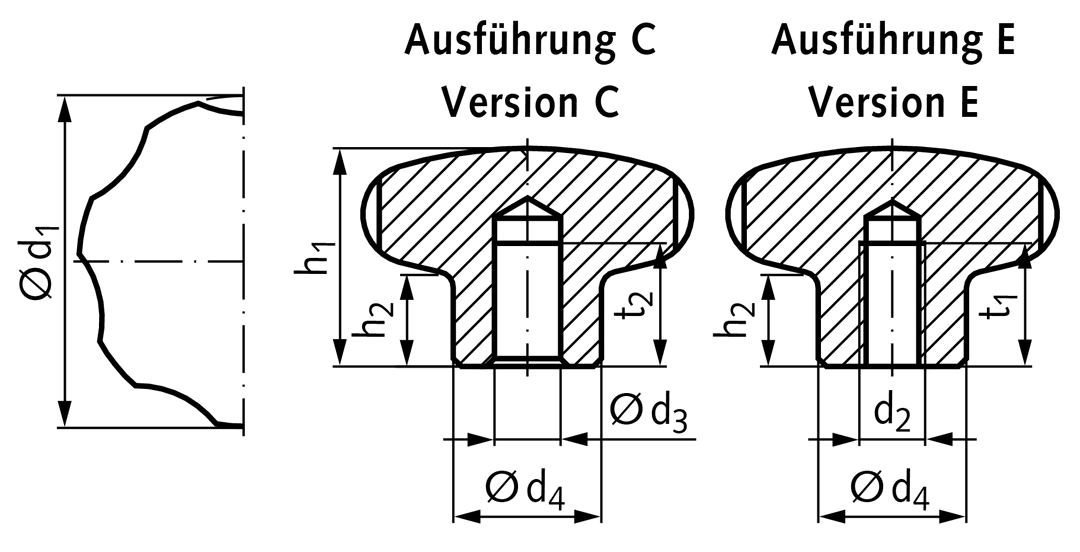

Material: Stainless steel 1.4305 (AISI 303), blasted, matt finish. Version C: with blind hole H7. Version E: with thread (tapped blind hole) d2. Especially suited for the food-processing machinery industry, with smooth and enclosed areas.
