MÄDLERMÄDLER· Parts for Operating

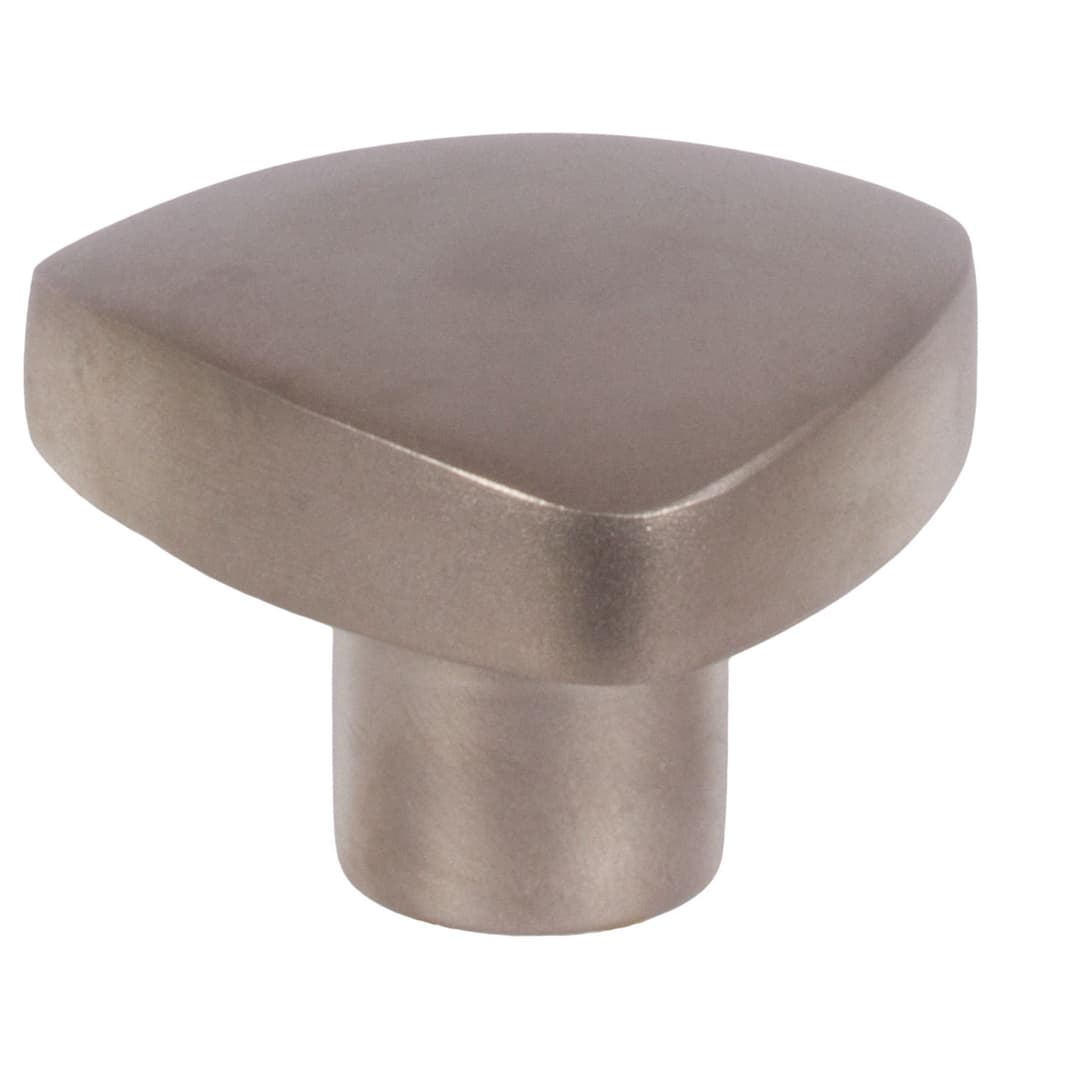

Triangular knob stainless steel d1 = 40mm internal thread M8
Manufacturer part no. 66199642
$37.01≈ 32.14 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €32.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.43 |
| Total delivered | €56.57 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 100 g |
Other characteristics

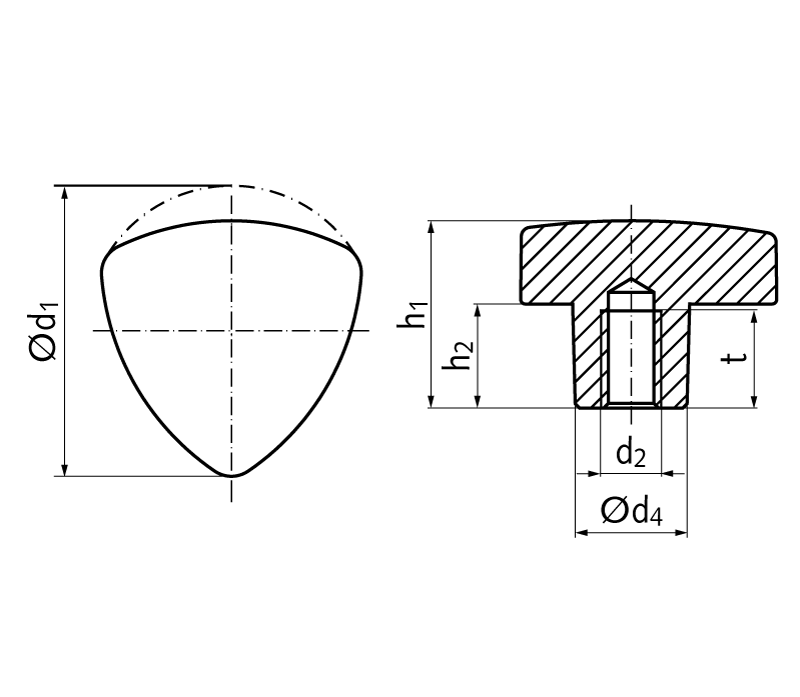

| Distance to knob | 14 mm |
| Hub diameter | 14 mm |
| Min length bore thread | 12 mm |
| Outer diameter | 40 mm |
| Total height | 26 mm |
| Inner thread size | M 8 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
Description
Material: Stainless steel 1.4308 (CF-8), matt blasted. Elegant, easy to grip and clean. For comparably high torque transmission.
