MÄDLERMÄDLER· Parts for Operating

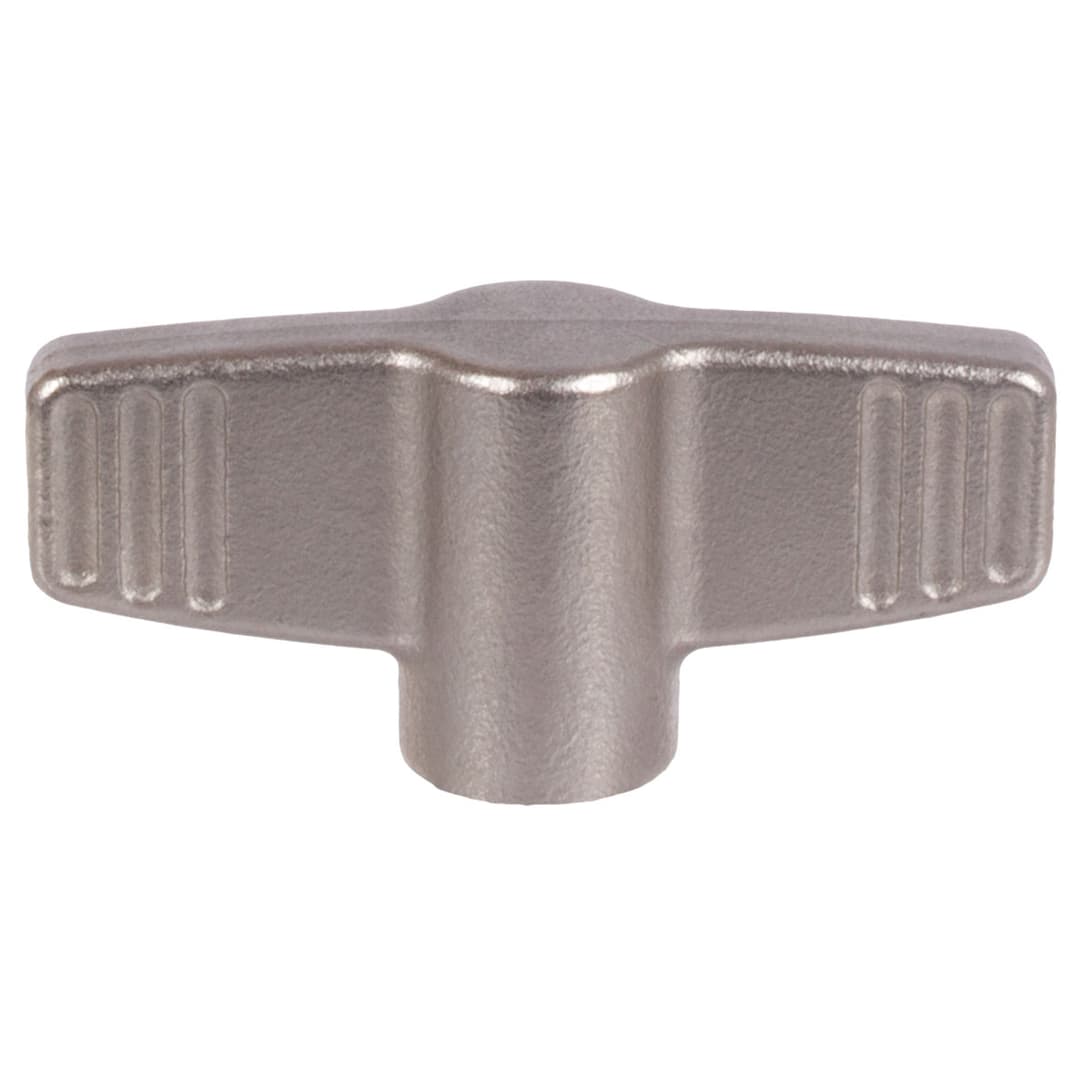

Wing nut stainless steel d1 = 58mm internal thread M8
Manufacturer part no. 66199751
$17.23≈ 14.96 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €14.96 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.99 |
| Total delivered | €35.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 70 g |

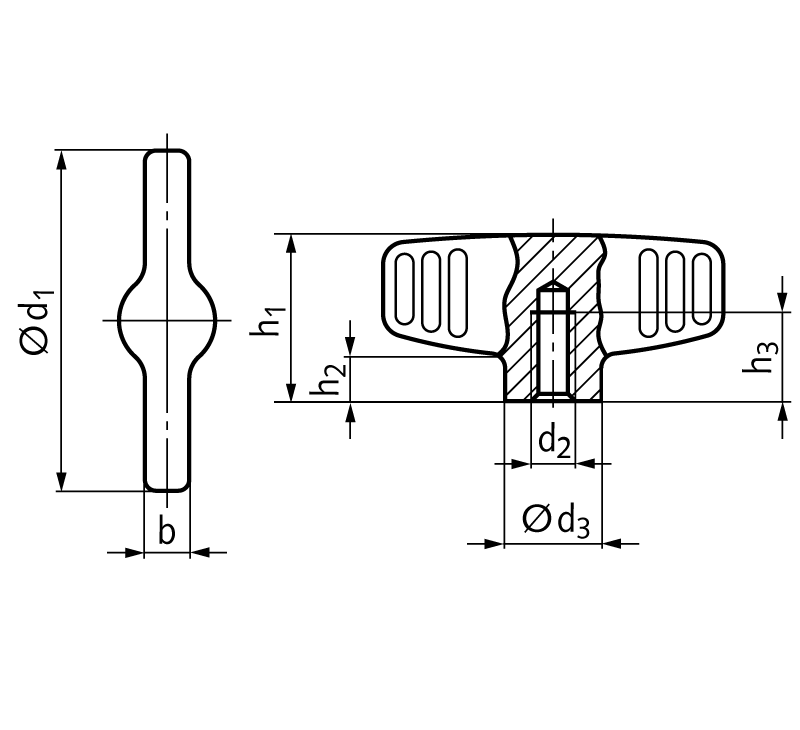

Other characteristics
| Distance to knob | 7 mm |
| Hub diameter | 16 mm |
| Min length bore thread | 15 mm |
| Thickness | 7 mm |
| Total height | 26.5 mm |
| Total width | 58 mm |
| Inner thread size | M 8 mm |
| Material | Stainless steel (304) |
| Surface | Matt finish |
Description
Material: Stainless steel 1.4308 (CF-8), Precision cast, matt blasted. With indents for large, easy to grip contact surfaces. For high tightening torques. Easy to clean.
