MÄDLERMÄDLER· Parts for Operating

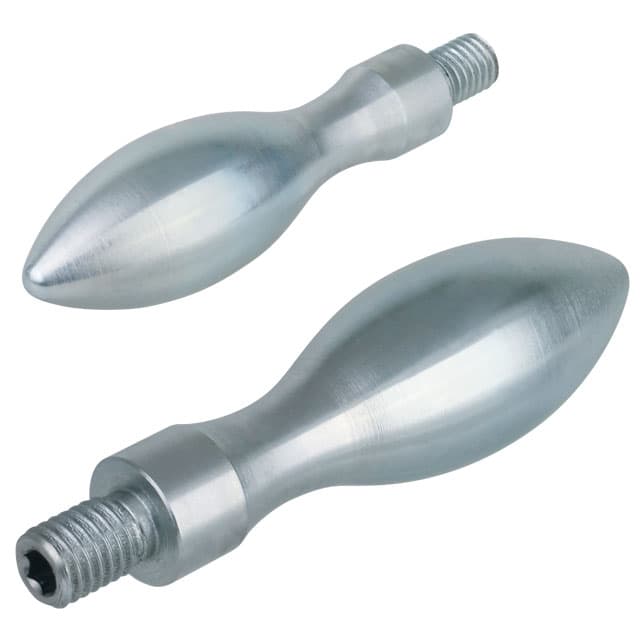

Fixed handle made from steel DIN 39 St diameter 20mm type E with thread plug M8
Manufacturer part no. 66212000
$12.91≈ 11.21 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €11.21 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.24 |
| Total delivered | €31.45 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 91 g |
Other characteristics

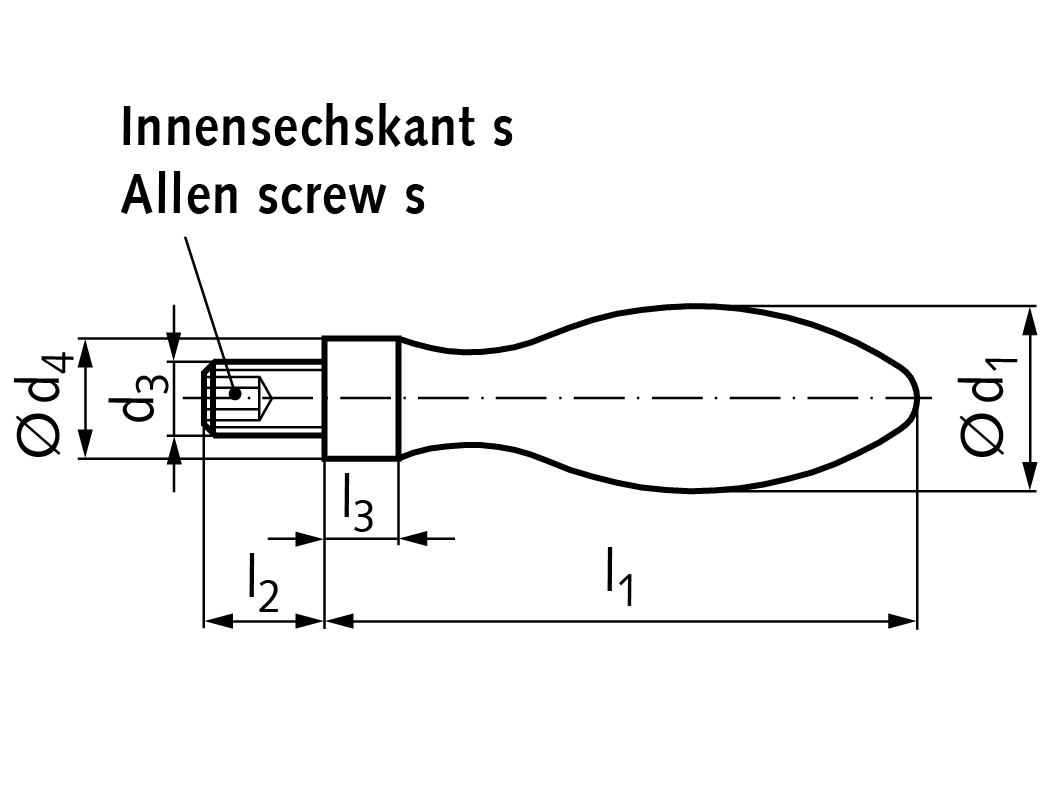

| Handle diameter | 20 mm |
| Hub diameter | 13 mm |
| Hub length | 8 mm |
| Length of handle | 64 mm |
| Screw in length | 13 mm |
| Wrench size | 4 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
Description
Material: Steel zinc-plated. Version E = with threaded bolt and Allen screw. * not according to DIN 39.
