MÄDLERMÄDLER· Parts for Operating

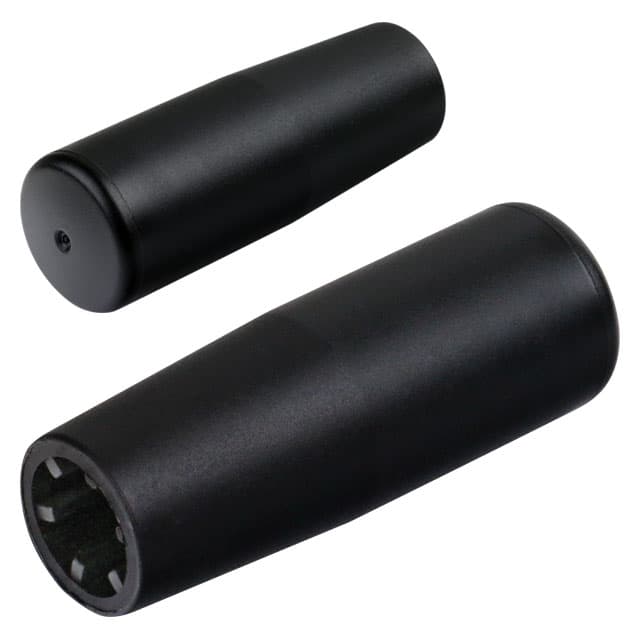

Cylindrical knop press-on-type thermoplastic (Polypropylene PP) outside diameter 18mm bore 8mm
Manufacturer part no. 66220218
$3.16≈ 2.74 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €2.74 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.55 |
| Total delivered | €21.29 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 7 g |
Other characteristics

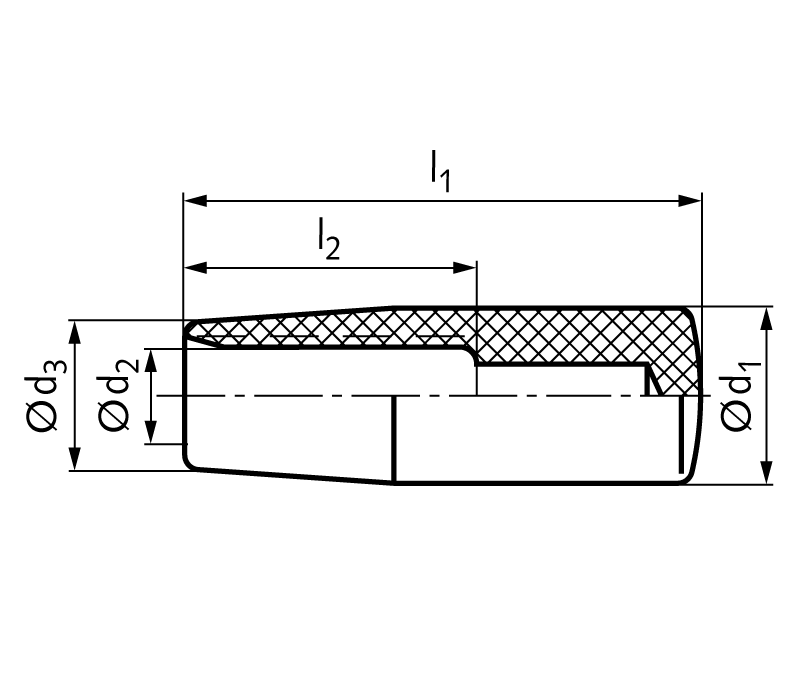

| Handle diameter | 18 mm |
| Inner diameter | 8 mm |
| Length of handle | 40 mm |
| Press on length | 28 mm |
| Material | Polypropylene (PP) |
| Surface | Matt finish |
Description
Material: Thermoplast (Polypropylene PP), impact resistant, black, matt finish. These knobs do not require a thread at the shaft. During mounting, easy blows with a soft hammer are sufficient to drive the knob into place. The shaft end with tolerance h9 should be slightly rounded or chamfered (30°). The knob is quickly mounted and sits absolute vibration-tight. Temperature resistant up to 80ºC.
