MÄDLERMÄDLER· Parts for Operating

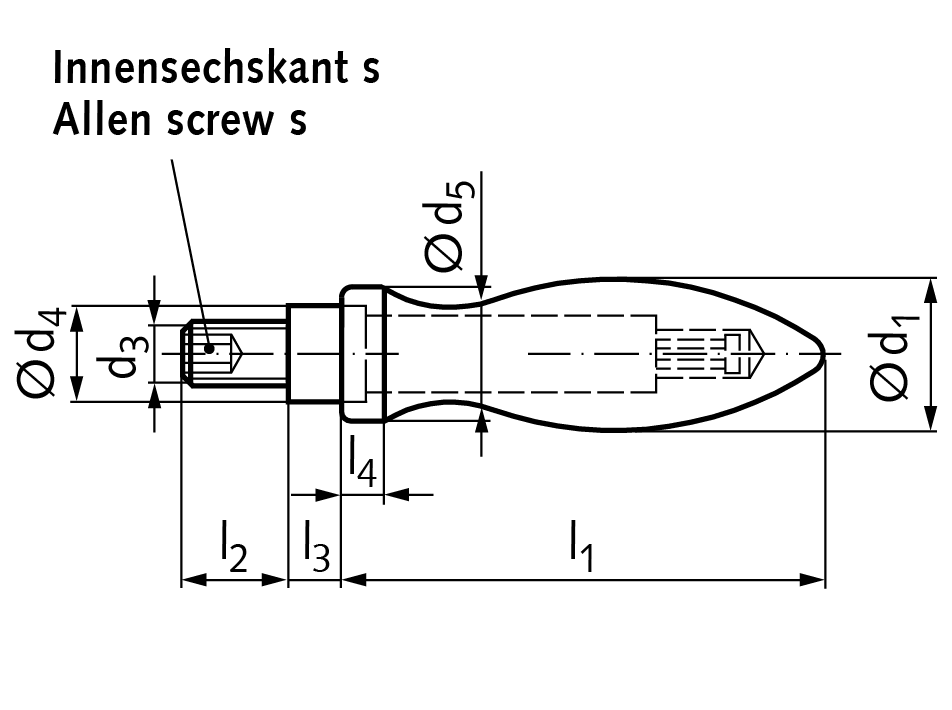

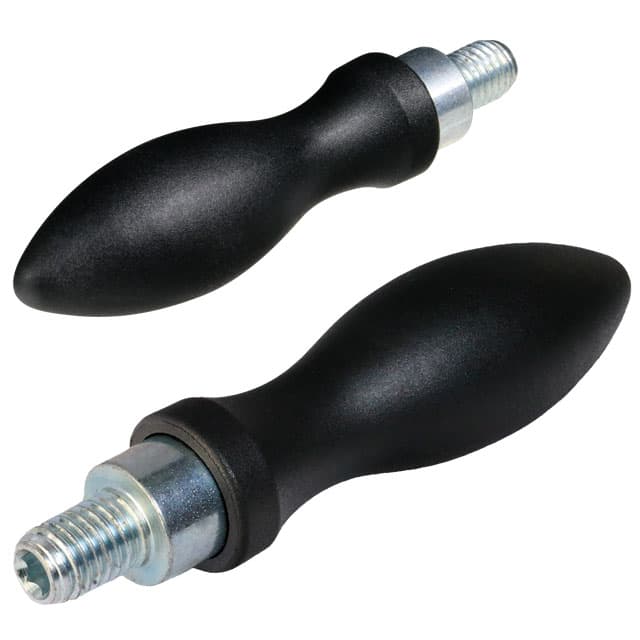

Revolving handle made from plastic DIN 98 H diameter 32mm type E with thread plug M12
Manufacturer part no. 66323200
$20.47≈ 17.78 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €17.78 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.56 |
| Total delivered | €39.34 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 144 g |
Other characteristics
| Handle diameter | 32 mm |
| Length of handle | 95 mm |
| Screw in length | 21 mm |
| Wrench size | 6 |
| Material | Polyamide (PA) / Steel |
| Surface | Matt finish / Zinc-plated |
| Thread size | M 12 mm |
Description
Material: Plastic Thermoplast (Polyamide), black, matt finish. Version E = with threaded spindle and Allen screw. Spindle: Steel, zinc-plated.
