MÄDLERMÄDLER· Parts for Operating

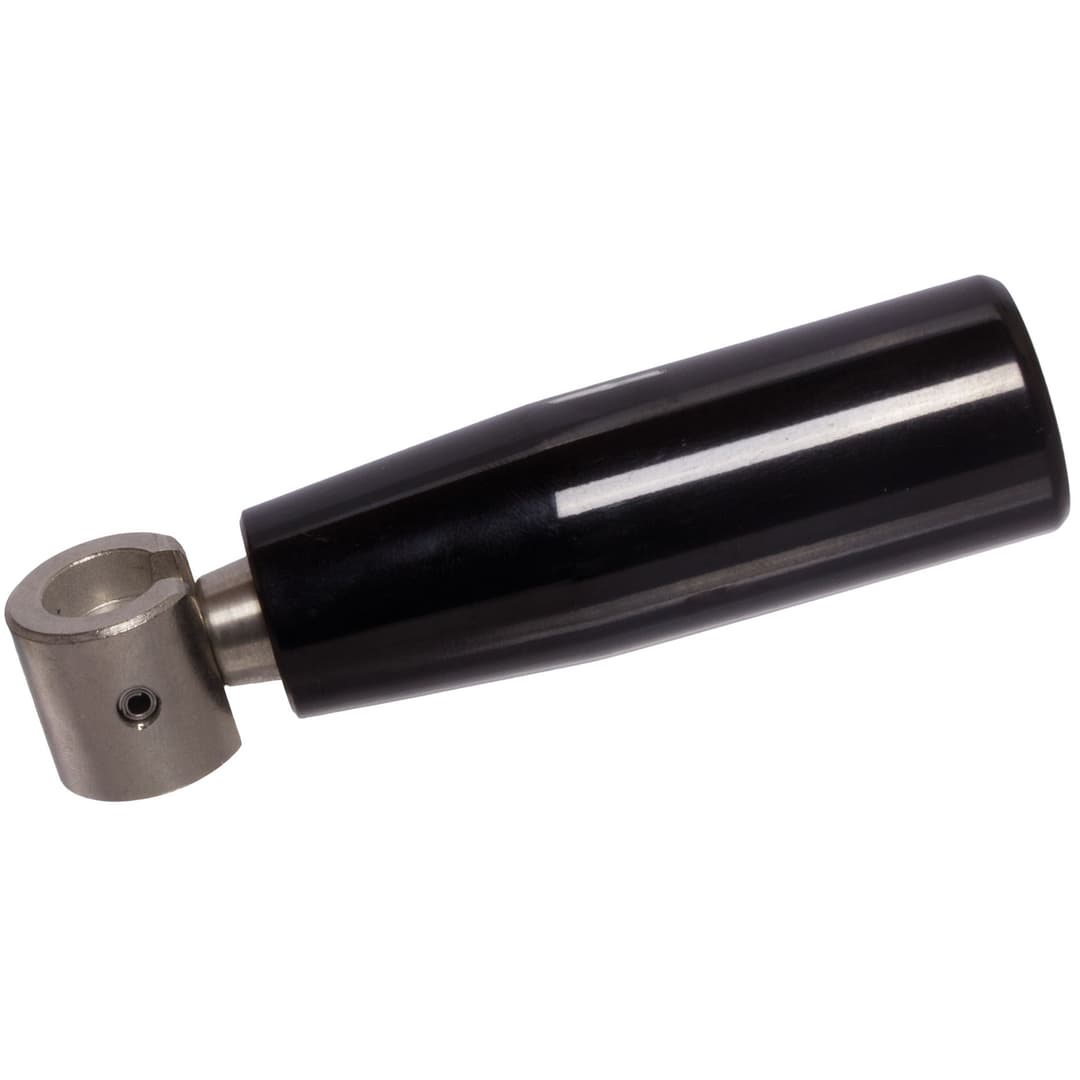

Retractable handle NG version N handle diameter 26mm made from plastic thread M6 folding mechanism stainless steel
Manufacturer part no. 66399201
$59.53≈ 51.70 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €51.70 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.34 |
| Total delivered | €80.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 134 g |
Other characteristics
| Diameter of folding part | 20 mm |
| Handle diameter | 26 mm |
| Length of folding part | 19.5 mm |
| Length to folding point | 95 mm |
| Thread length | 6 mm |
| Total length | 102 mm |
| Material | Duroplast/Stainless steel |
| Surface | Blank |
| Thread size | M 6 mm |
| Version | N |
Description
Material Version K: Grip part: Plastic Duroplast PF31, black, glossy finish. Folding mechanism: Steel, black oxide finish. Material Version N: Grip part: Plastic Duroplast PF31, black, glossy finish. Folding mechanism: Stainless steel 1.4305 (AISI 303) and 1.4404. All handles are revolving (type 598). Retractable handles are used when the handle must at times not stick out.The handle is pulled out of its taper seating and then tilted. A compression spring locks the handle in both end positions. When folded back, the handle automatically firmly locks in the taper seat.
