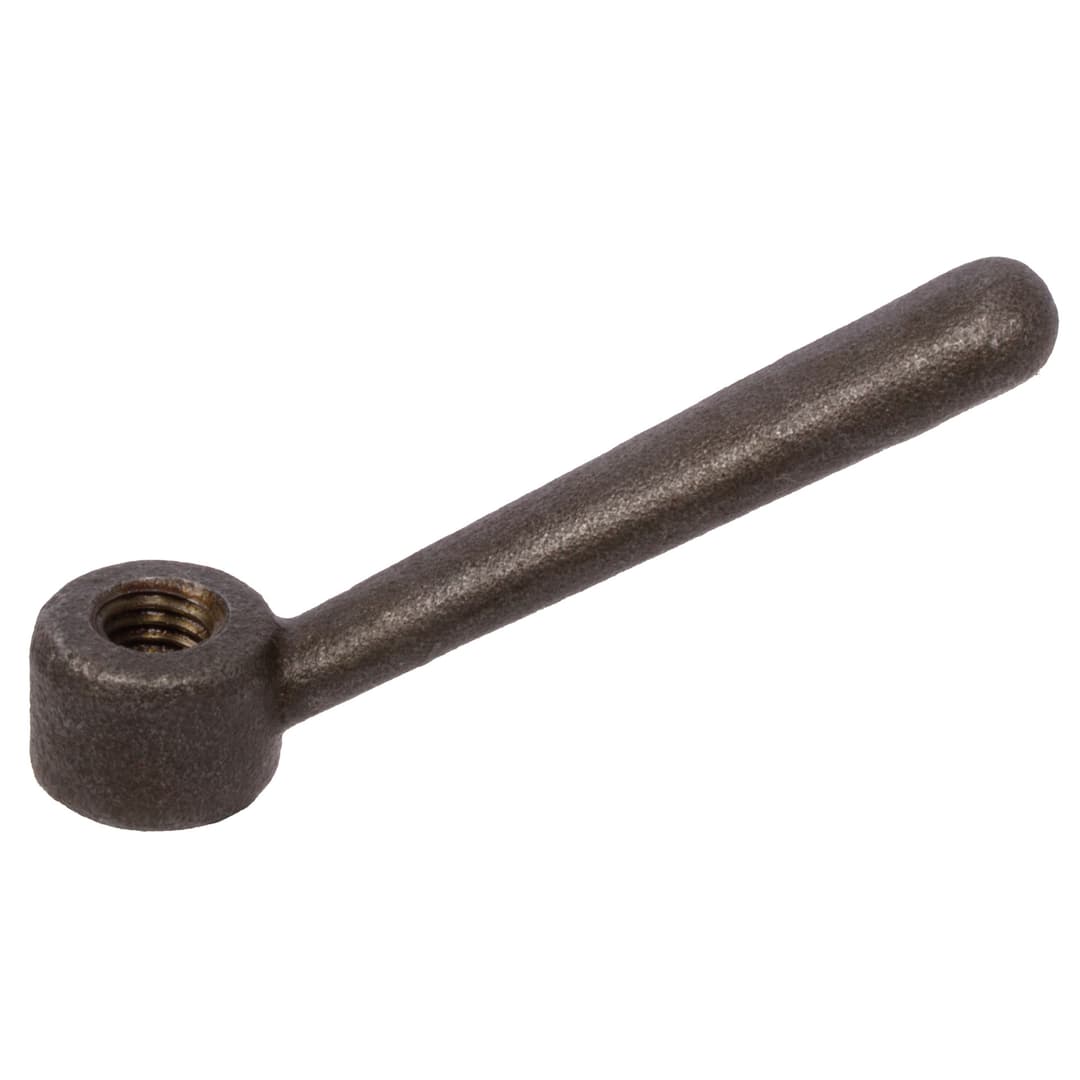

Clamping lever 202 TG diameter 40mm material malleable cast iron
Manufacturer part no. 66532000
$43.92≈ 38.14 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €38.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.63 |
| Total delivered | €63.77 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 518 g |
Other characteristics

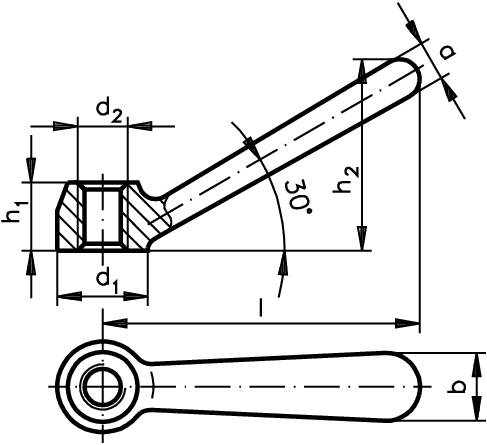

| Handle width max. | 28 mm |
| Height of clamping nut | 28 mm |
| Outer diameter of clamping nut | 40 mm |
| Radius clamping lever | 140 mm |
| Thickness of handle | 18 mm |
| Total height | 84.56 mm |
| Inner thread size | M 20 mm |
| Material | Cast steel |
| Surface | Blank |
Description
Material: Cast steel. Clamp nuts are simple and cost efficient clamping elements. Contact surface machined.
