MÄDLERMÄDLER· Parts for Operating

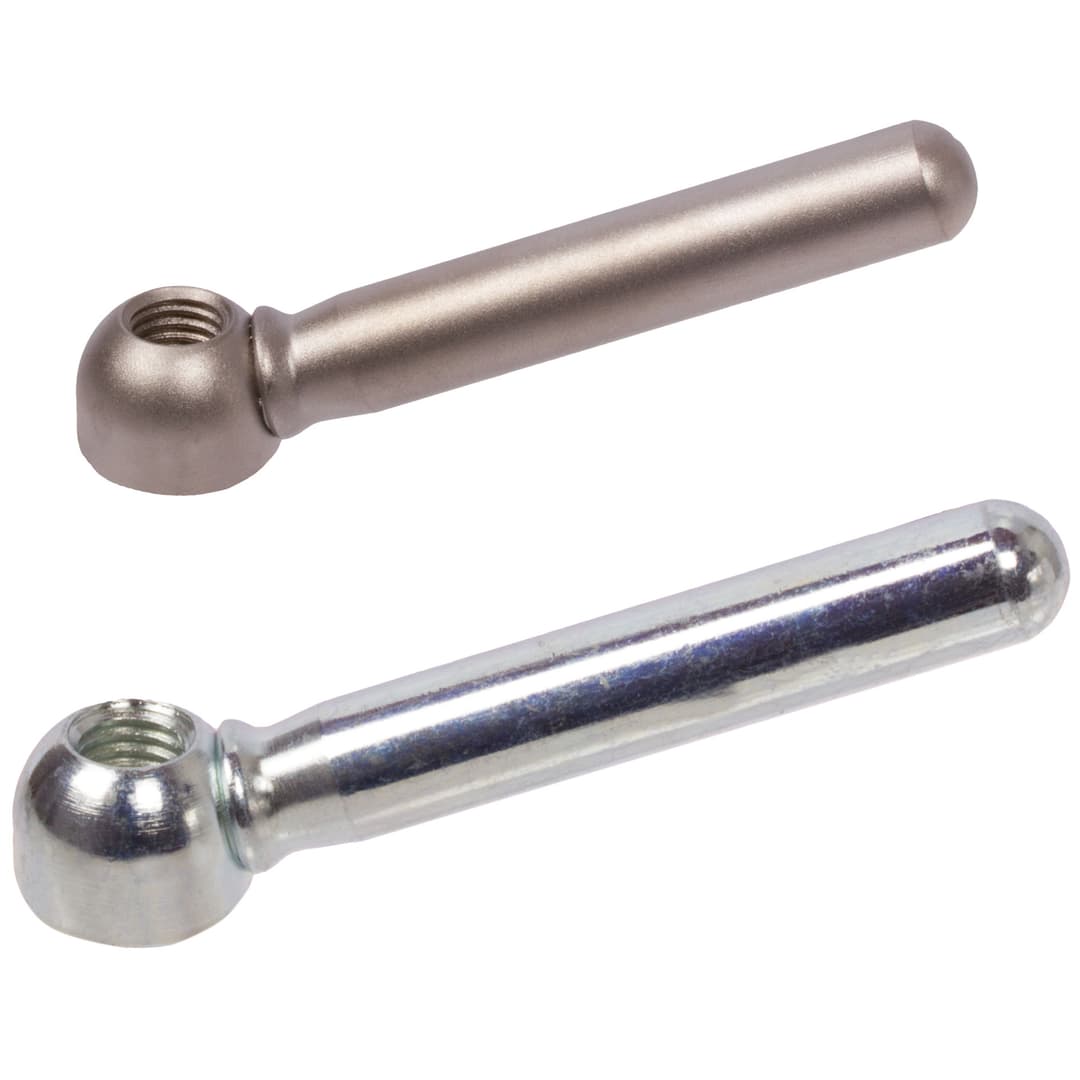

Cylindrical Clamping lever M8 steel zinc-plated
Manufacturer part no. 66540800
$7.62≈ 6.62 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €6.62 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.32 |
| Total delivered | €25.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 39 g |

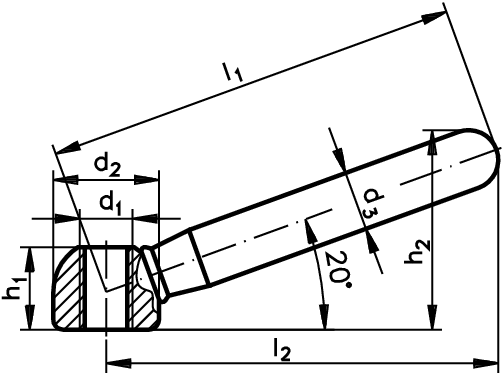

Other characteristics
| Handle diameter | 9 mm |
| Handle length to middel axis cathete | 60 mm |
| Handle length to middel axis hypotenuse | 63 mm |
| Height of clamping nut | 12.5 mm |
| Outer diameter of clamping nut | 16 mm |
| Total height | 30.5 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
Description
Material: Steel zinc plated, glossy, or stainless steel 1.4305 (AISI 303) blasted, matt finish finish. Shaft butt-welded on. These clamp nuts are a modified version of the common ball knobs DIN 99. A rationalised production process and material-saving design have made these clamp nuts an extremely cost-efficient clamping element.
