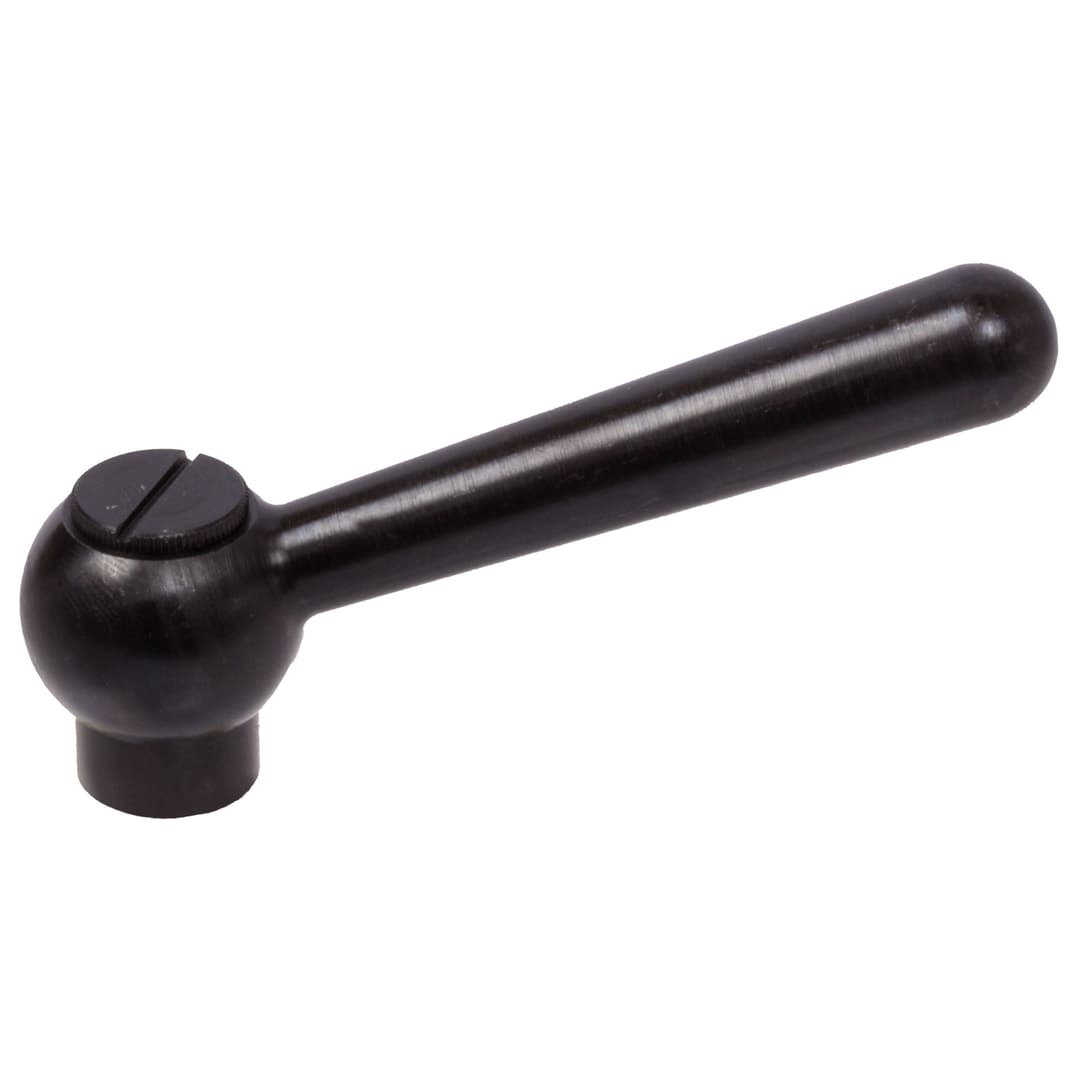

Adjustable clamping lever 119 steel black oxide finished version N ball diameter 10mm
Manufacturer part no. 66550800
$24.81≈ 21.55 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €21.55 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.31 |
| Total delivered | €43.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

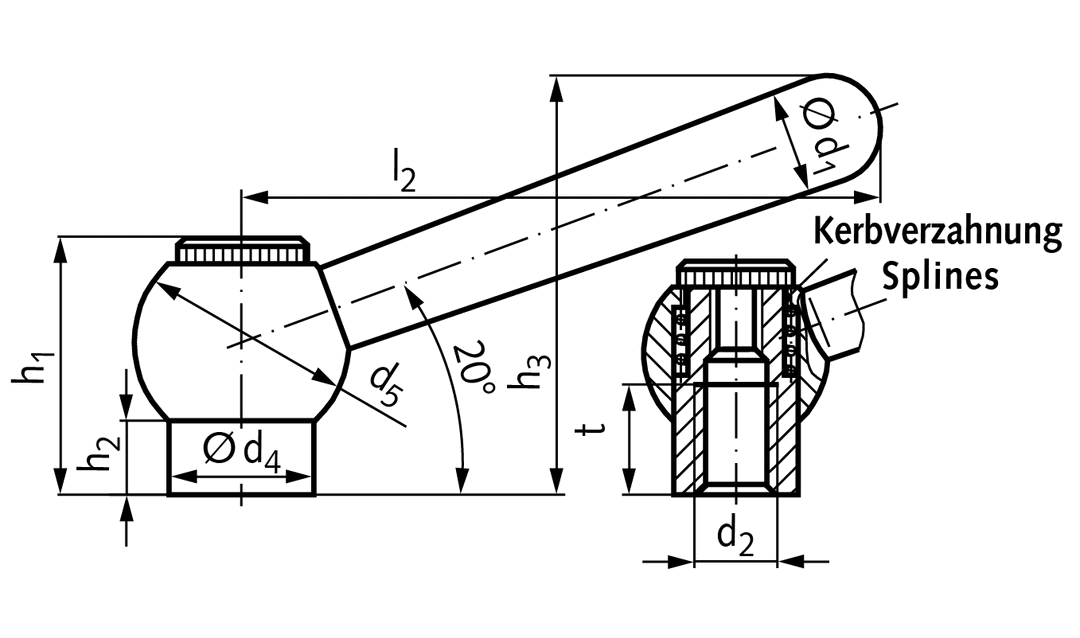

Mechanical
| Weight | 59 g |
Other characteristics
| Handle diameter | 10 mm |
| Height of clamping nut | 25 mm |
| Min length bore thread | 12 mm |
| Radius clamping lever | 60 mm |
| Total height | 39.5 mm |
| Inner thread size | M 8 mm |
| Material | Steel |
| Surface | Black oxide finish |
Description
Material: Steel, black oxide finish. Version N = handle slanted, with metric thread. Adjustable clamping levers are used in applications where either the clamping range is limited or where a specific lever position is required. The serrated bore in the spherical hub is fitted with a threaded-bolt insert, which engages in the hub with its own serrations. By depressing the clamping lever, the serrations are disengaged, freeing it for re-positioning in the most convenient position. When releasing the lever, the serrations re-engage automatically. Should a rotation of 360º not be possible, the insert can be slightly screwed in (after the lever has been disengaged) by means of the slotted knurled screw.
