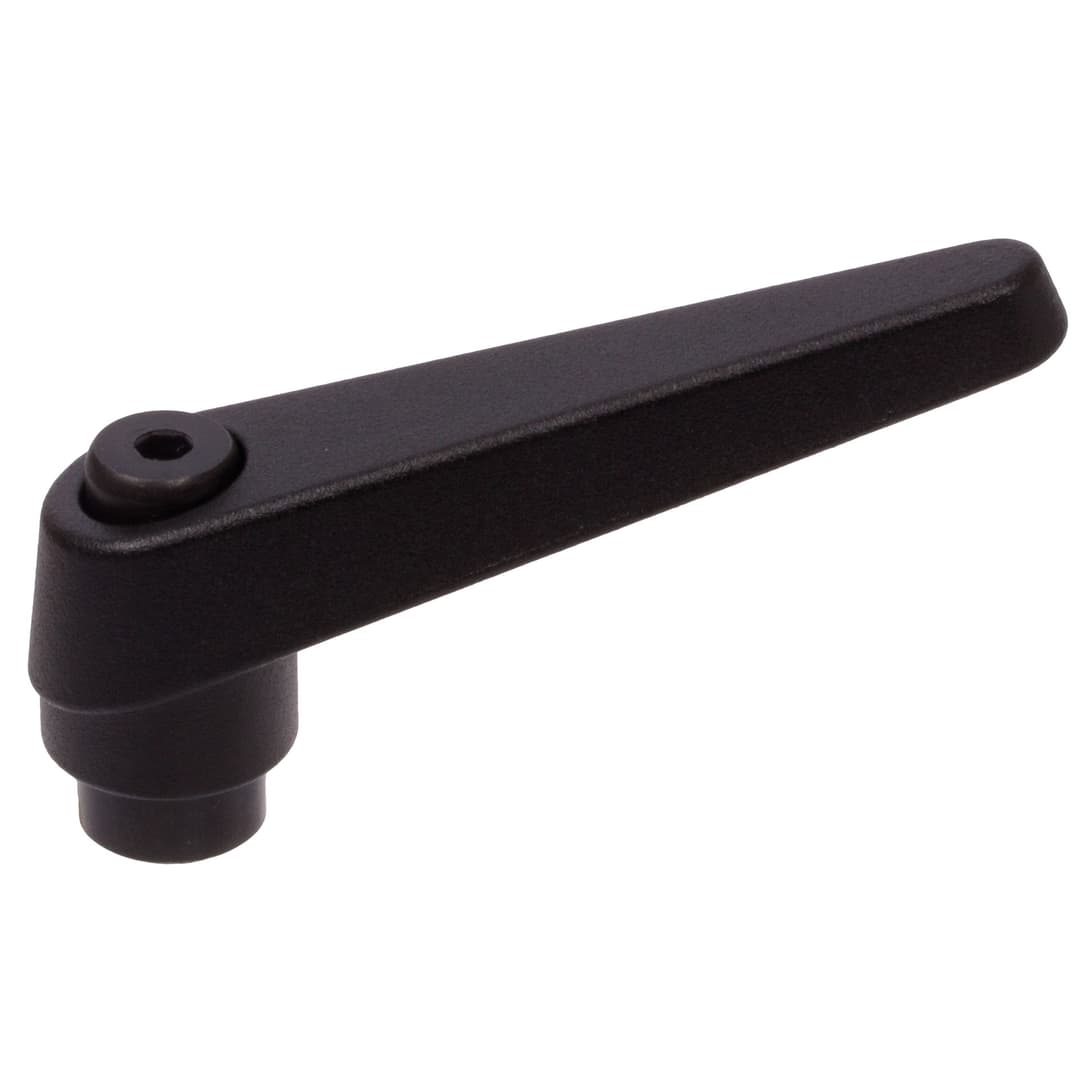

Name: Adjustable clamping lever 120 version N internal thread M8 length l2=62mm
Brand: MÄDLER
Price: 15.57 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

70 g

Other characteristics

Min length bore thread	12
Radius clamping lever	62 mm
Snap in stroke	4 mm
Total height	45 mm
Inner thread size	M 8 mm
Material	Zinc die-cast / Steel
Surface	Black oxide finish / Plastic coated

Description

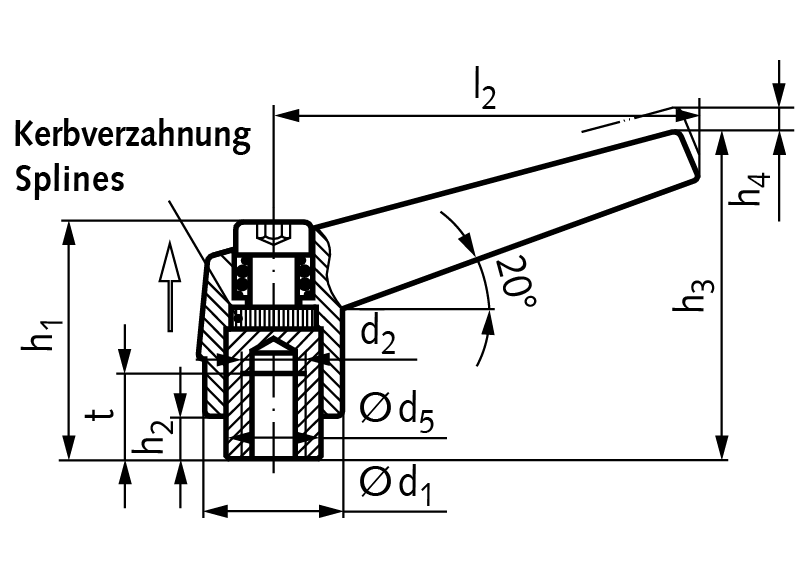

Material: Handle: Zinc die-cast. Threaded bush and locking screw: Steel, black oxide finish. Handle: plastic coated, colour black RAL 9005. Disengaged by pulling. Version N = Handle slanted, with metric-threaded bush. The clamping levers 120 have two main advantages: 1) As they are adjustable, they are very versatile in use. 2) They are designed to suit the form and appearance of modern industrial products. The threaded insert is connected to the lever via the serration and can be released by pulling Note: This clamping lever has proven ideal wherever the swivel range is limited or where a specific lever position is most convenient for the operator. The lever also features a modern design. By pulling the lever, the serrations are disengaged. Now the handle can be turned into any direction and the threaded insert can be screwed in or out by turning the locking screw. When the lever is released, the serration re-engages automatically because of the spring tension.
