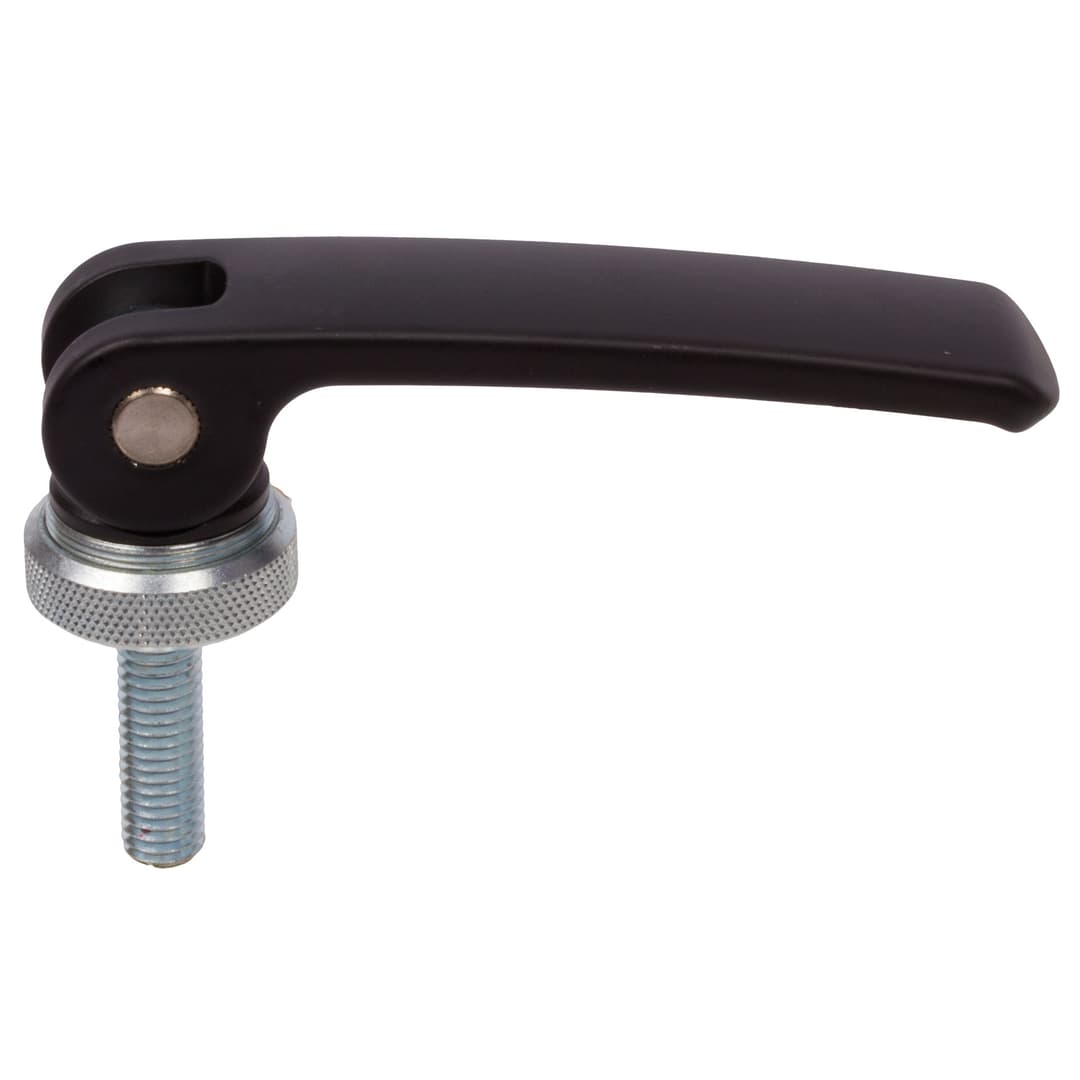

Eccentric clamp 927 Version A external thread M6 x 35
Manufacturer part no. 66576314
$22.10≈ 19.19 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €19.19 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.84 |
| Total delivered | €41.03 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 65 g |
Other characteristics

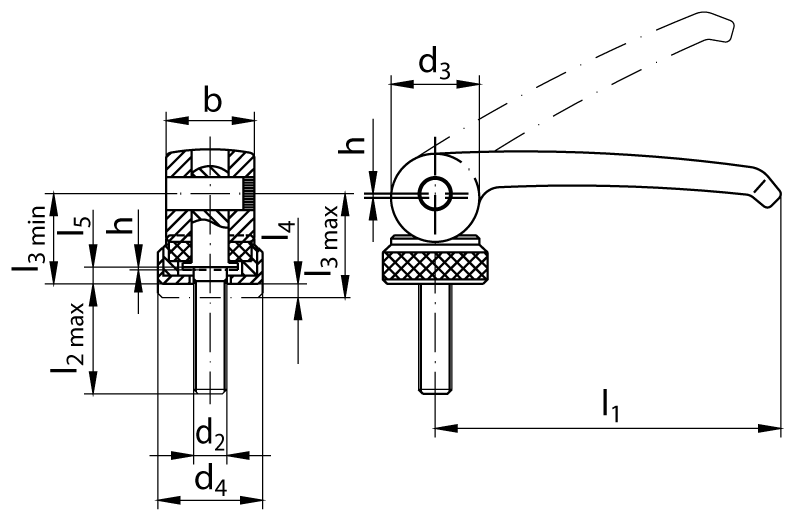

| Adjustable range | 2.5 mm |
| Center distance to mounting surface in clamping | 16.3 mm |
| Clamping distance of nut in clamping position | 3 mm |
| Diameter of folding part | 16 mm |
| Diameter of setting nut | 19 mm |
| Diameter of support surface | 18.5 mm |
| Handle width | 16 |
| Length to folding point | 63 mm |
| Max center distance to mounting surface | 18.8 mm |
| Stroke at 90 lever movement | 0.75 mm |
| Thread length | 35 mm |
| Material | Zinc die-cast |
Description
Materials: Lever: Zinc die cast, with wear-resistant epoxy resin coating, black matt. Grub screw and support Zinc-plated steel, chromated. With knurled adjustable support washer with fine thread. Thus the clamping force and the lever position can be set exactly on the lever side. For rapid clamping and loosening by hand. Clamping is made without generating a torque. Clamping force is up to 8 kN.
