MÄDLERMÄDLER· Parts for Operating

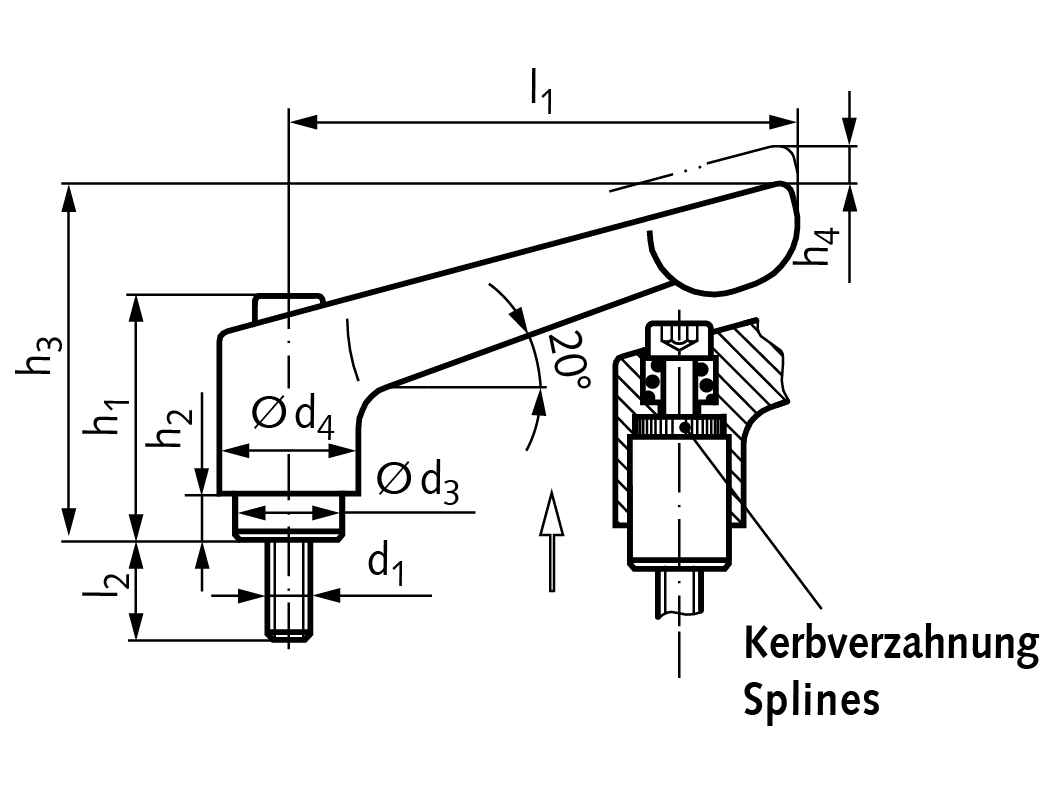

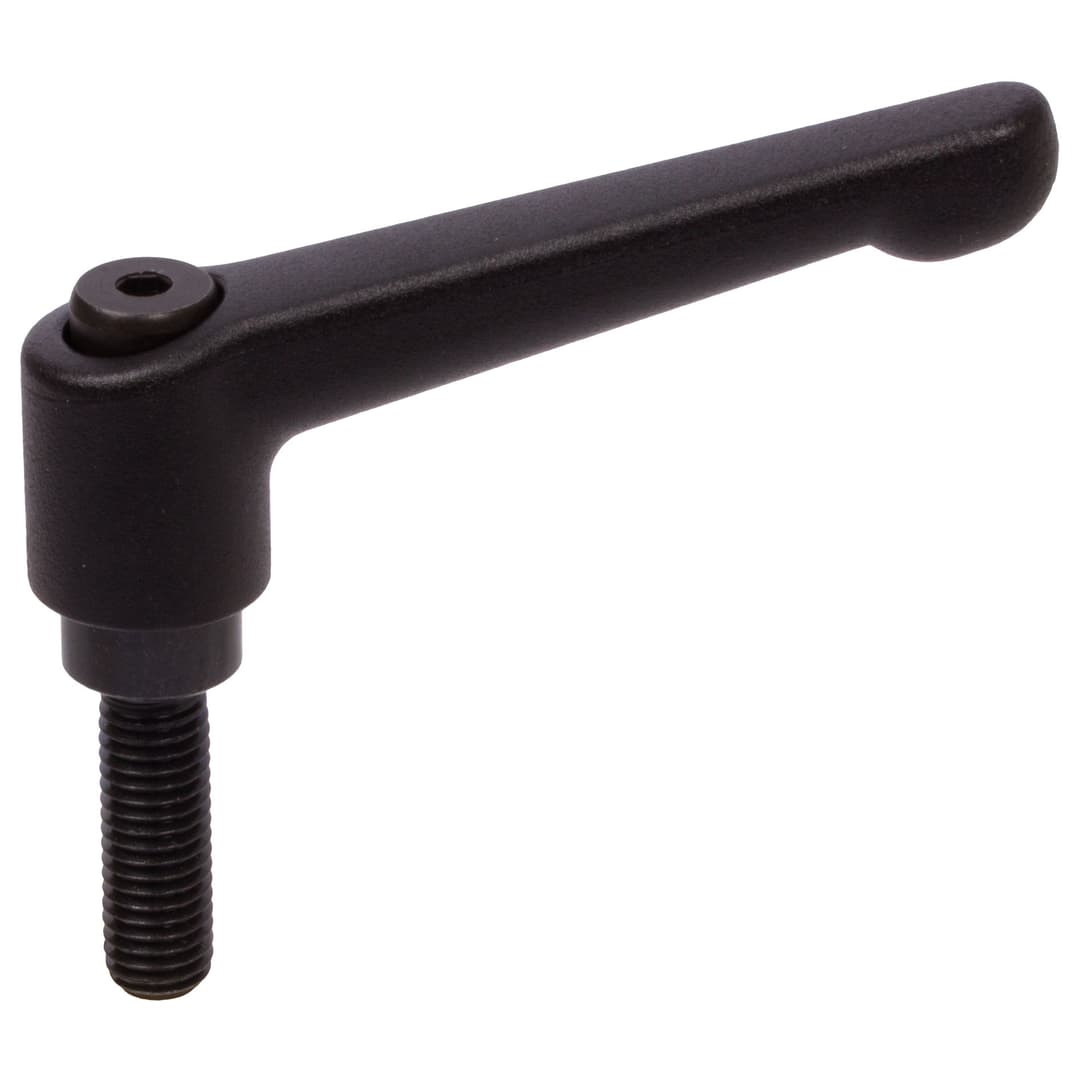

Adjustable clamping lever 300 version G with external thread M6 x 20mm lever length L1 = 45mm
Manufacturer part no. 66577620
$10.22≈ 8.88 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €8.88 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.78 |
| Total delivered | €28.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 37 g |
Other characteristics
| Radius clamping lever | 45 mm |
| Screw in length | 20 mm |
| Snap in stroke | 3.5 |
| Total height | 35 mm |
| Material | Steel / Zinc die-cast |
| Surface | Black oxide finish / Plastic coated |
| Thread size | M 6 mm |
Description
Material: Screw insert and locking screw: Steel 5.8, black oxide finish. Handle: zinc diecast. Plastic coating: black. Disengaged by pulling. These adjustable clamping levers are the result of modern industrial design, and they are easy to operate, they also meet ergonomic demands. All such levers have proven to be ideal wherever parts have to be clamped in confined spaces or in a particular lever position. The insert is connected to the lever via serrations. Pulling the lever upwards disengages the serrations, allowing the lever to be turned to the ideal clamping position. When the lever is released, the serrations automatically re-engage.
Similar products
MÄDLERIn stock

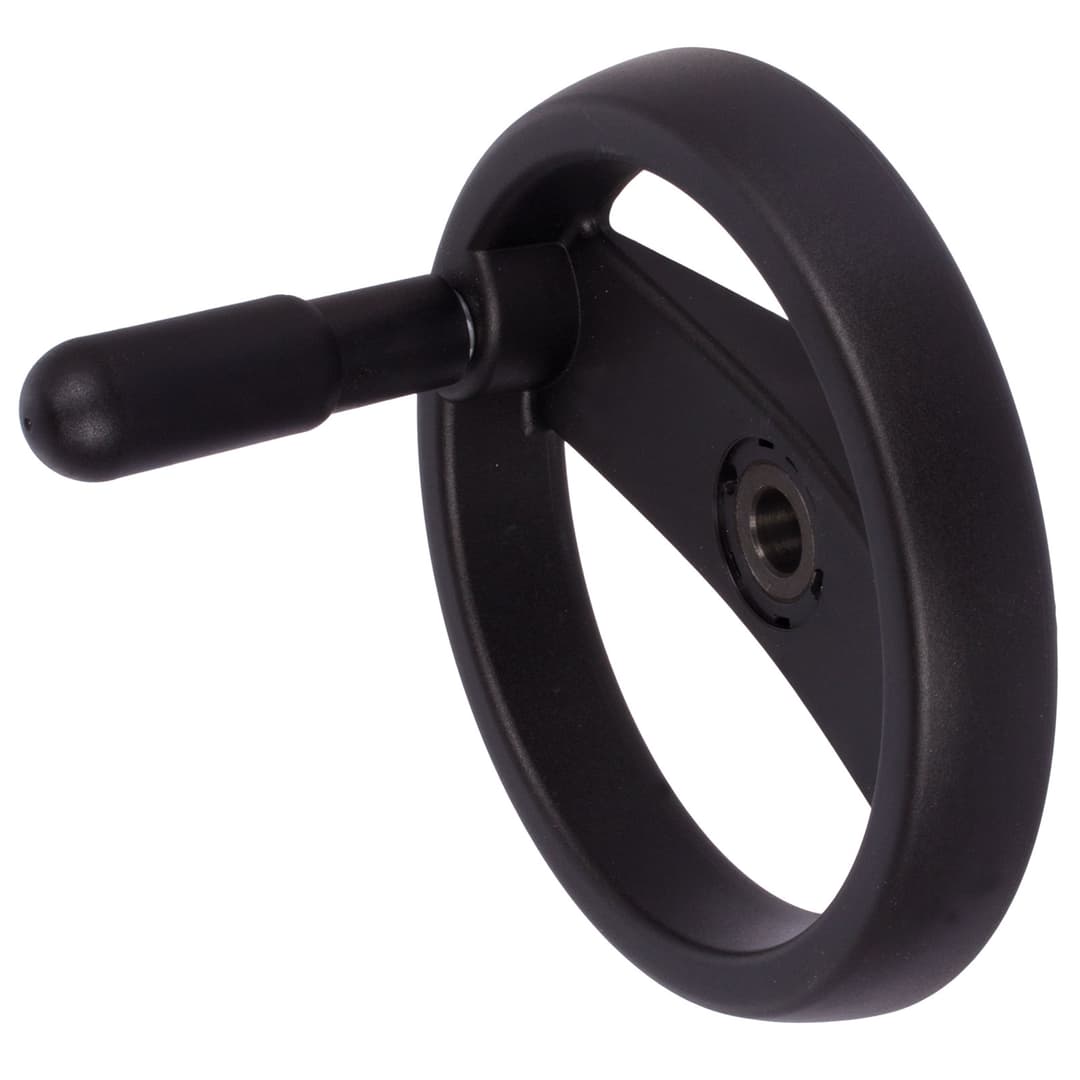

Spoked handwheel 522 made of plastic with revolving cylindrical handle diameter 200mm
