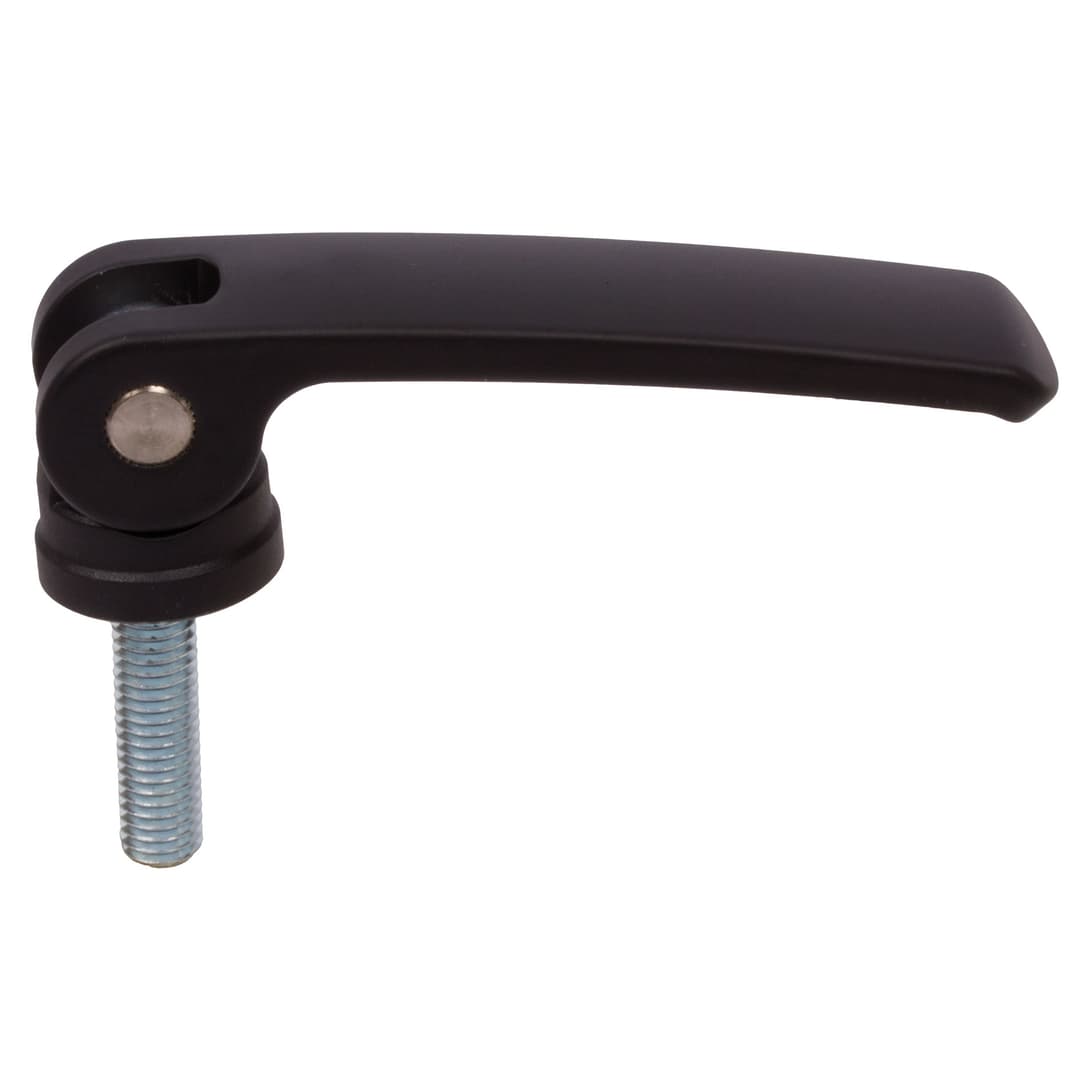

Eccentric clamp 927 Version B external thread M8 x 35
Manufacturer part no. 66578223
$18.41≈ 15.99 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €15.99 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.20 |
| Total delivered | €37.19 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 126 g |
Other characteristics

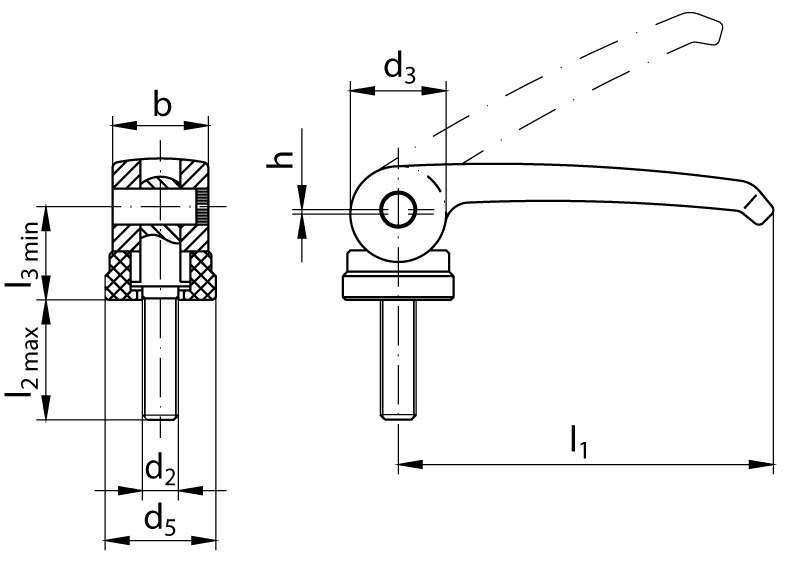

| Adjustable range | 3 mm |
| Center distance to mounting surface in clamping | 19.5 mm |
| Clamping distance of nut in clamping position | 3.7 mm |
| Diameter of folding part | 20 mm |
| Diameter of setting nut | 25 mm |
| Diameter of support surface | 22.5 mm |
| Handle width | 20 |
| Length to folding point | 82 mm |
| Stroke at 90 lever movement | 1 mm |
| Thread length | 35 mm |
| Material | Zinc die-cast |
| Surface | Epoxy resin coated |
| Thread size |
Description
Materials: Lever: Zinc die cast, with wear-resistant epoxy resin coating, black matt. Grub screw: Zinc-plated steel, chromated. Support washer: Thermoplast, glass-fibre reinforced, black matt. Non-adjustable support washer. The clamping force, can either be set on the lever side by turning the lever, or on the backside by adjusting the nut/knurled nut if present. For rapid clamping and loosening by hand. Clamping is made without generating a torque. Clamping force is up to 8 kN.
