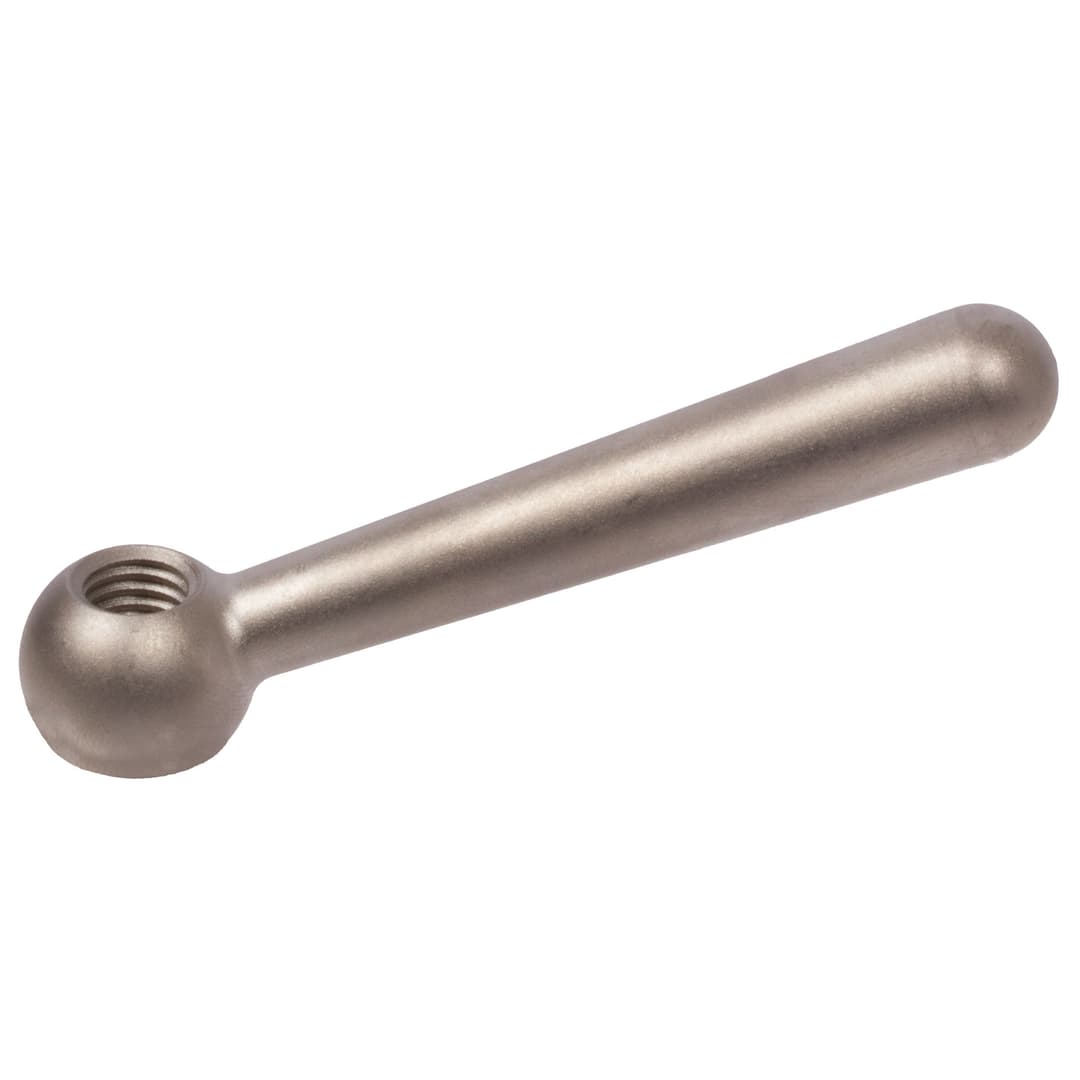

Clamping lever DIN 99 stainless diameter 10mm ball diameter 16mm
Manufacturer part no. 66599108
$16.16≈ 14.03 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €14.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.81 |
| Total delivered | €34.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 38 g |
Other characteristics
| Handle diameter | 10 mm |
| Handle length to bore axis | 60 mm |
| Hub diameter | 16 mm |
| Hub height | 12 mm |
| Total height | 30.5 mm |
| Inner thread size | M 8 mm |
| Material | Stainless steel (303) |
| Surface | Matt finish |
Description
Material: Stainless steel 1.4305 (AISI 303), matt finish blasted. Handle slanted, with metric thread.
