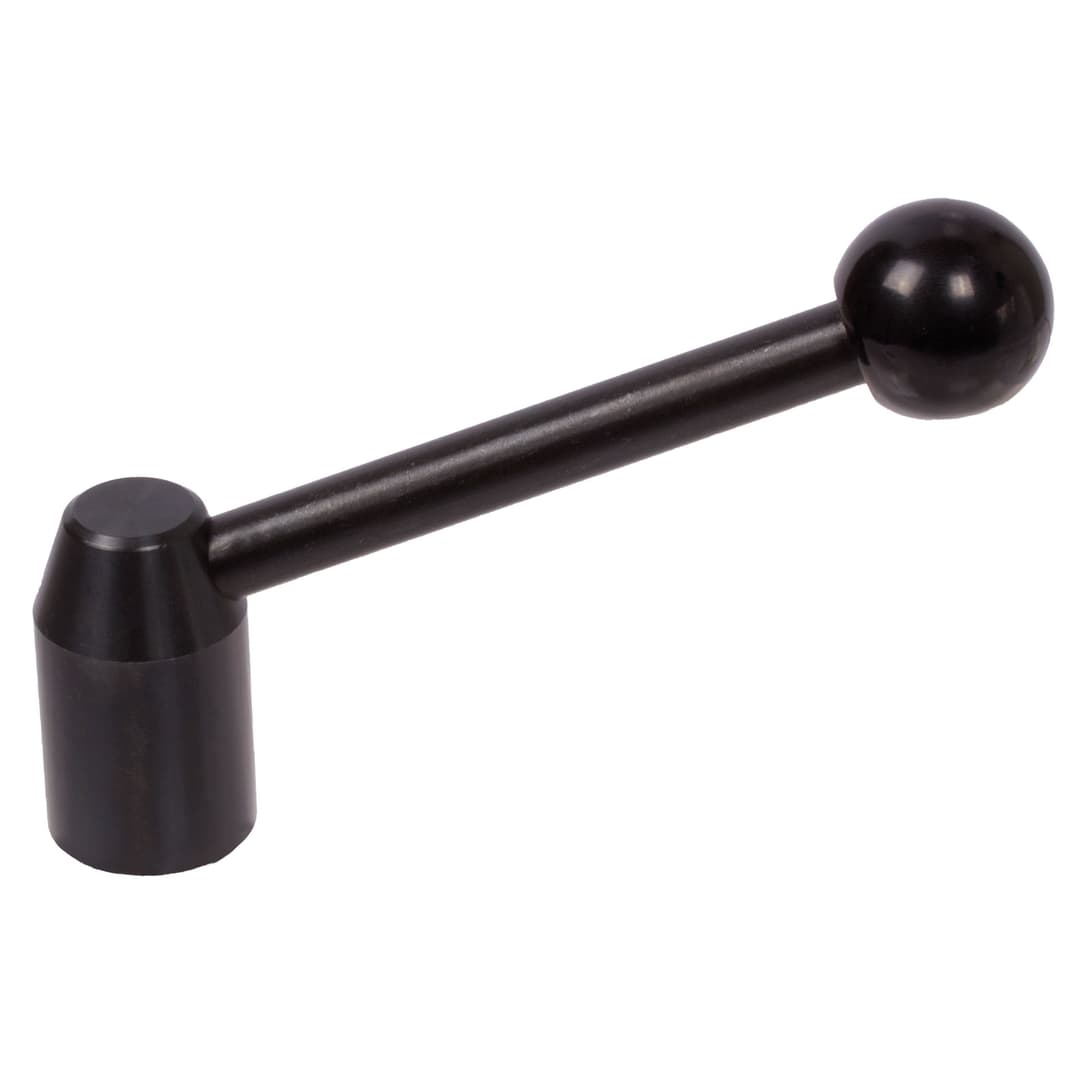

Control lever with longer hub 2120 St shape E diameter 40mm
Manufacturer part no. 66644000
$39.53≈ 34.33 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €34.33 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.87 |
| Total delivered | €59.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 709 g |
Other characteristics
| Ball diameter | 40 mm |
| Diameter of support surface | 40 mm |
| Handle diameter | 16 mm |
| Min length bore thread | 27 mm |
| Radius clamping lever | 152 mm |
| Inner thread size | M 20 mm |
| Material | Steel / Plastic |
| Surface | Black oxide finish |
Description

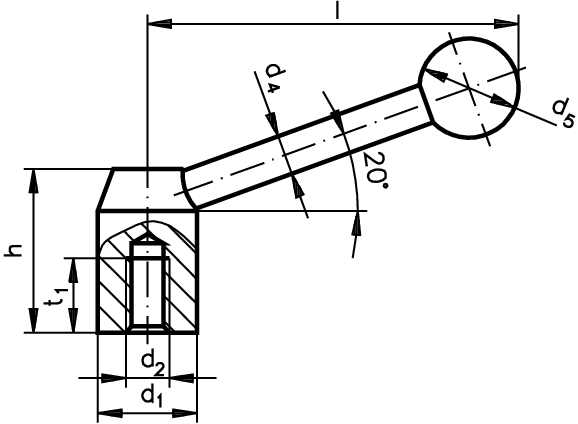

Material: Steel, precision turned and black oxide finished. Ball knob made from plastic. Version E = lever slanted with thread.
