MÄDLERMÄDLER· Parts for Operating

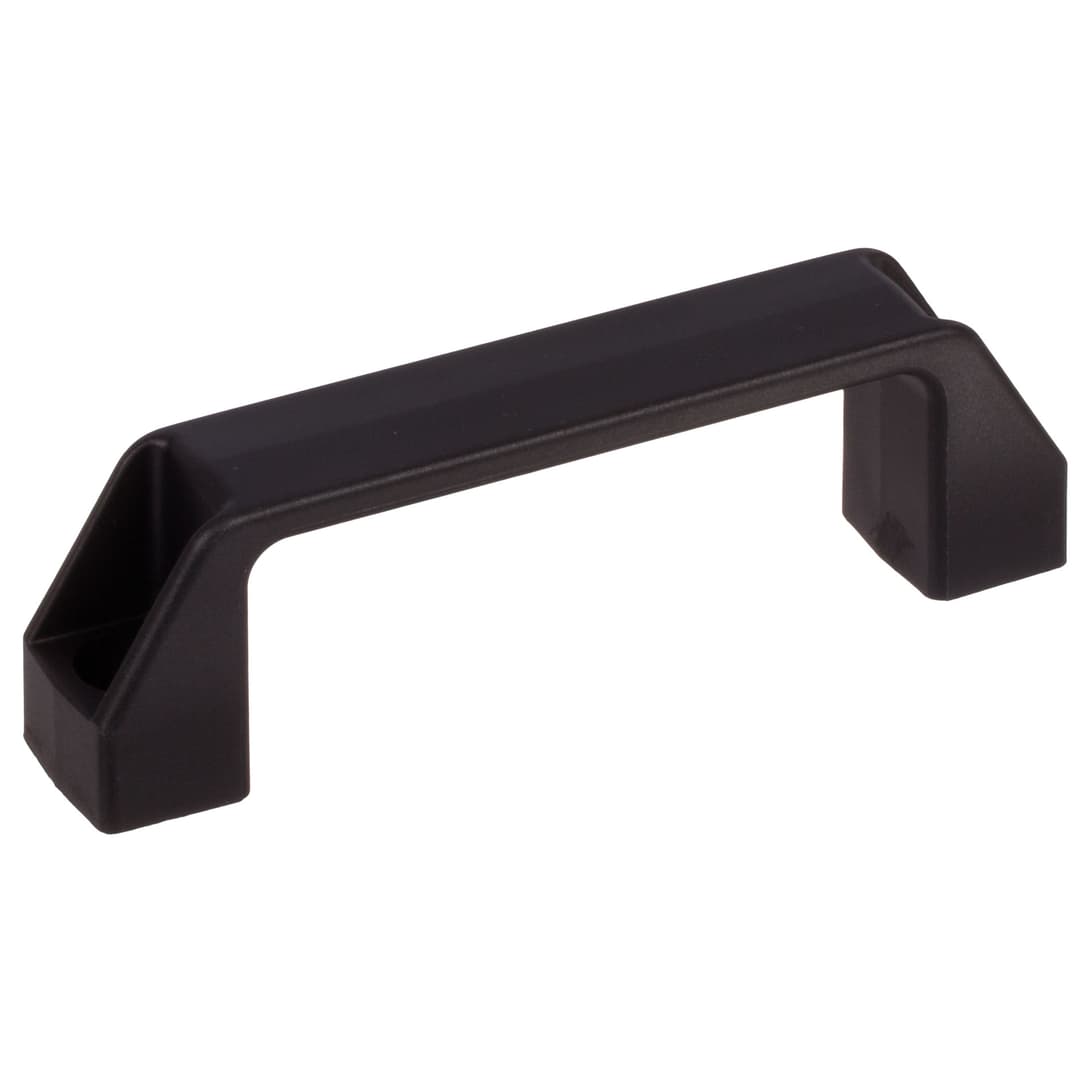

Cabinet U handle 528 length 94mm material PP
Manufacturer part no. 66654000
$5.90≈ 5.12 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €5.12 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.02 |
| Total delivered | €24.14 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 26 g |
Other characteristics

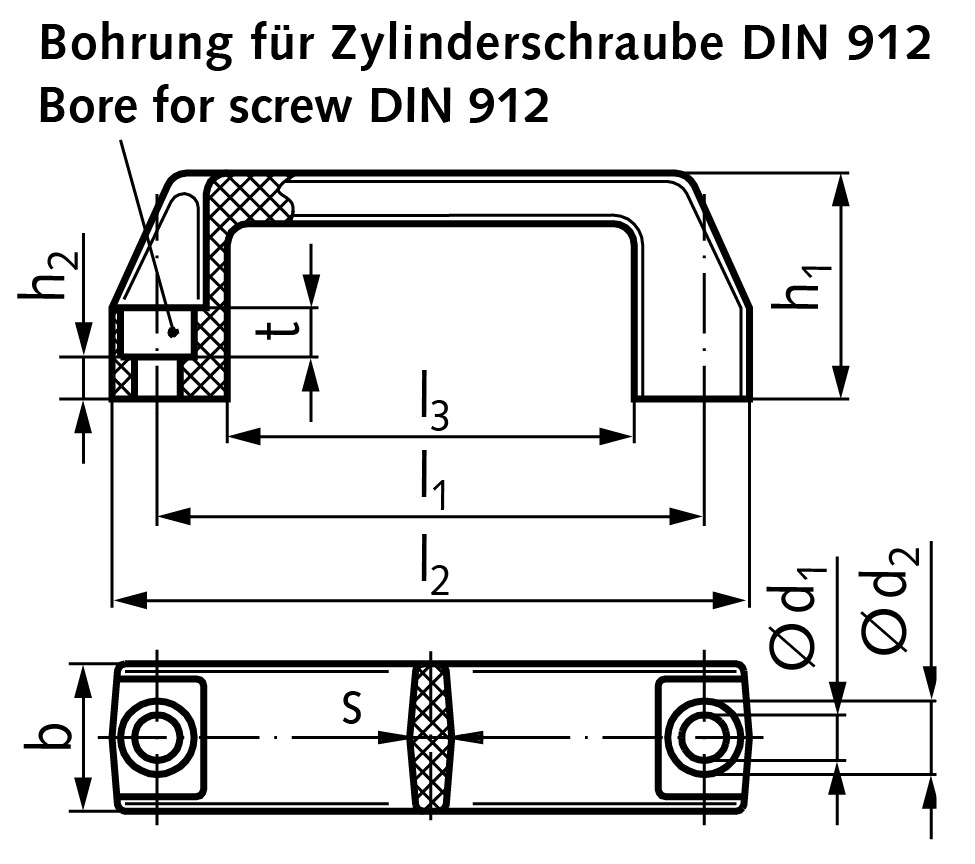

| Bore diameter for threads | 6.5 mm |
| Handle thickness | 6 mm |
| Head diameter of holes | 10.5 mm |
| Height of head from holes | 7 mm |
| Height up to head diameter | 6 mm |
| Length between the feets | 74 mm |
| Total height | 38 mm |
| Total length | 109 mm |
| Width | 21 mm |
| Material | Polypropylene (PP) |
| Mounting hole center distance | 94 -1.0 mm |
| Surface | Blank |
Description
Material: Version Plastic (PA): Thermoplast (Polyamide), glass-fibre reinforced, black. Temperature resistant up to 150° C. Version Plastic (PP): Thermoplast (Polypropylene), glass-fibre reinforced, black. Temperature resistant up to 100°C. Cabinet handles 528 are mounted from the operating side with socket-head cap screws. Cabinet handles in the PP (Polypropylene) version are cost efficient elements which usually still meet all requirements.
