MÄDLERMÄDLER· Parts for Operating

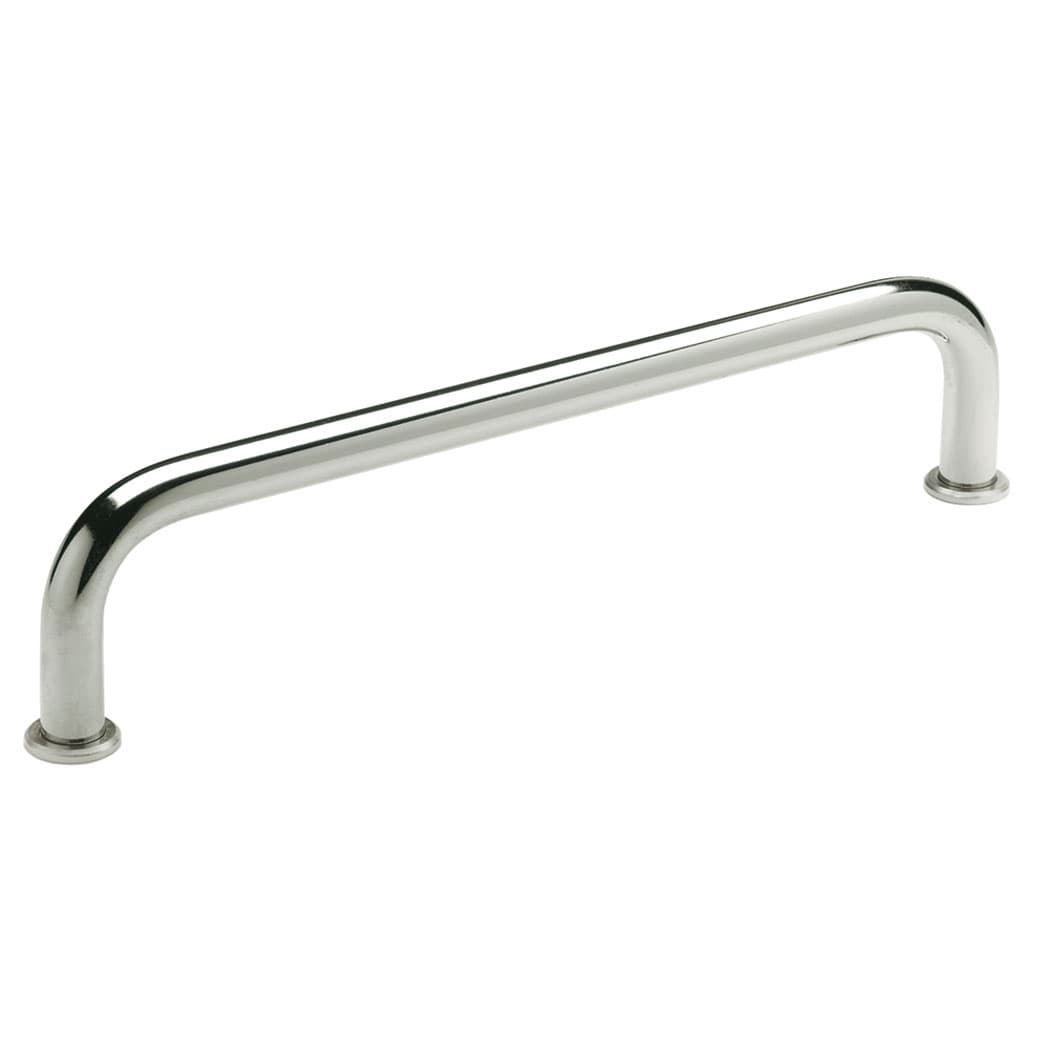

Cabint U handle 425 CR length 235mm material steel chrome plated
Manufacturer part no. 66662300
$15.34≈ 13.32 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €13.32 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.66 |
| Total delivered | €33.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

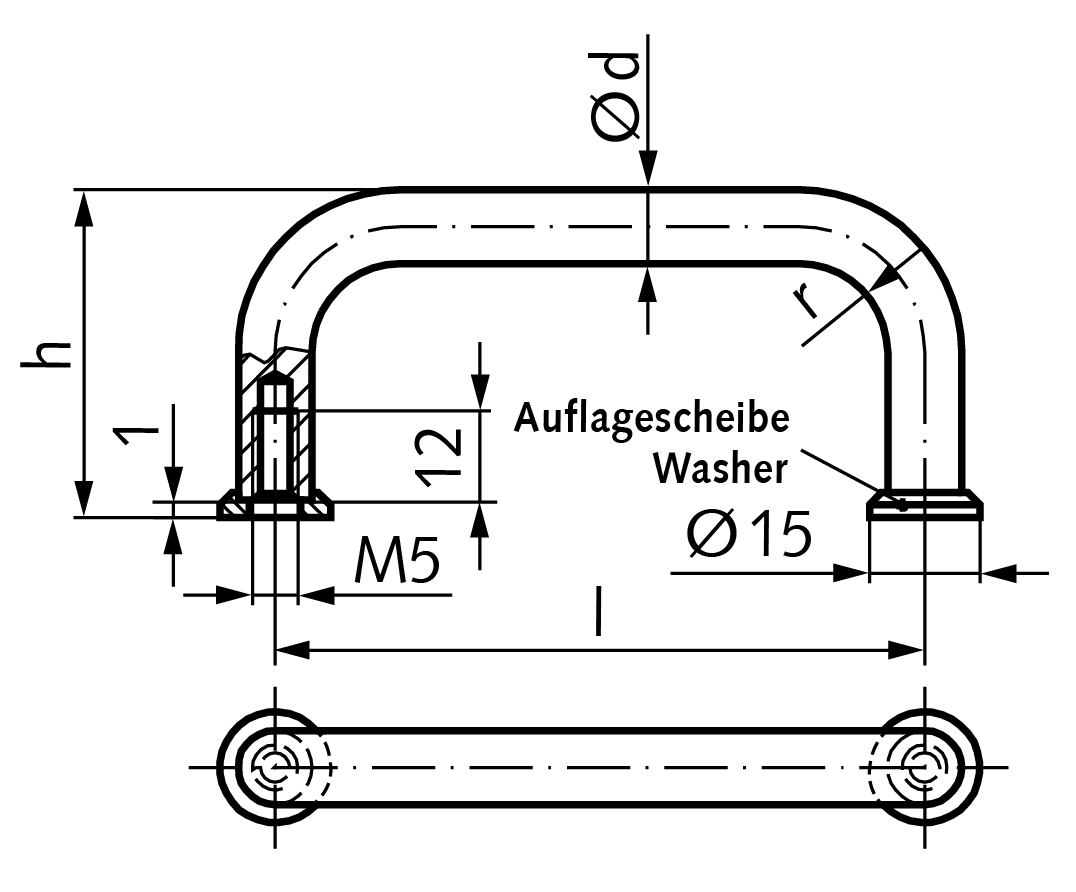

Specifications (automatically extracted)
Mechanical
| Weight | 181 g |
Other characteristics
| Handle diameter | 10 mm |
| Mounting hole center distance | 235 mm |
| Radius | 12 mm |
| Total height | 42 mm |
| Material | Steel |
| Surface | Chrome-plated |
Description
Material: Steel, chrome plated. Washers zinc die-cast, nickel-plated. Supplied with two washers. These discs guarantee perfect positioning even with large bores in the cabinet. The washers are loosely packed.
