Cabinet U handle 565.1 length 164mm material aluminium
Manufacturer part no. 66666400
$23.13≈ 20.09 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €20.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.02 |
| Total delivered | €42.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

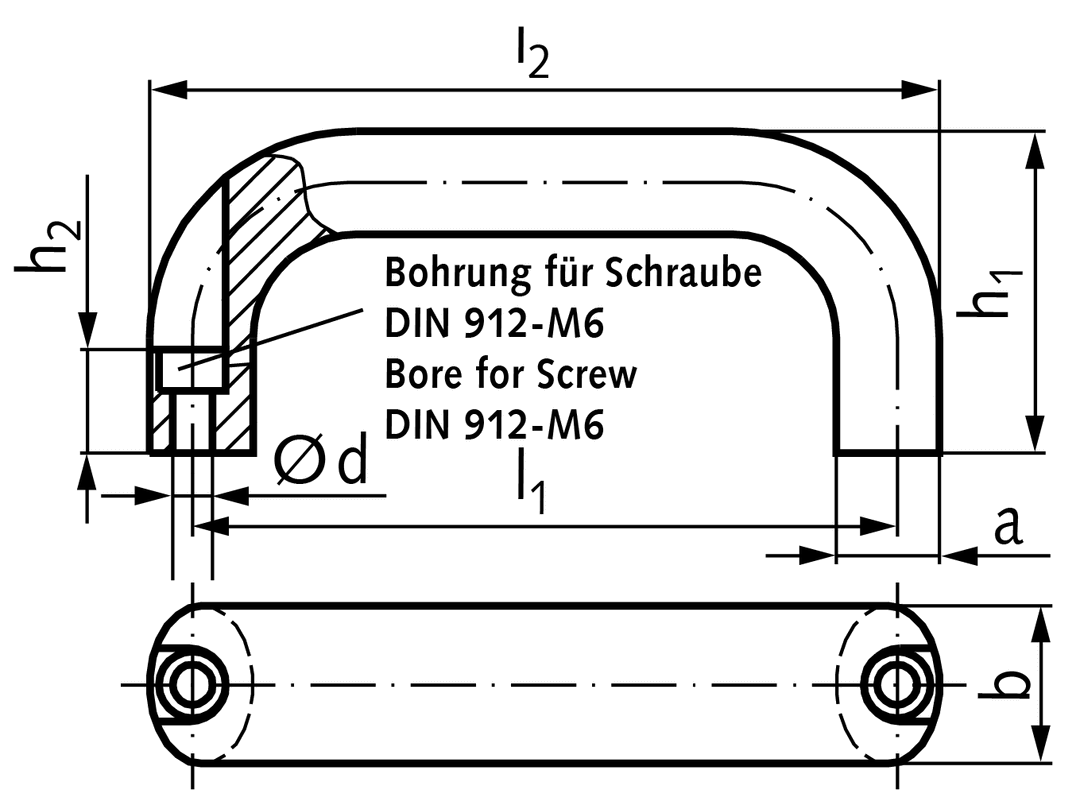

Specifications (automatically extracted)
Mechanical
| Weight | 197 g |
Other characteristics
| Bore diameter | 6.4 mm |
| Foot width | 17 mm |
| Handle width | 26 mm |
| Mounting hole center distance | 164 mm |
| Radius | 17 mm |
| Total height | 57 mm |
| Total length | 178 mm |
| Material | Aluminum |
| Surface | Plastic coated, matt finish |
Description
Material: Aluminium plastic coated, matt finish, black RAL 9011. Cabinet U-handles 565.1 are a further development of the cabinet U-handles 565. They allow the handles to be mounted from the operating side. Drawn from profiled aluminium extrusions, their special features are rigidity and smooth surface. Good design and ergonomical shape were essential factors when choosing this profile.
