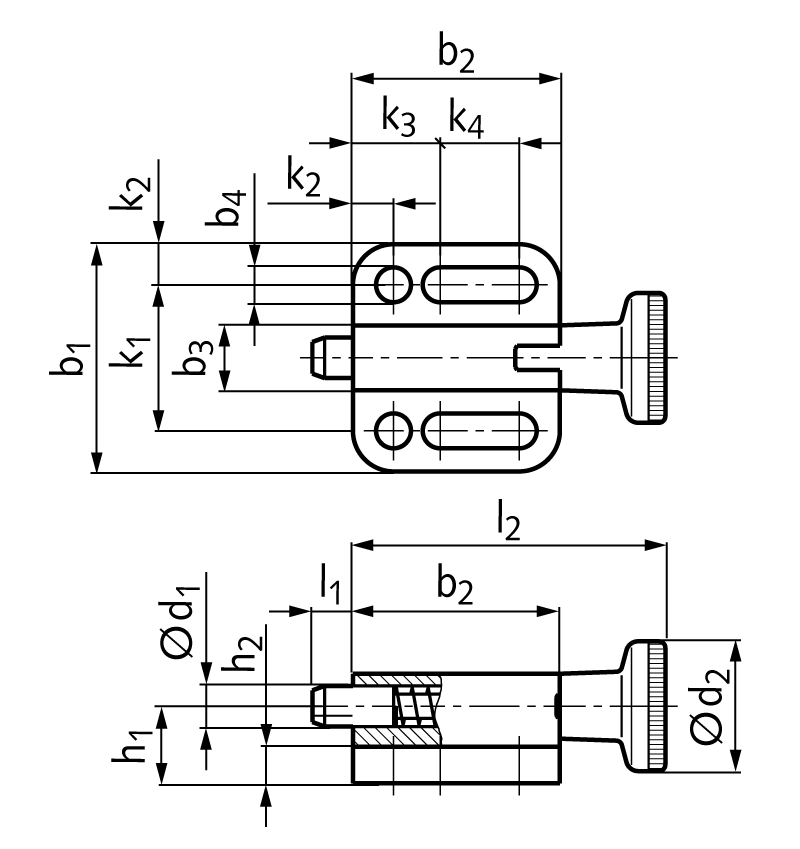

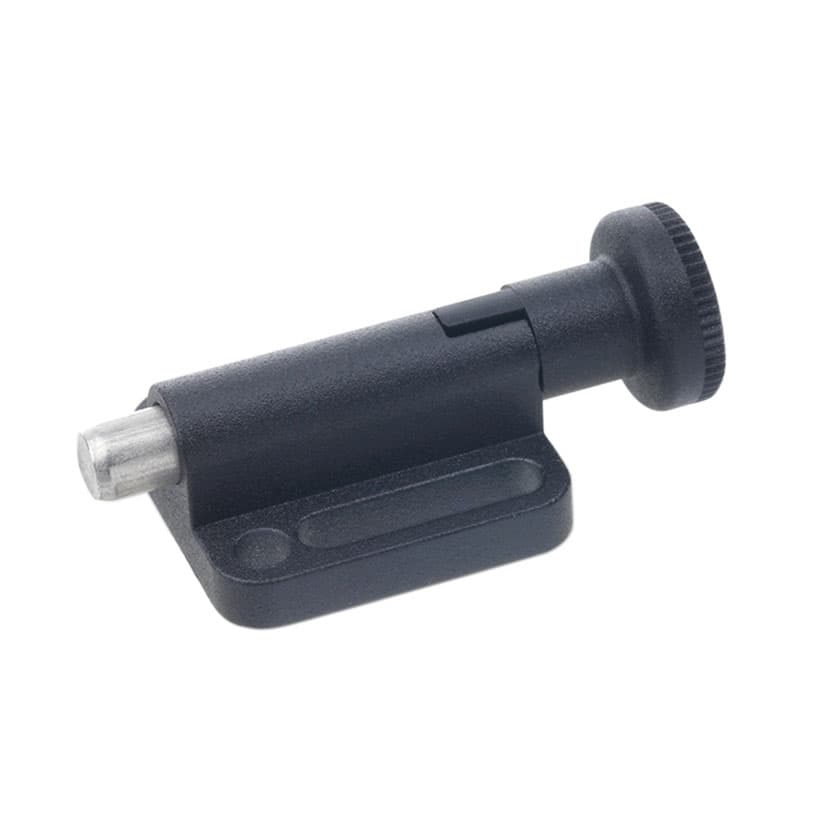

Index plunger 417 type C with rest position with knob plunger diameter 8mm
Manufacturer part no. 66668208
$11.52≈ 10.00 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €10.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.00 |
| Total delivered | €30.00 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 66 g |
Other characteristics
| Bolt diameter | 8 mm |
| Knob diameter | 21 mm |
| Length | 37.5 mm |
| Spring load end | 22 N |
| Spring load inital | 6 N |
| Width | 34 mm |
| Material | Zinc die-cast / Stainless steel |
| Shape | C |
| Surface | Plastic coated, matt finish |
Description
Material: Housing zinc die-cast, plastic coated black, textured finish. Plunger pin: Stainless steel 1.4305. Spring and lifting ring (type A): Stainless steel 1.4310. Knob (type B): Plastic (Polyamide PA) black, matt finish, not removable. Indexing Plungers without rest position are used where, on releasing the knob or lifting ring, the plunger pin should be returned to its initial position by the spring force. Type C: with rest position, with lifting ring.
