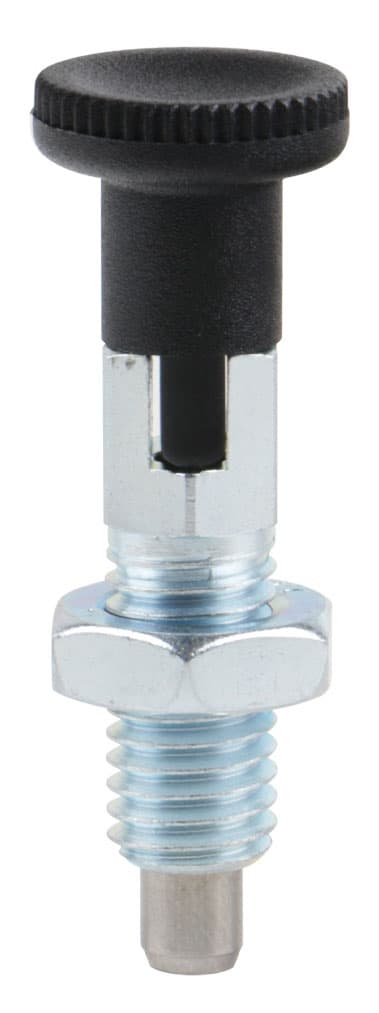

Index plunger 717 type C pin diameter 6mm thread M12x1,5
Manufacturer part no. 66671761
$10.05≈ 8.73 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €8.73 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.75 |
| Total delivered | €28.48 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 27 g |
Other characteristics
| Bolt diameter | 6 mm |
| Bolt overhang | 6 mm |
| Knob diameter lifting ring | 21 mm |
| Screw in length | 20 mm |
| Spring load end | 21 N |
| Spring load inital | 5 N |
| Thread length | 16.5 mm |
| Tightening torque | 38 Nm |
| Total length | 49 mm |
| Wrench size | 12 mm |
| Material | Steel / Plastic |
| Shape | C |
| Surface | Zinc-plated |
| Thread size |
Description

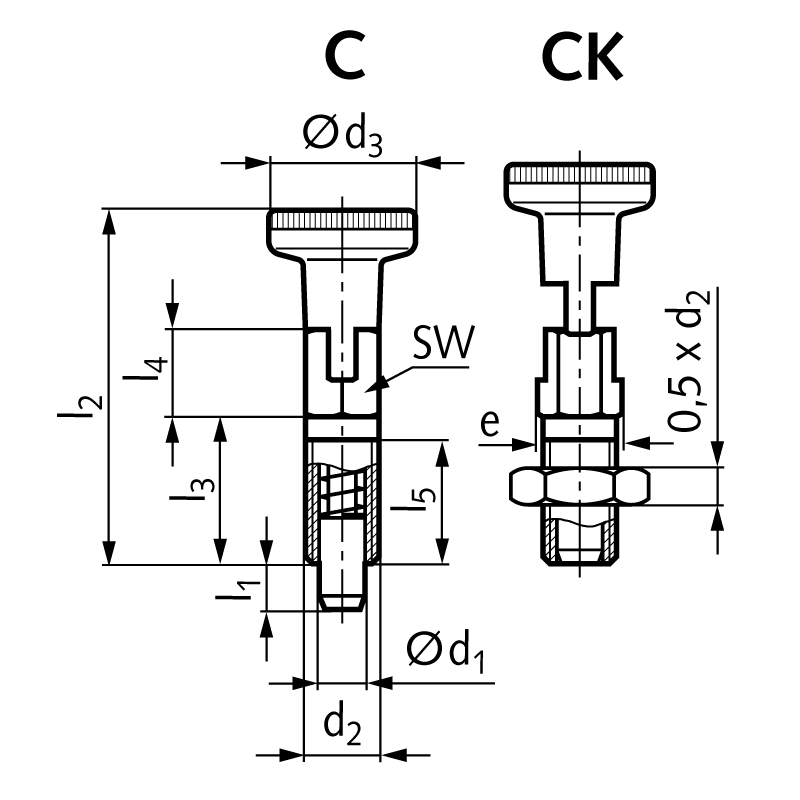

Material: Body zinc plated, blue passivated. Plunger pin stainless steel 1.4305. Spring stainless steel 1.4310. Knob (type B/BK) plastic (Polyamide PA) black, matt finish, not removable. Indexing plungers 717 are reasonably priced, with small dimensions, for applications where high precision indexing is not required. Indexing Plungers with rest position are used where the pin has to remain in retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notched catch stops the locked-in knob from returning to its initial position accidentally or due to vibration. Type C: with rest position, with knob, without counter nut. Type CK: with rest position, with knob ring, with counter nut.
