MÄDLERMÄDLER· Parts for Operating

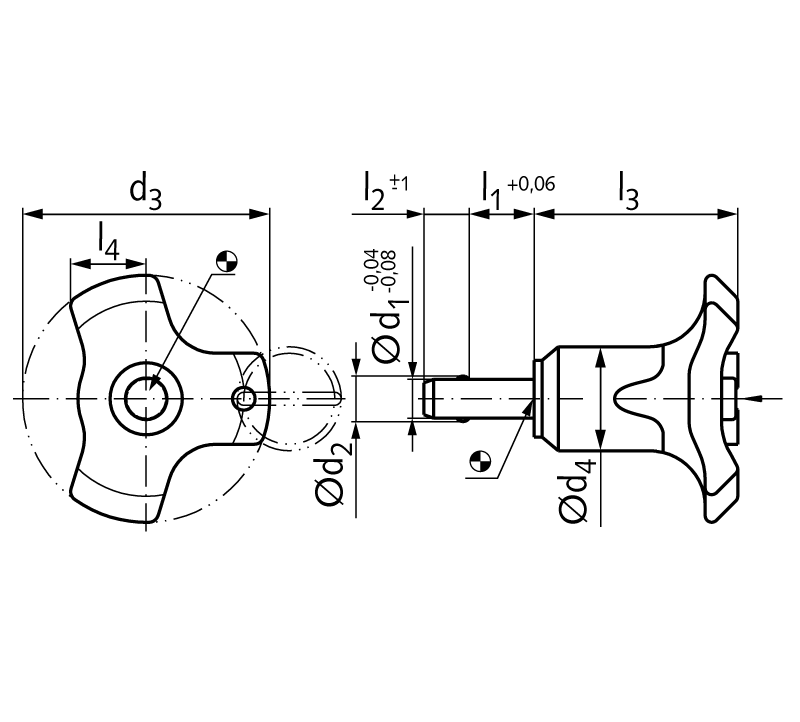

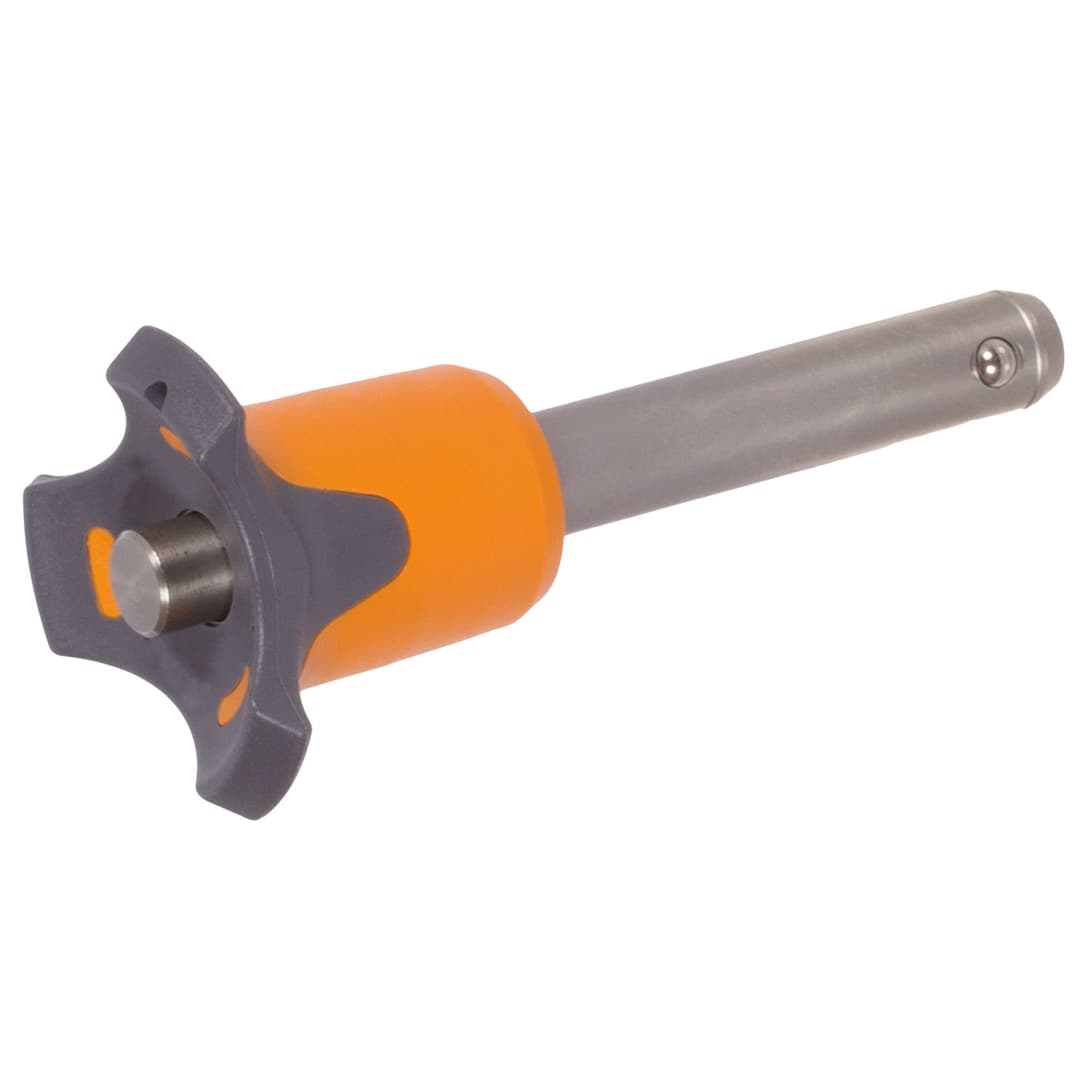

Socket pins with spring-loaded balls diameter 12mm l1 = 50mm
Manufacturer part no. 66681250
$62.26≈ 54.07 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €54.07 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.81 |
| Total delivered | €82.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 117 g |
Other characteristics
| Bolt diameter | 12 mm |
| Outer diameter | 47.6 mm |
| Outer diameter with ball overhang | 14.5 mm |
| Shear strength | 144 kN |
| Socket bore h11 | 12 mm |
| Usable fastening length | 50 mm |
| Material | Stainless steel (17-4PH) / Plastic (PA6) |
| Surface | Blank |
Description
Material: Pin part: stainless steel 1.4542 hardened. With Spring-Loaded Balls. Handle: Plastic (PA6). Spring: stainless steel. Press = release. Loosen = lock. For quick fastening and securing of parts and workpieces. Fast and easily released for frequently repeated actions, e.g., replaceable bearing pins. Temperature range: -30° / +80° C. *rupture limi
