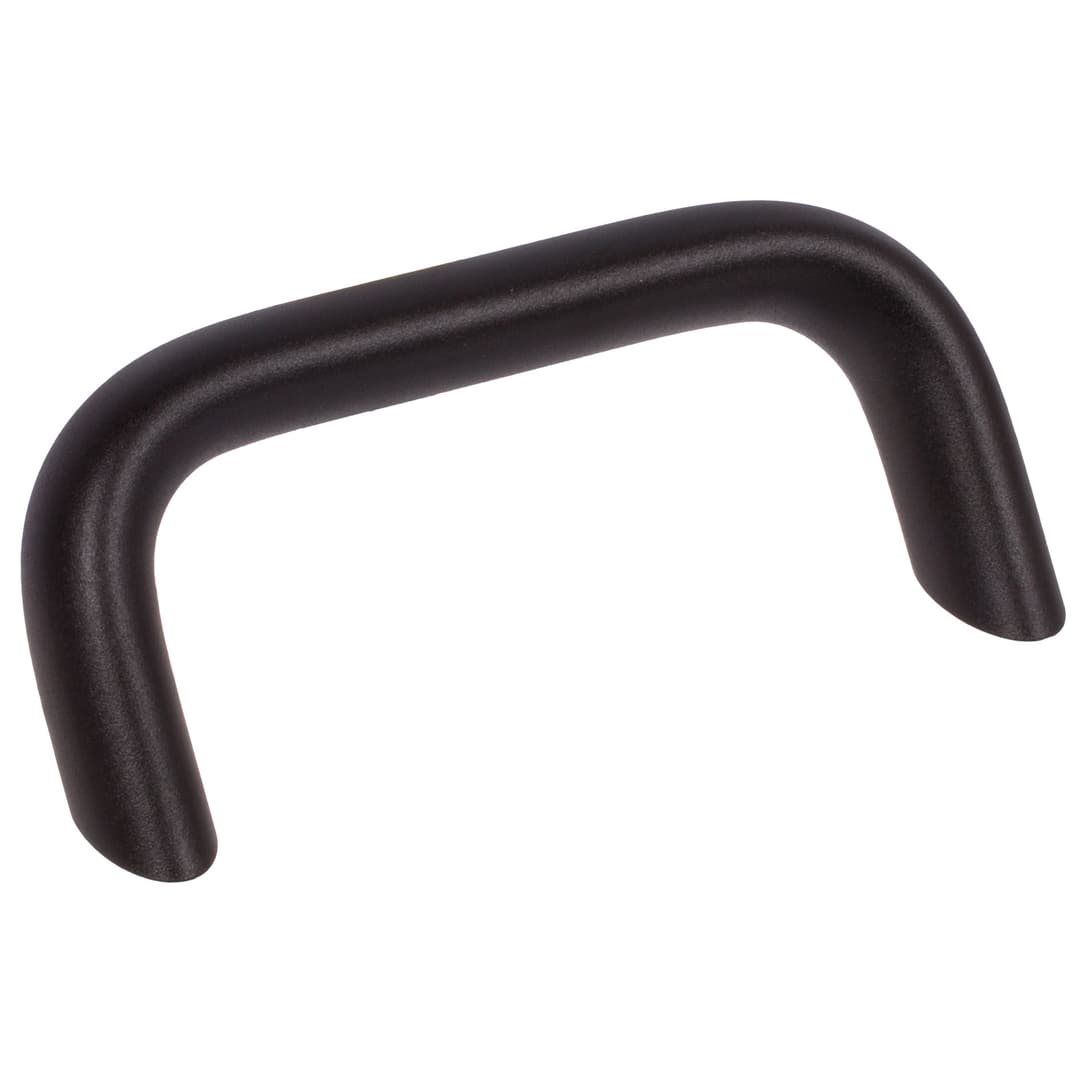

Cabinet U handle 565.2 length 160mm material aluminium
Manufacturer part no. 66686600
$22.24≈ 19.31 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €19.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.86 |
| Total delivered | €41.17 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 225 g |
Other characteristics
| Handle thickness | 17 mm |
| Handle width | 26 mm |
| Mounting hole center distance | 160 mm |
| Radius | 17 mm |
| Thread length | 12 mm |
| Total height | 54 mm |
| Width of mounting surface | 32 mm |
| Inner thread size | M 8 mm |
| Material | Aluminum |
| Surface | Plastic coated, matt finish |
Description
Material: Aluminium plastic coated, matt finish, black RAL 9011. Cabinet U-handles 565.2 are a further development of the cabinet U-handles 565. The angled contact surface allows improved access even in confined spaces such as corners. Drawn from profiled aluminium extrusions their special features are rigidity and a smooth surface. Good design and ergonomical shaping were essential for the choice of the profile. When coated with epoxy resin its tactile friendliness is further enhanced.
