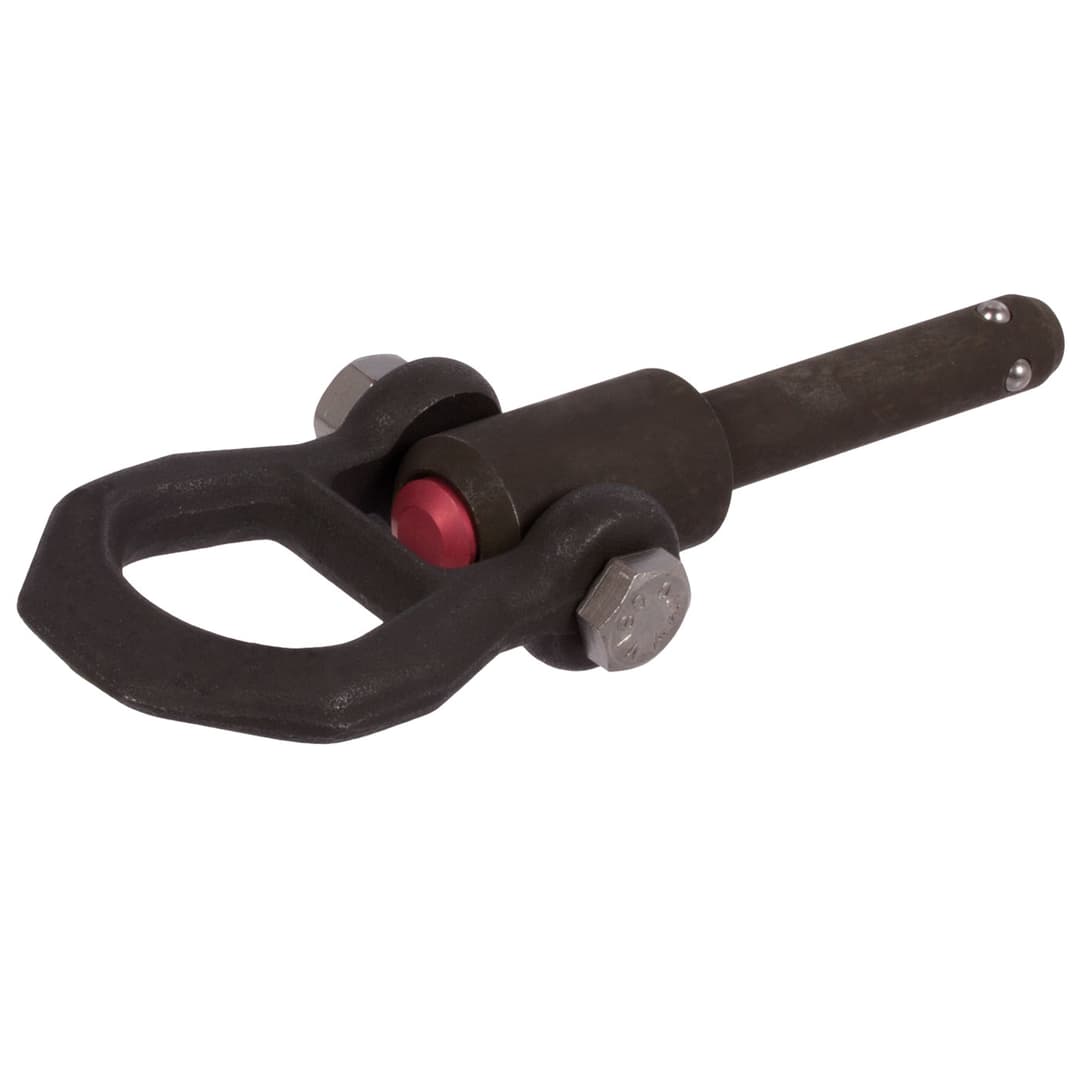

Lifting pin self-locking bolt diameter 10mm l1=50mm
Manufacturer part no. 66691050
$103.59≈ 89.96 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €89.96 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.99 |
| Total delivered | €125.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 161 g |
Other characteristics
| Bolt diameter | 10 mm |
| Max load | 2.7 kN |
| Mounting distance max. | 35 mm |
| Mounting distance min. | 1.5 mm |
| Outer diameter with ball overhang | 11.7 mm |
| Socket bore h11 | 10 mm |
| Usable fastening length | 50 mm |
| Material | Steel / Aluminum |
| Surface | Manganese-phosphate treated |
Description
Material:Material: Steel, manganese-phosphate treated. Press bolt made from AL. With spring-loaded balls. Press = release. Loosen = lock. Fast and easy-to-use, robust lifting element with moveable shackle. Special lifting devices, i.e., threads are no longer required on the workpiece. Simple H11 bores are sufficient.
