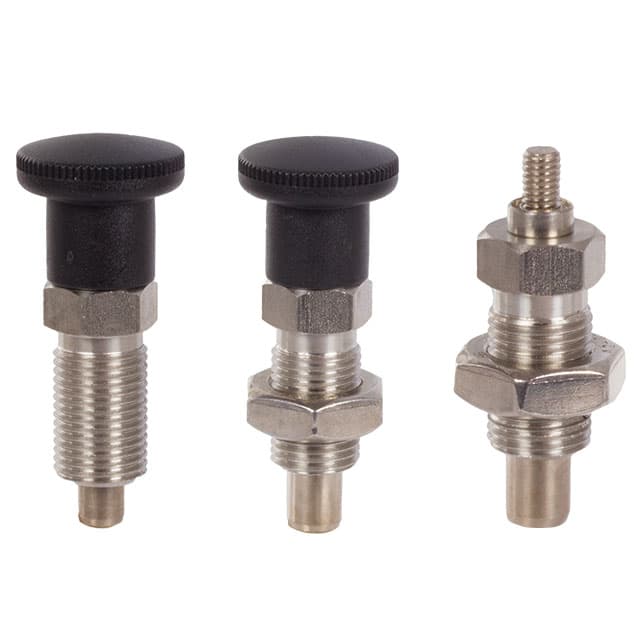

Index plunger 817 version G bolt diameter 8mm stainless steel 1.4305
Manufacturer part no. 66699738
Manufacturer part no. 66699738
| Item | €23.21 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.64 |
| Total delivered | €45.85 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 53.9 g |
| Bolt diameter d1 0 02 0 04 | 8 mm |
| Bolt overhang | 8 mm |
| Screw in length | 26 mm |
| Spring load end | 26 N |
| Spring load inital | 8.5 N |
| Thread length at d4 | 8.5 mm |
| Wrench size | 17 mm |
| Material | Stainless steel |
| Shape | G |
| Surface | Blank |
| Thread size | M 16×1.5 mm |
| Thread size on top shape g gk | M 6 mm |

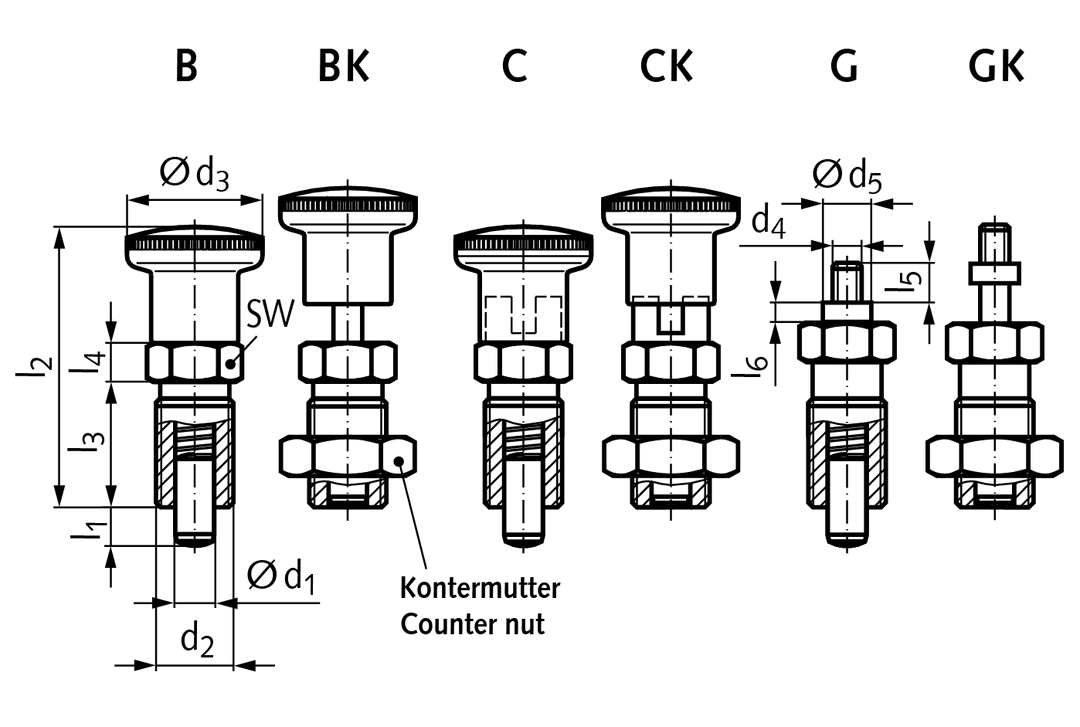

Material: Stainless steel 1.4305 (AISI 303), plunger pin nickel-plated. Knob: Plastic Thermoplast (polyamide) black, matt finish, cannot be disassembled. Indexing plungers 817 offer the following advantages: – small outer dimensions – most of the release mechanism (version C/CK) is covered – defined thread length by an undercut at the end of the thread (version G/GK). Version B/BK: with knob, without notched catch, this version is used where, on releasing the knob, the plunger pin should be returned to its initial position by the spring force. Version C/CK: with knob, is used if the plunger pin has to remain in retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notched catch stops the locked-in knob from returning to its initial position accidentally or due to vibration. Version G/GK: with threaded plunger end, for applications where a special knob to customer¿s request is required or where the plunger pin is not shifted manually.
