MÄDLERMÄDLER· Parts for Operating

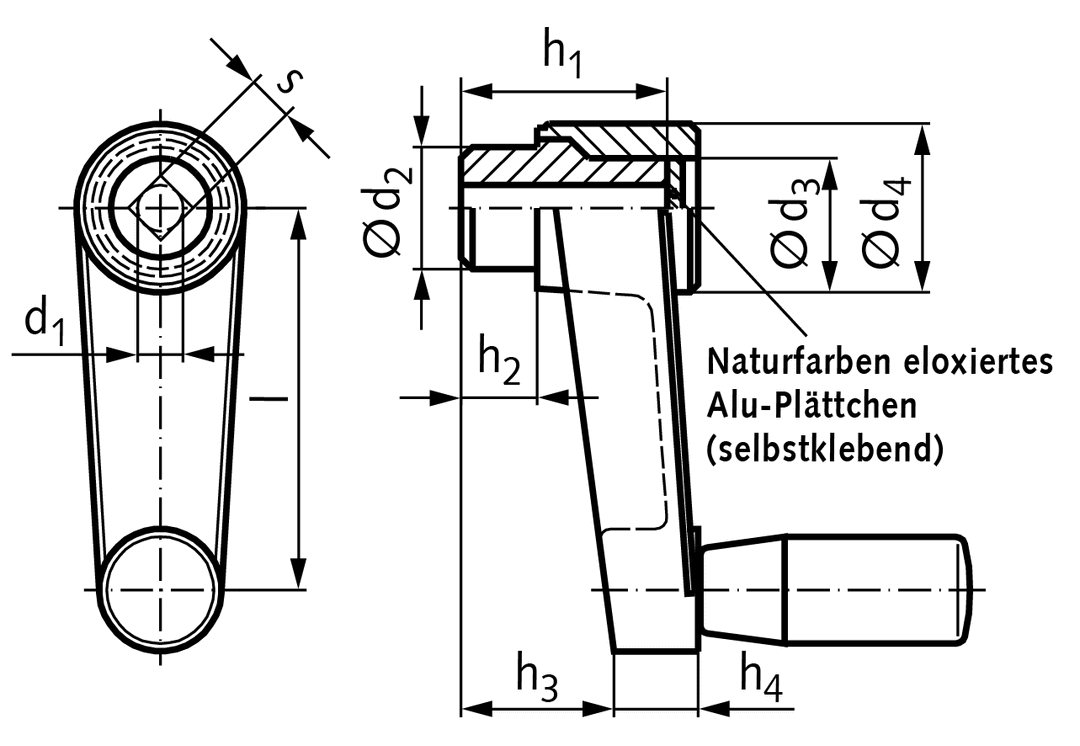

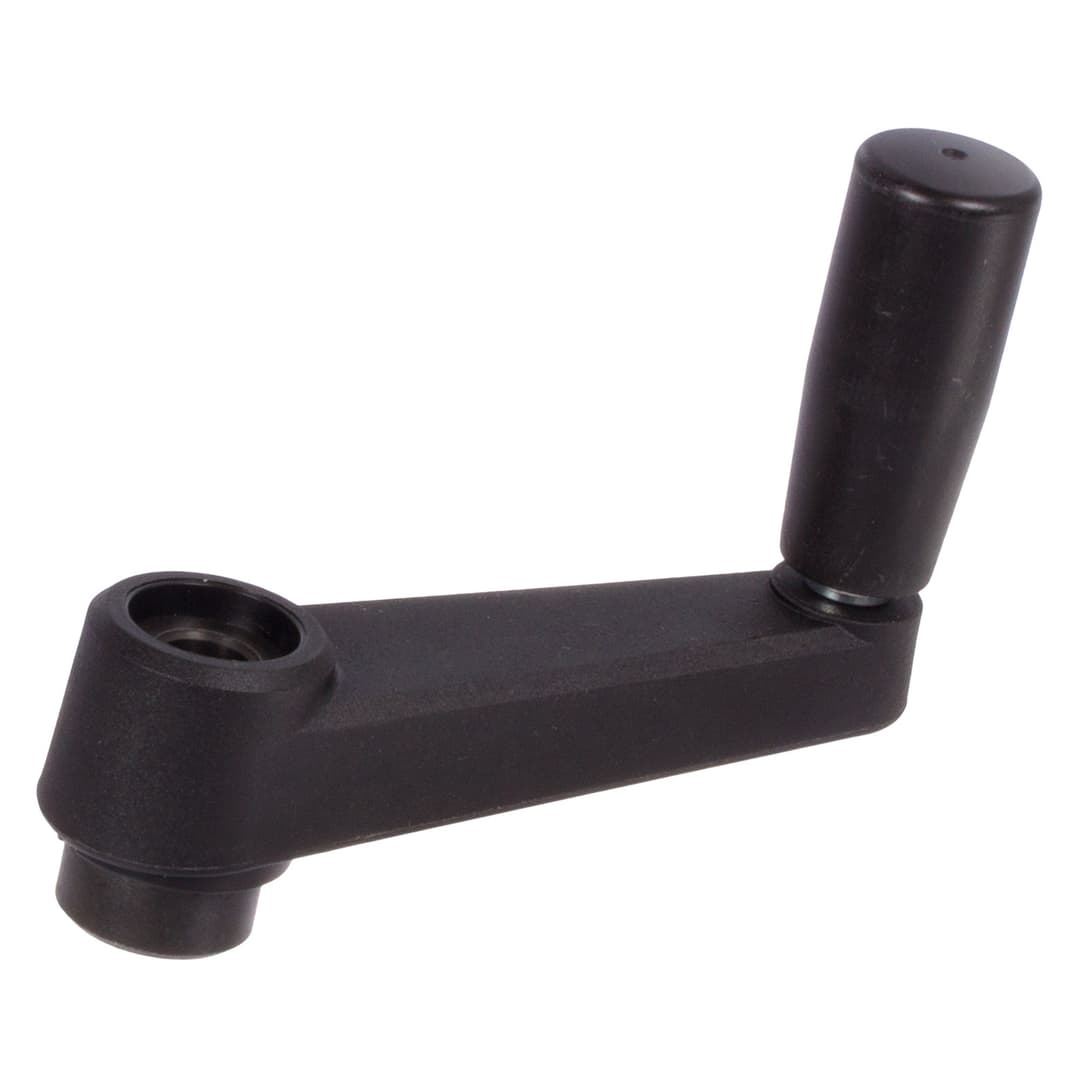

Cranked handle 569 made from plastic square hole SW 10mm length 64mm
Manufacturer part no. 66720600
$34.83≈ 30.25 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €30.25 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.05 |
| Total delivered | €54.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 63 g |
Other characteristics
| Inner diameter inner square d1 h7 sh11 | 10 mm |
| Length | 64 mm |
| Handle diameter x length of handle | 18 x 42.5 mm |
| Material | Plastic / Steel |
| Shape | V |
| Surface | Black oxide finish |
Description
Material: Plastic Thermoplast reinforced Crank body made from plastic. Hub insert: steel, black oxide finish, brass-threaded bush for screwing in the cylindrical handle. Cylindrical handle made from black plastic and revolving. The protruding steel bush ensures an accurate bore and a flush fit of the bore face. It can be retained with a pin or a retaining screw. Version B = with bore H7 Version V = with square bore H11.
