MÄDLERMÄDLER· Parts for Operating

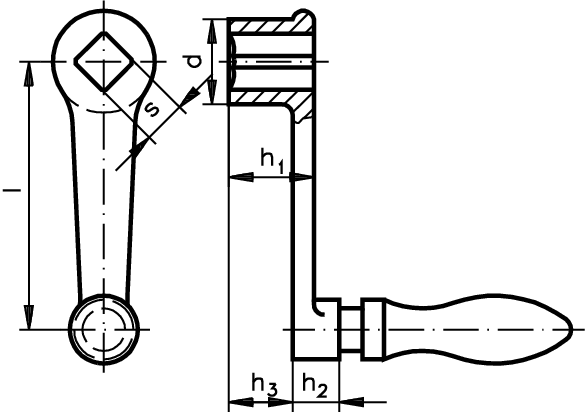

Cranked handle DIN 469 Tg with revolving ball handle length 250mm type 1
Manufacturer part no. 66922500
$110.69≈ 96.13 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €96.13 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €22.23 |
| Total delivered | €133.36 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.34 kg |
Other characteristics
| Handle diameter | 32 |
| Inner square | 22 mm |
| Length | 250 mm |
| Material | Cast iron / Steel |
| Shape | D |
| Surface | Plastic coated, matt finish / Zinc-plated |
Description
Material: Crank body cast iron, plastic coated, textured finish.Handle steel, zinc-plated.Hand cranks: Square hole reamed true to gauge. Hub: Machined, cast iron burr precisely ground. Version F = with fixed handle Version D = with revolving handle
