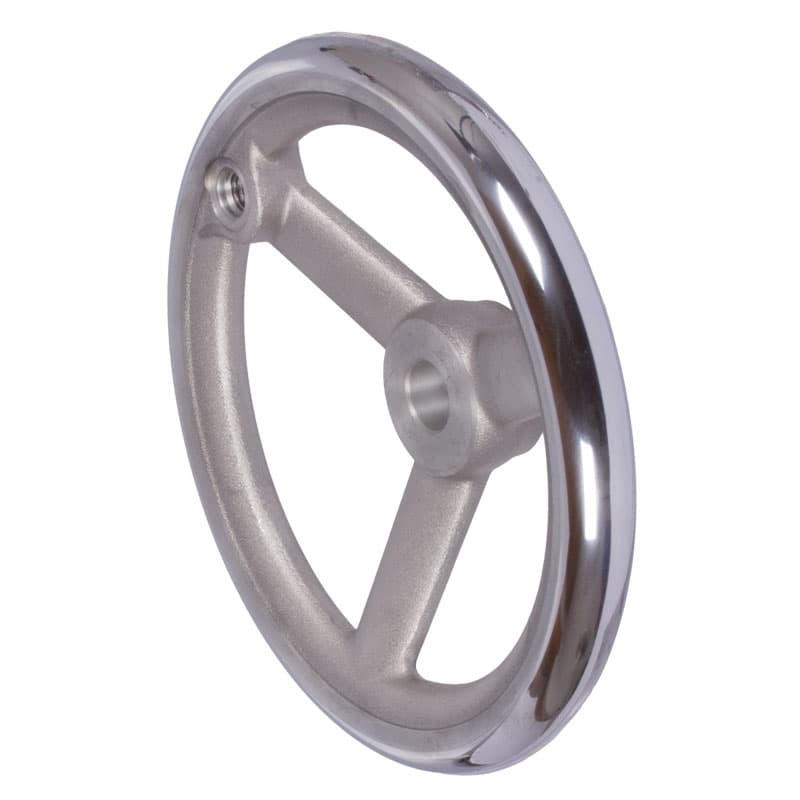

Spoked handwheel DIN 950 made of aluminium 3 spokes version B/G diameter 100mm with thread hole for machine handle
Manufacturer part no. 67011000
$29.81≈ 25.89 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €25.89 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.18 |
| Total delivered | €49.07 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 190 g |
Other characteristics
| Bore diameter | 12 mm |
| Hub diameter | 28 mm |
| Hub length | 17 mm |
| Outer diameter | 100 mm |
| Material | Aluminum |
| Optional handle alu rigid din 39 | 662 316 00 |
| Optional handle alu rotatable din 98 | 663 316 00 |
| Surface | Polished |
| Version | B/G |
Description
Material: Aluminium, wheel rim ground and high-gloss finish. Number of spokes: 3 spokes for sizes up to Ø 200. 5 spokes for sizes from Ø 225. Version B/G: Borehole without keyway. Version N/G: With keyway according to DIN 6885-1. The handle has to be ordered separately. *not according to DIN.
