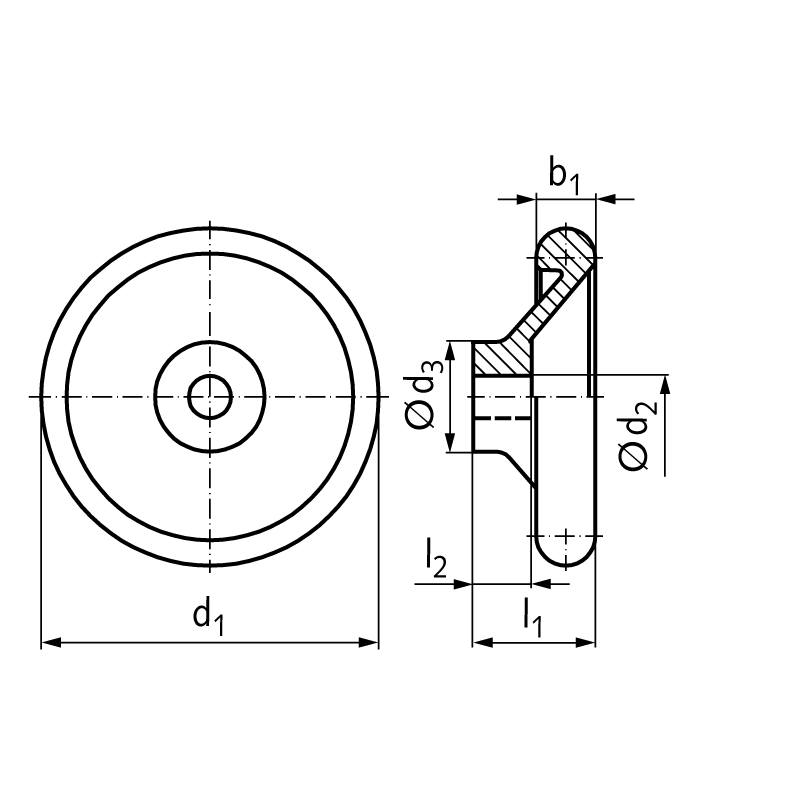

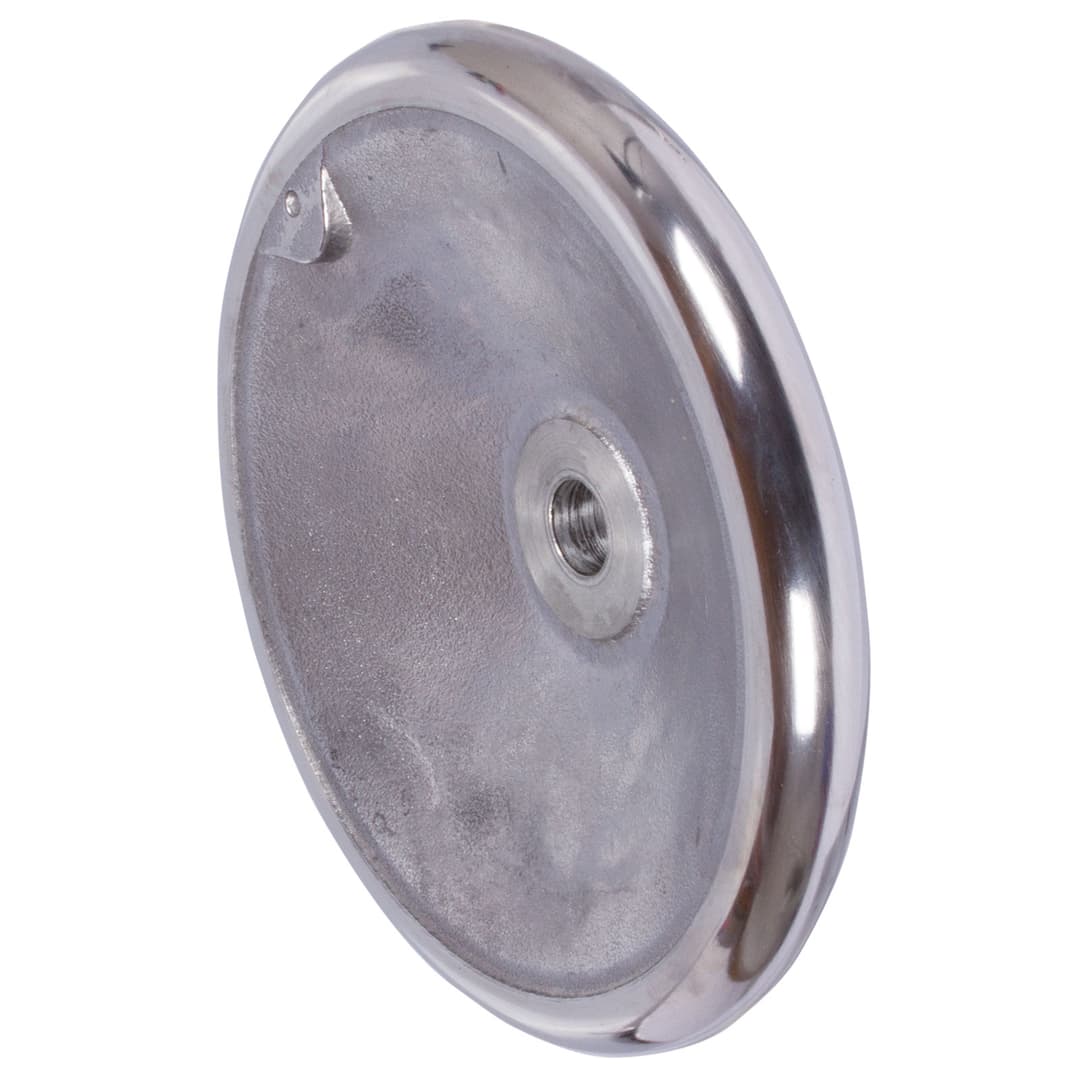

Solid-Disk handwheel similar to DIN 950 made of aluminium diameter 140mm
Manufacturer part no. 67031400
$47.69≈ 41.42 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €41.42 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.28 |
| Total delivered | €67.70 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 460 g |
Other characteristics
| Bore | 14 mm |
| Hub diameter | 32 mm |
| Hub length | 19 mm |
| Outer diameter | 140 mm |
| Total length of wheel | 39 mm |
| Material | Aluminum |
| Surface | Polished |
Description
Material: Aluminium, rim of wheel ground and with high-gloss finish. Outer diameter and hub length according to DIN 950. At some products, the bore diameter is a special size, not like DIN 950. Bigger bore or keyway available at extra charge.
