MÄDLERMÄDLER· Parts for Operating
Solid-Disk handwheel DIN 3670 with recessed grips version B diameter 200mm
Manufacturer part no. 67041600
$50.46≈ 43.82 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €43.82 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.76 |
| Total delivered | €70.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

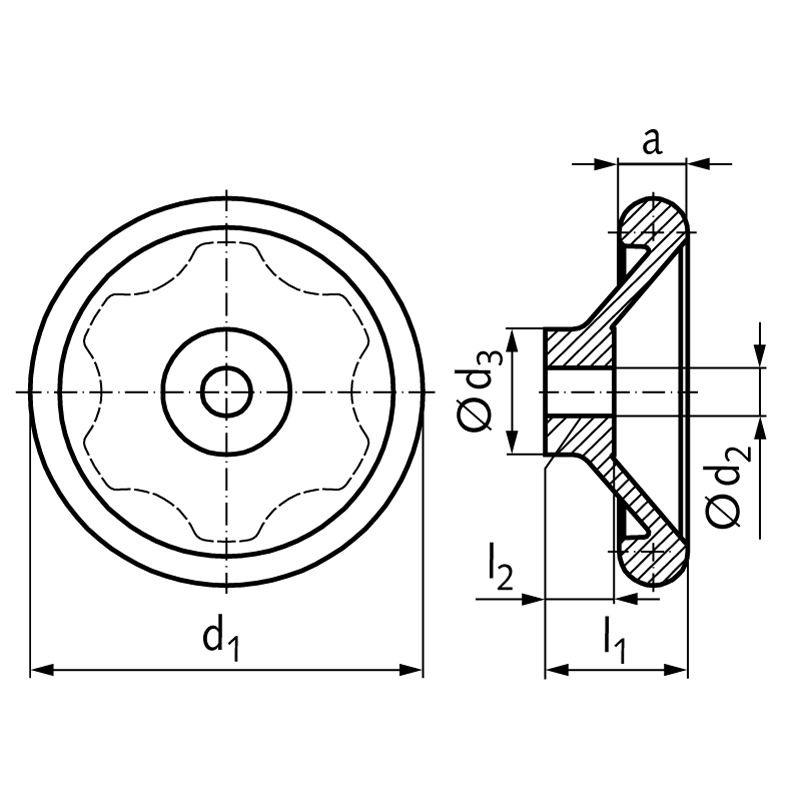

Specifications (automatically extracted)
Mechanical
| Weight | 514 g |
Other characteristics
| Bore | 14 mm |
| Hub diameter | 36 mm |
| Hub length | 20 mm |
| Outer diameter | 160 mm |
| Total length of wheel | 40 mm |
| Wheel width | 18 mm |
| Material | Aluminum |
| Surface | Polished |
| Version | B |
Description
Material: Aluminium, hub machined, rim turned and polished. Without Handle. Version B: Without keyway. Version N: With keyway DIN 6885-1. * not according to DIN.
