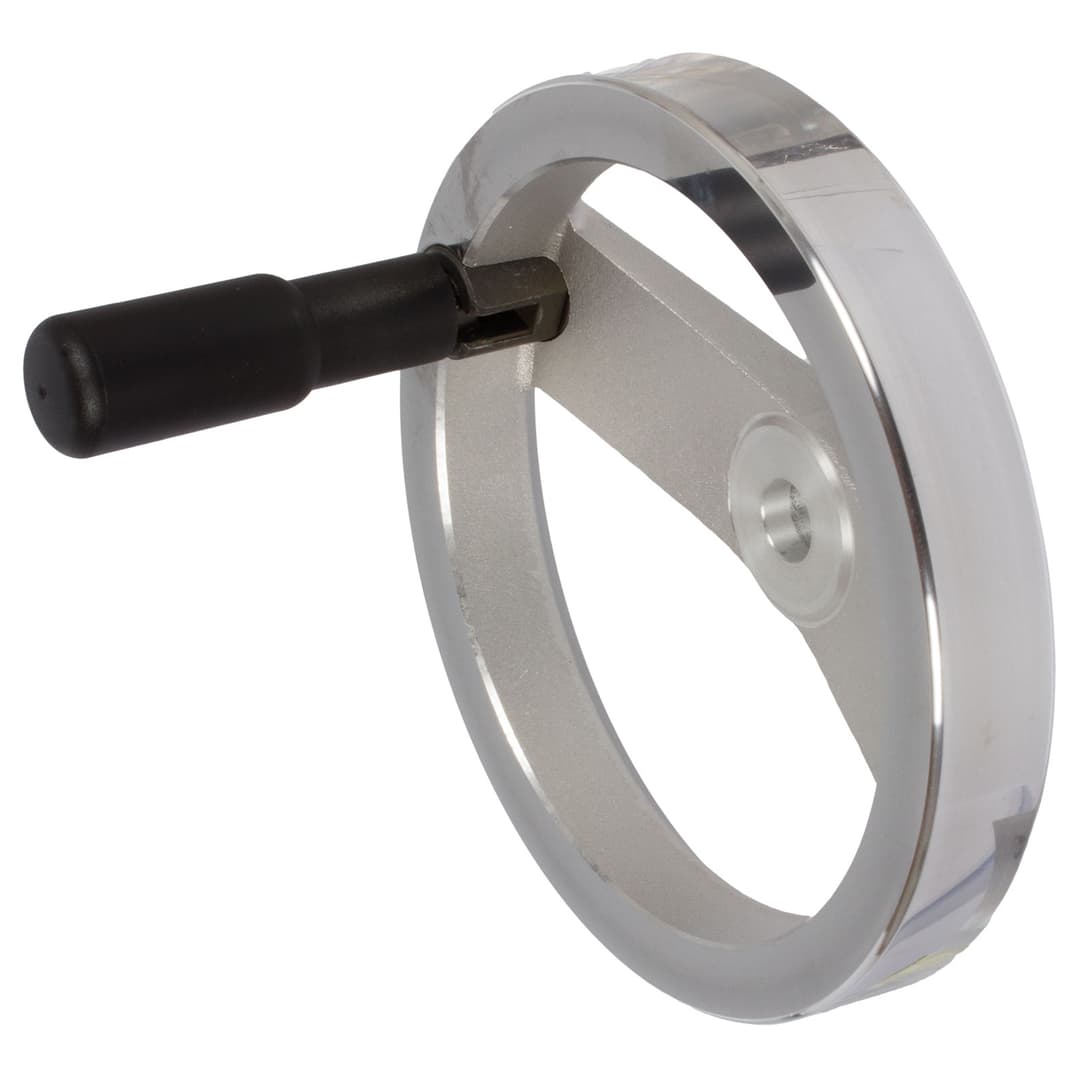

Handwheel with retractable handle 3223 made of aluminium version B/G diameter 160mm
Manufacturer part no. 67051600
$103.52≈ 89.90 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €89.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.98 |
| Total delivered | €125.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

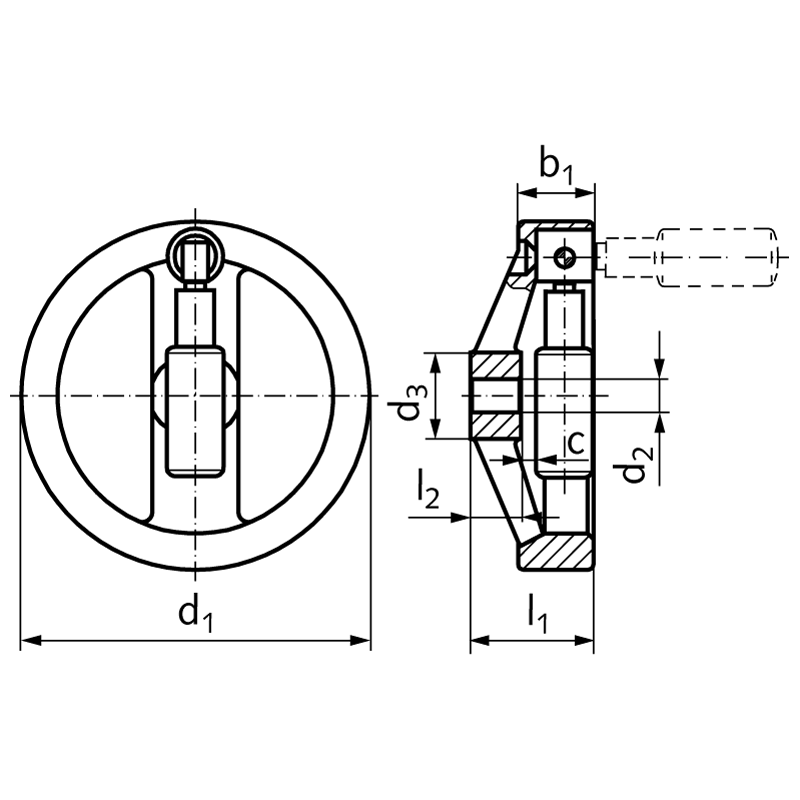

Specifications (automatically extracted)
Mechanical
| Weight | 697 g |
Other characteristics
| Bore | 14 mm |
| Handle diameter | 24 mm |
| Hub diameter | 36 mm |
| Hub length | 20 mm |
| Length of handle | 76.5 mm |
| Outer diameter | 160 mm |
| Total length of wheel | 47 mm |
| Wall thickness | 6.5 mm |
| Wheel width | 25 mm |
| Material | Aluminum |
| Surface | Polished |
| Version | B/G |
Description
Material: Aluminium gravity die-cast, hub machined, rim turned and polished. Parts of the folding mechanism: Steel hardened and black oxide finished. These handwheels are used in applications where the handle must not stick out. Handle and folding mechanism are fully encased in the rim. The handle is locked in the operating position. To retract it, the handle it is pulled out of its taper seat and then tilted. A compression spring locks the handle in both end positions. Version B/G: Without keyway. Version N/G: With keyway DIN 6885-1.
