MÄDLERMÄDLER· Parts for Operating

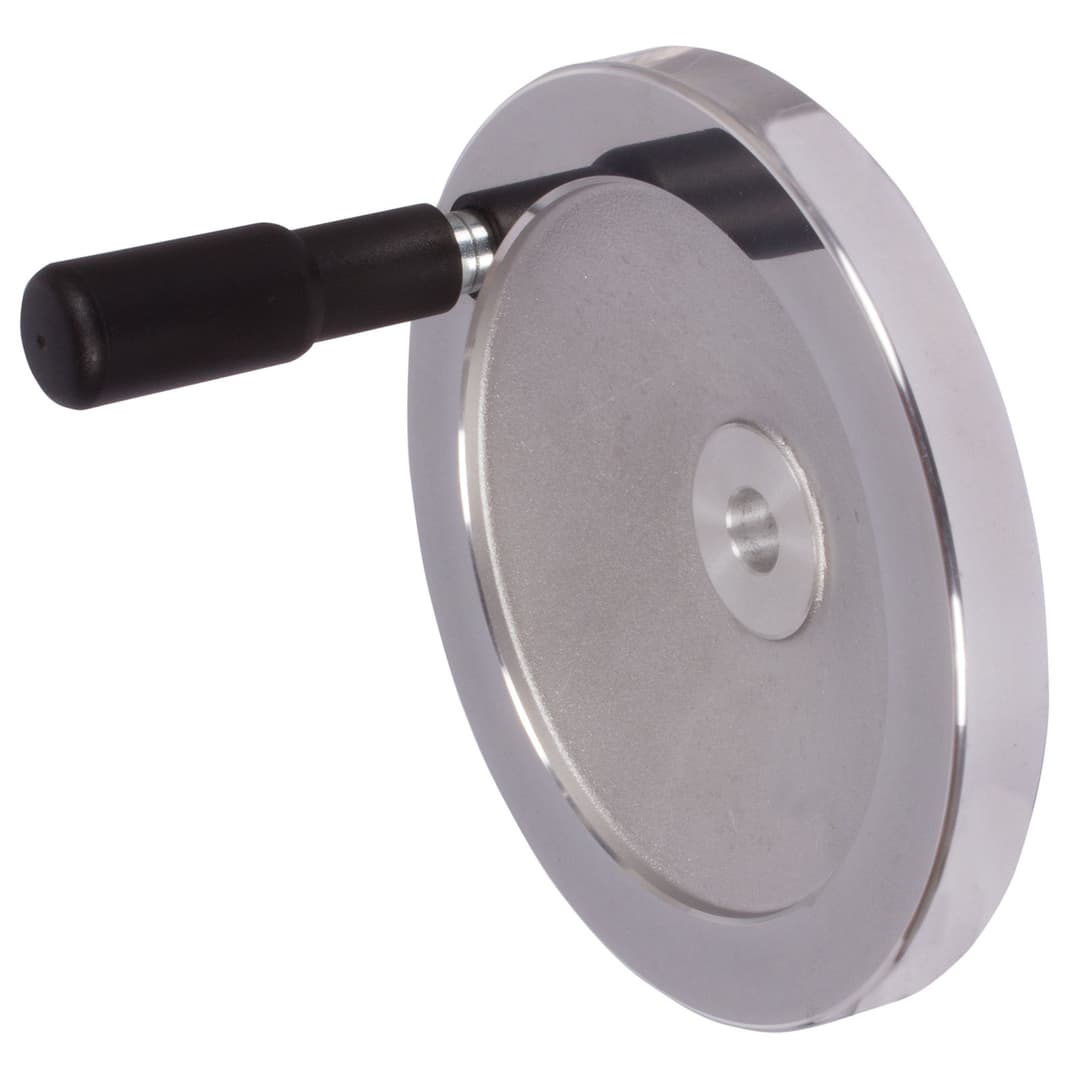

Solid-Disk handwheel 326 version B/G with handle diameter 140mm
Manufacturer part no. 67081400
$70.71≈ 61.41 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €61.41 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.28 |
| Total delivered | €91.69 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 507 g |
Other characteristics
| Bore diameter | 14 mm |
| Handle diameter | 24 mm |
| Hub diameter | 34 mm |
| Hub length | 19 mm |
| Length of handle | 76.5 mm |
| Outer diameter | 140 mm |
| Total length of wheel | 36 mm |
| Wheel width | 16.5 mm |
| Material | Aluminum |
| Surface | Polished |
| Version | B/G |
Description
Material: Aluminium, gravity die-cast. Revolving cylindrical handle made from plastic with threaded steel stud and Allen screw. Hub machined, rim of wheel turned and polished all over. Hub length and bore diameter according to DIN 950. Version B/G: Without keyway, with handle. Version N/G: With keyway DIN6885-1, with handle.
