MÄDLERMÄDLER· Parts for Operating

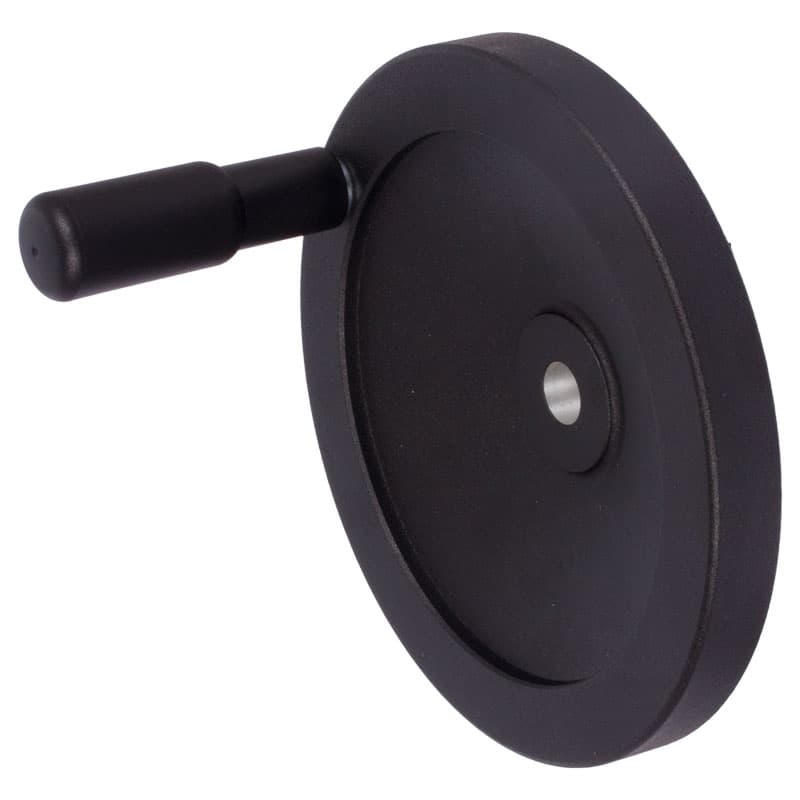

Solid-Disk handwheel 323 version B/G with Revolving handle diameter 80mm
Manufacturer part no. 67091100
$44.96≈ 39.04 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €39.04 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.81 |
| Total delivered | €64.85 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

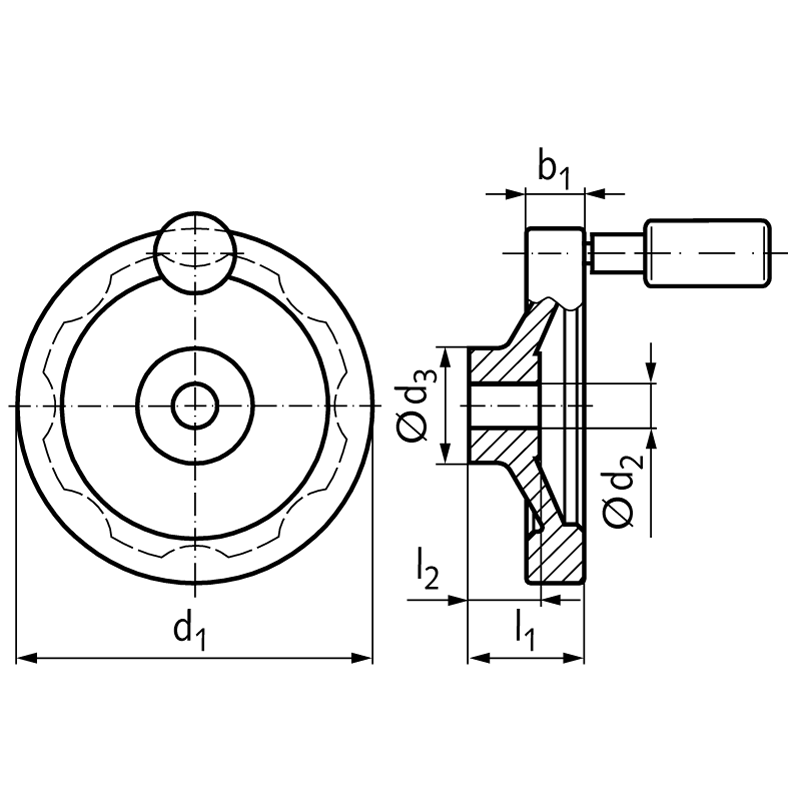

Specifications (automatically extracted)
Mechanical
| Weight | 160 g |
Other characteristics
| Bore diameter | 10 mm |
| Handle diameter | 16 mm |
| Hub diameter | 26 mm |
| Hub length | 16 mm |
| Length of handle | 44 mm |
| Outer diameter | 80 mm |
| Total length of wheel | 26 mm |
| Wheel width | 13 mm |
| Material | Aluminum |
| Surface | Plastic coated, matt finish |
| Version | B/G |
Description
Material: Aluminium gravity die-cast, plastic coated, black, textured finish. Hub machined. Rim turned on all sides. The rim is machined before coating, thus it is perfectly concentric. Version B/G: Without keyway. Version N/G: With keyway DIN 6885-1.
