MÄDLERMÄDLER· Parts for Operating

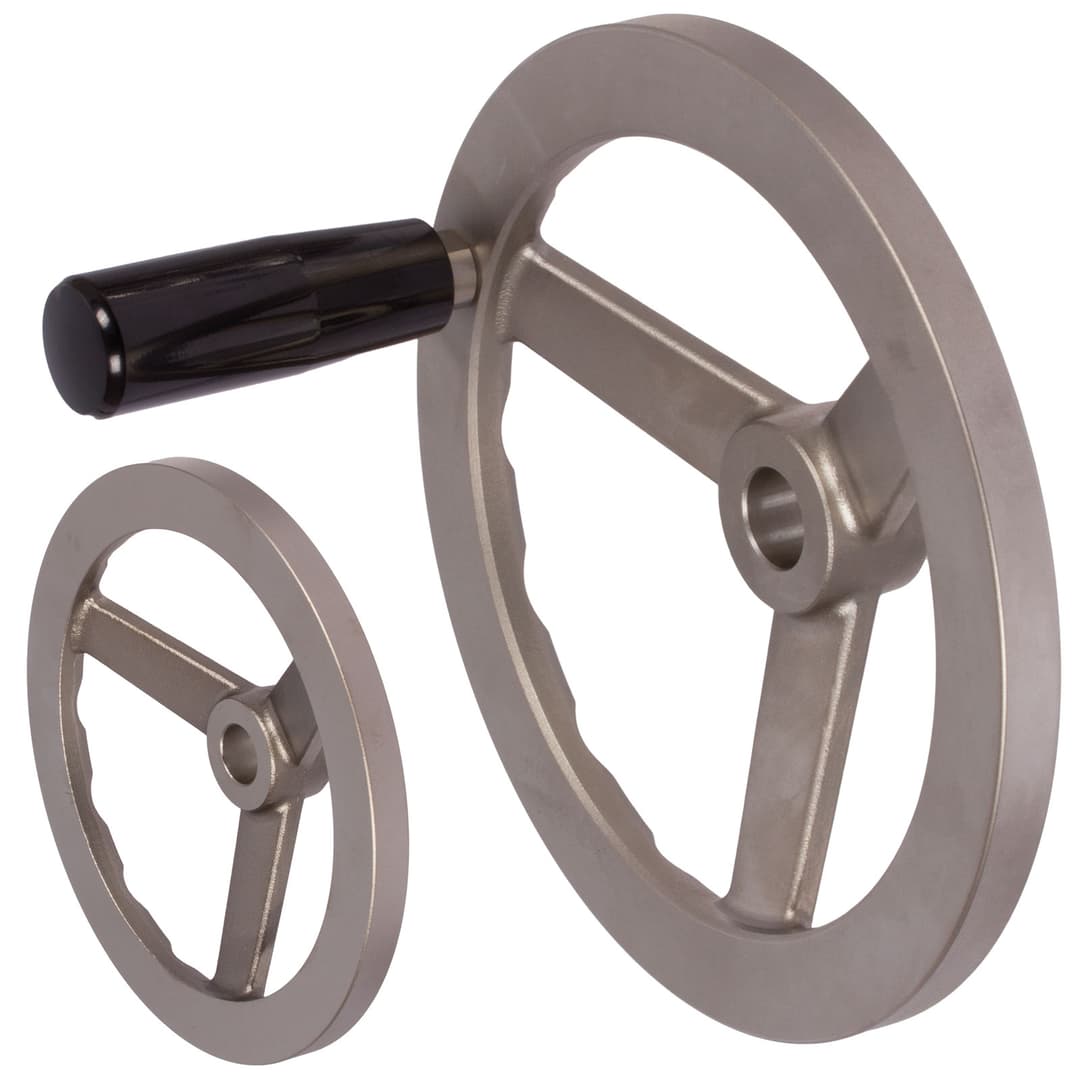

Spoked handwheel stainless steel 1.4308 solid version B/A without handle diameter 125mm
Manufacturer part no. 67099512
$89.87≈ 78.05 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €78.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.61 |
| Total delivered | €111.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

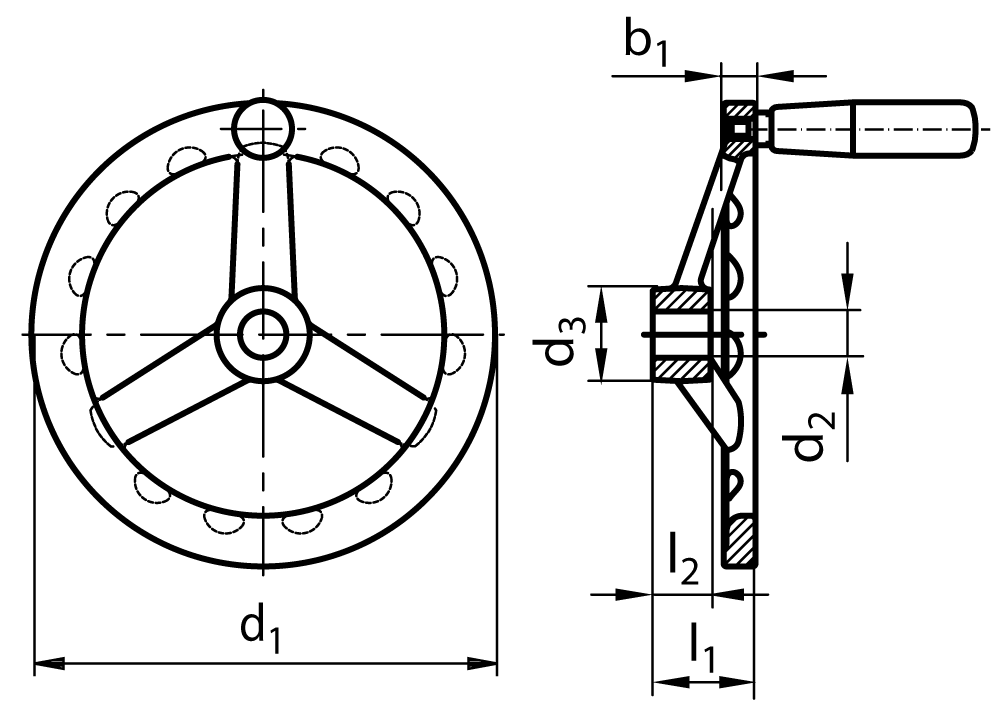

Specifications (automatically extracted)
Mechanical
| Weight | 425 g |
Other characteristics
| Bore diameter | 12 mm |
| Hub diameter | 24 mm |
| Hub length | 16 mm |
| No of spokes | 3 |
| Outer diameter | 125 mm |
| Total length of wheel | 28.5 mm |
| Wheel width | 9 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
| Version | B/A |
Description
Material: Wheel body: Cast stainless steel 1.4308 (CF-8). Rim turned, matt blasted. At version B/G: Handle Duroplast PF31, black, glossy finish. Spindle: Stainless steel 1.4305 (AISI 303). Version B/A: Without thread, without cylindrical handle. Version B/G: With revolving cylindrical handle. Easy to clean. Keyway available at extra charge.
