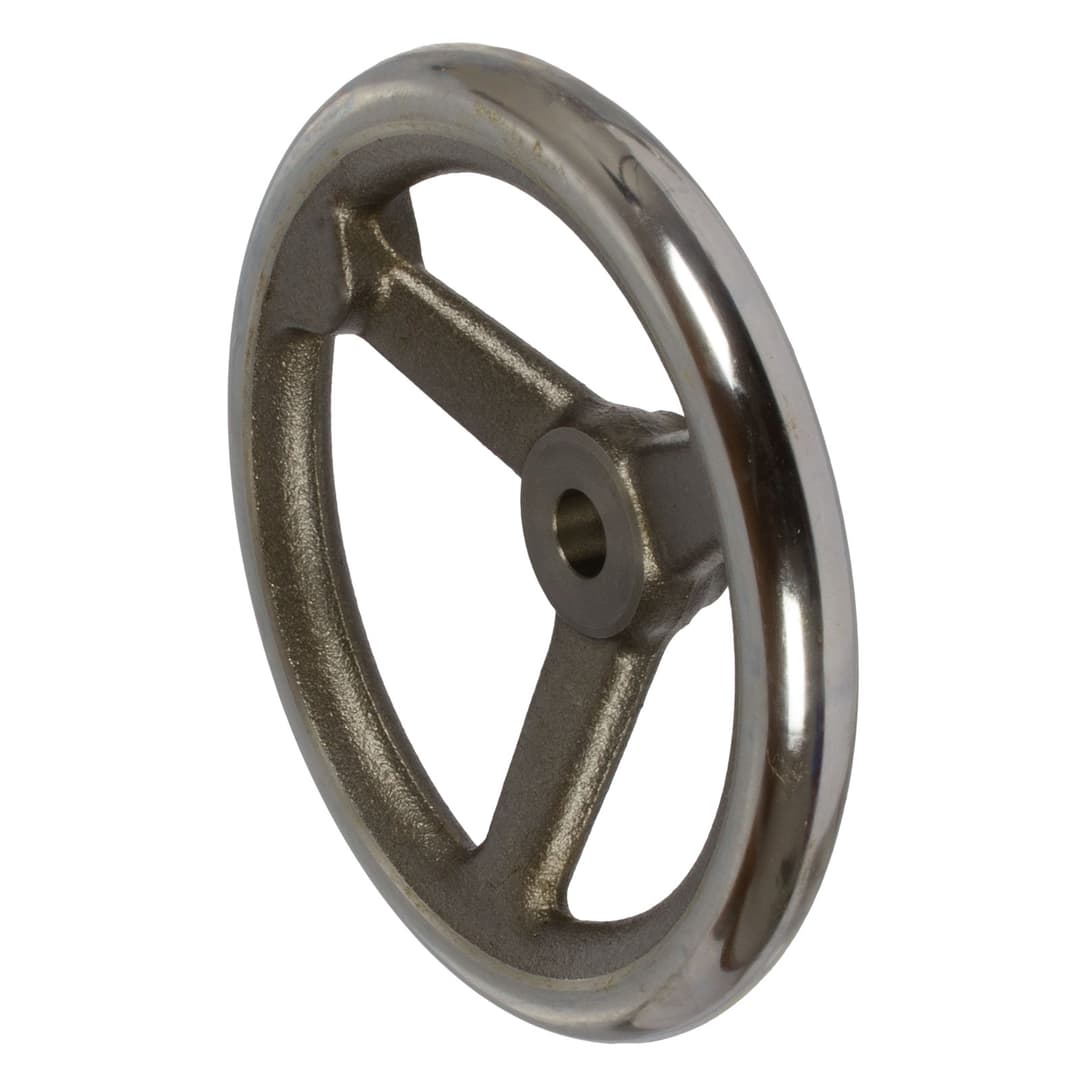

Spoked handwheel DIN 950 cast iron 3 spokes rim turned and polished version B/A diameter 80mm
Manufacturer part no. 67220800
$26.87≈ 23.33 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €23.33 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.67 |
| Total delivered | €46.00 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

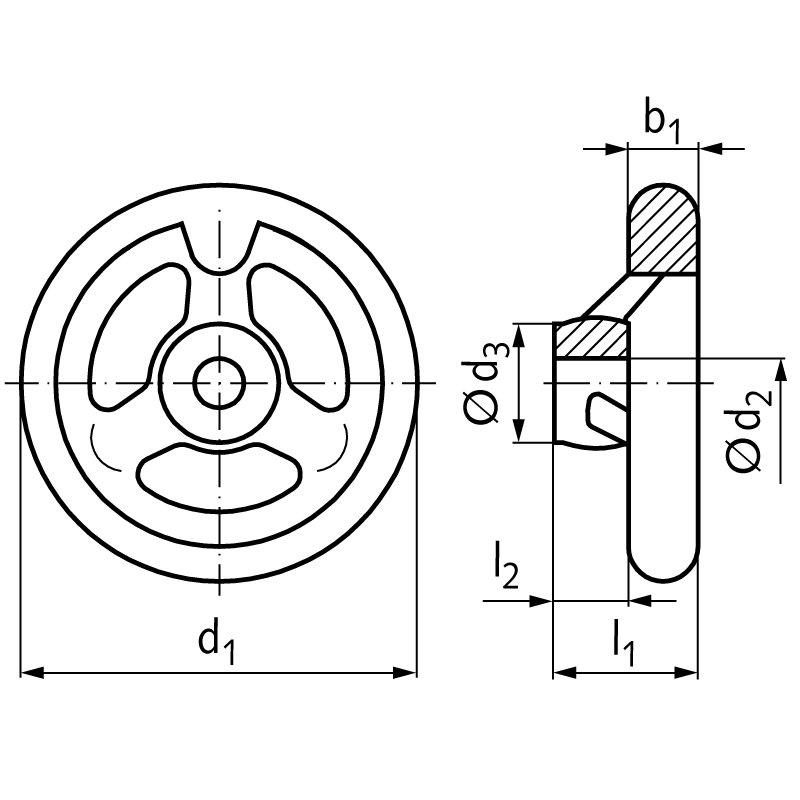

Specifications (automatically extracted)
Mechanical
| Weight | 450 g |
Other characteristics
| Bore diameter | 10 mm |
| Hub diameter | 24 mm |
| Hub length | 16 mm |
| Outer diameter | 80 mm |
| Total length of wheel | 29 mm |
| Material | Grey cast iron (A48) |
| Surface | Polished |
| Version | B/A |
Description
Material: Grey cast iron GG25. Rim turned and polished. Hub surfaces machined. Number of spokes: 3 spokes for sizes up to Ø 200. 5 spokes for sizes from Ø 225. Version B/A: Without keyway. Version N/A: With keyway DIN 6885-1.
