MÄDLERMÄDLER· Parts for Operating

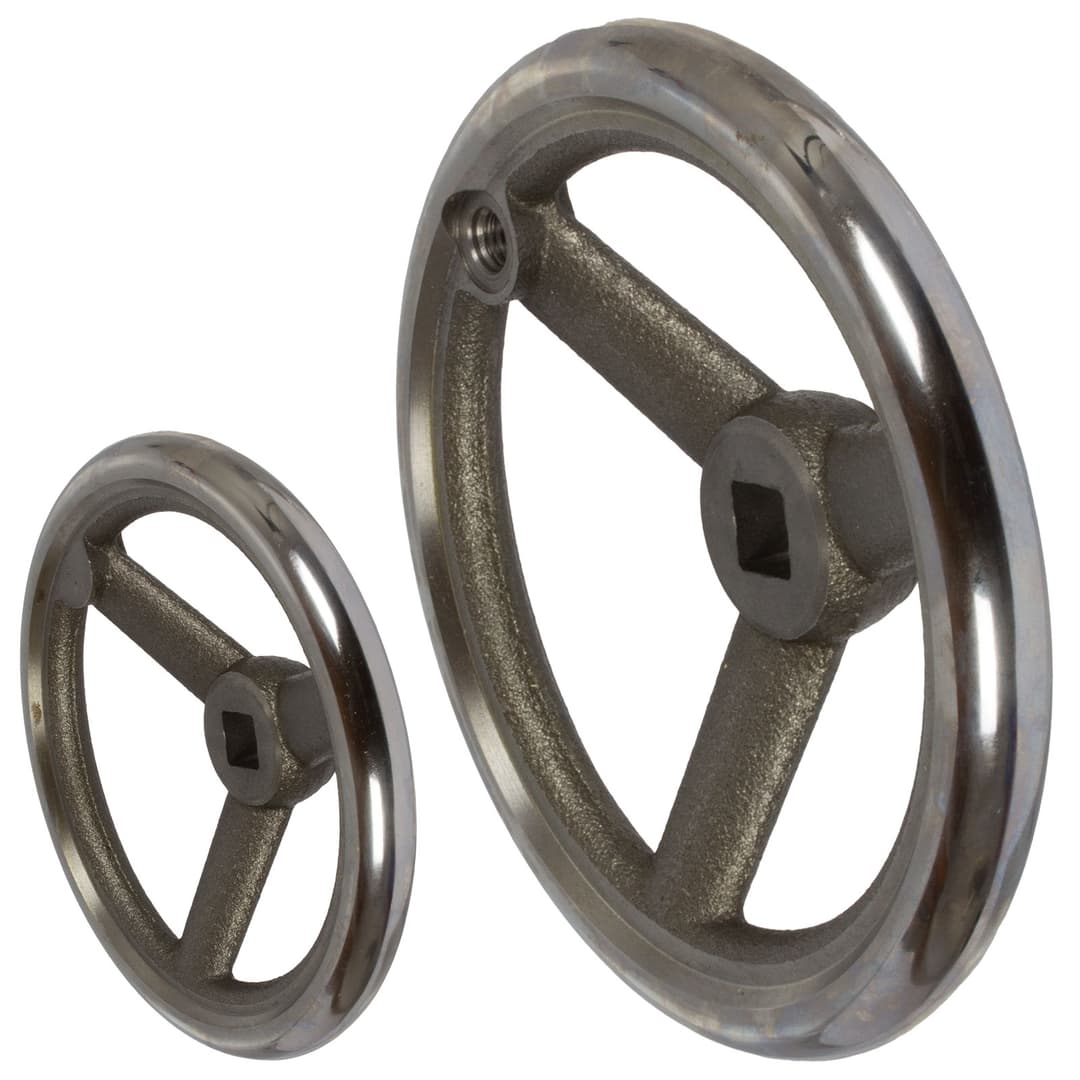

Spoked handwheel DIN 950 cast iron 3 spokes rim turned and polished version V/G diameter 200mm square bore 17mm with thread hole for machine handle
Manufacturer part no. 67342000
$69.12≈ 60.03 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €60.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.01 |
| Total delivered | €90.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

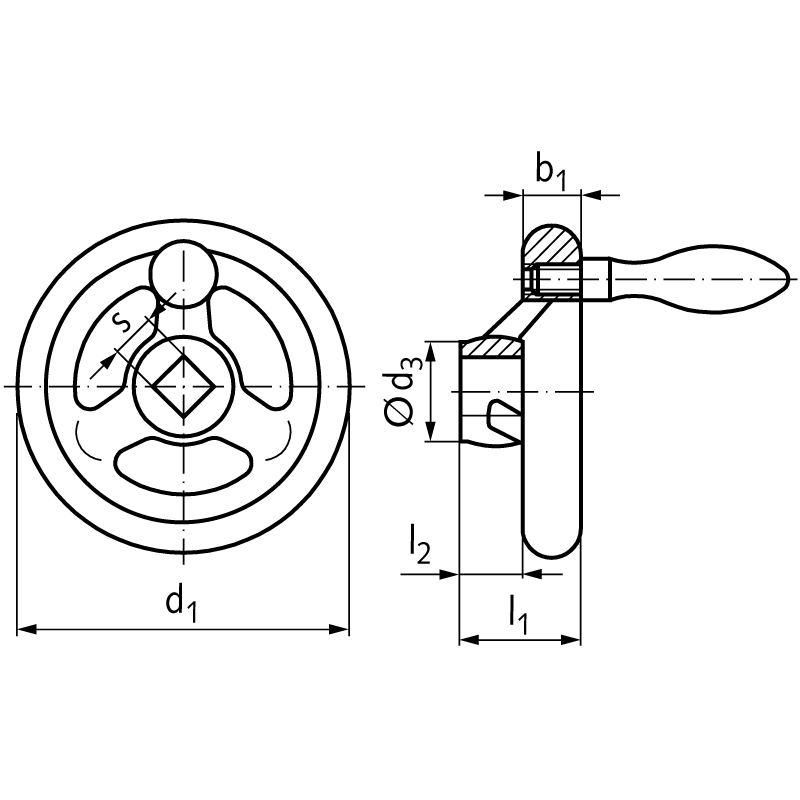

Mechanical
| Weight | 2.3 kg |
Other characteristics
| Hub diameter | 38 mm |
| Hub length | 24 mm |
| Outer diameter | 200 mm |
| Square size | 17 mm |
| Total length of wheel | 45 mm |
| Material | Grey cast iron (A48) |
| Optional handle rigid din 39 | 662 125 00 |
| Optional handle rotatable din 98 | 663 125 00 |
| Surface | Polished |
| Version | V/G |
Description
Material: Grey cast iron GG25. Rim turned and polished. Hub surface machined, square hole reamed true to gauge. Number of spokes: 3 spokes for sizes up to Ø 200. 5 spokes for sizes from Ø 225. Version V/A: Without thread, without handle. Version V/G: With threaded lug for handle. The handle has to be ordered separately.
