MÄDLERMÄDLER· Parts for Operating

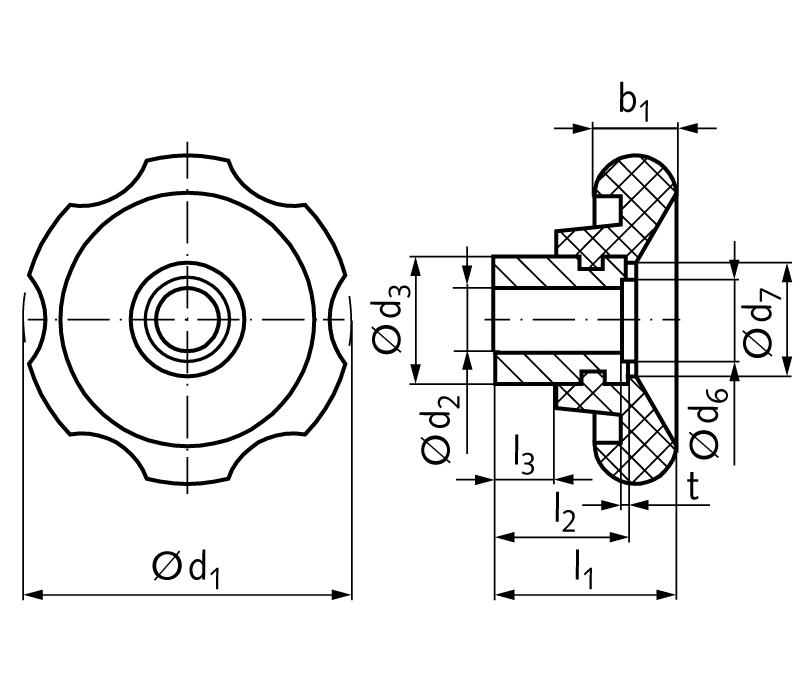

Handwheel 527.1 made of plastic with steel hub with peripheral grooves diameter 70mm bore 14 H7
Manufacturer part no. 67507001
$18.51≈ 16.07 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €16.07 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.21 |
| Total delivered | €37.28 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 160 g |
Other characteristics
| Bore diameter | 14 mm |
| Bushing diameter inner side | 29 mm |
| Bushing diameter support surface | 21.4 mm |
| Hub diameter | 30 mm |
| Hub length | 25 mm |
| Outer diameter | 70 mm |
| Overhang of bushing | 12 mm |
| Total length of wheel | 33 mm |
| Wheel width | 18 mm |
| Material | Polyamide (PA) / Steel |
| Surface | Glossy finish / Black oxide finish |
Description
Material: Plastic Thermoplast (PA) reinforced, black, gloss finish. Hub: Steel, burnished. With steel hubs of large dimension. For applications requiring a large contact surface or a large diameter bore. Temperature resitant up to +120°C. Keyway available at extra charge.
