MÄDLERMÄDLER· Parts for Operating

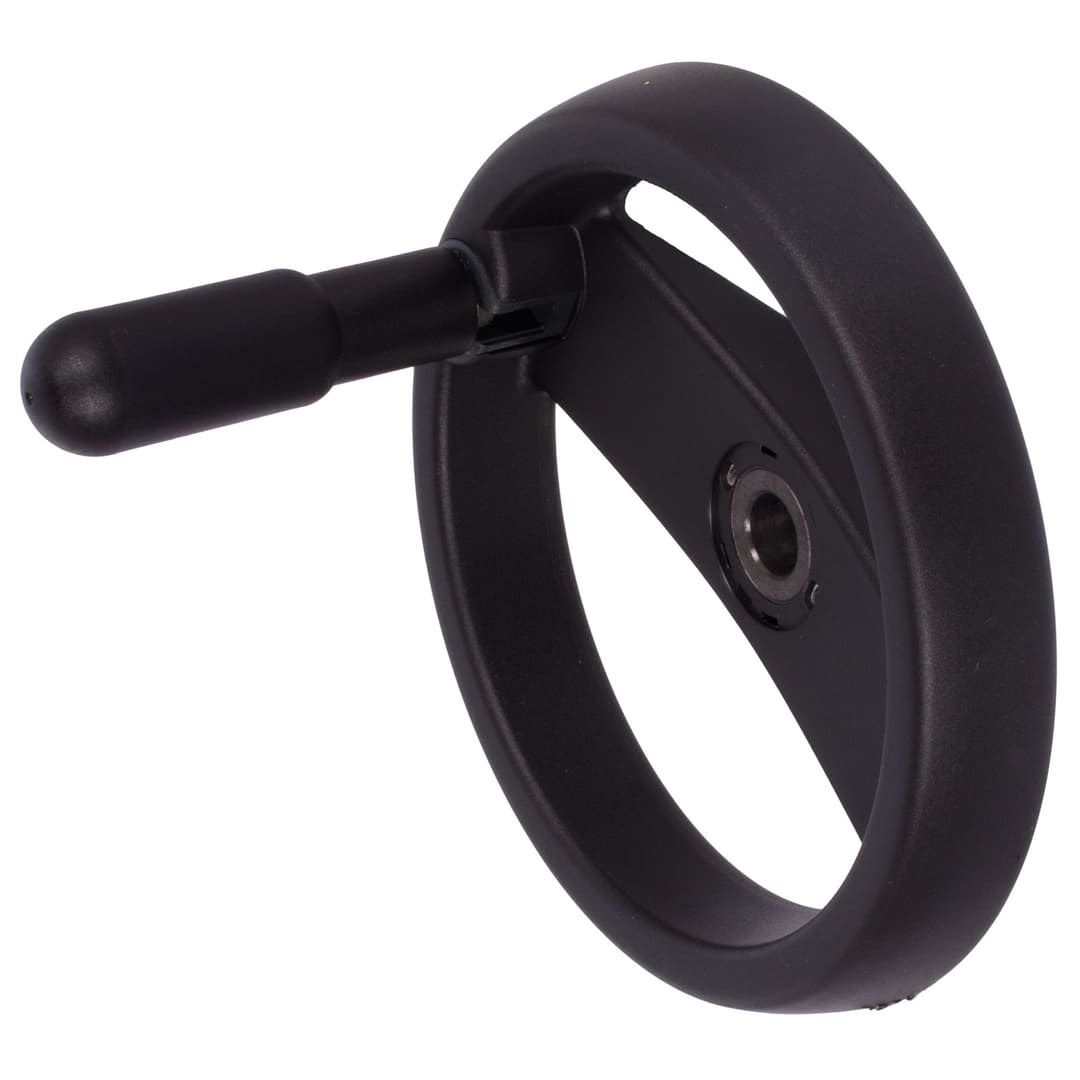

Retractable handwheel 5223 material plastic version N/G diameter 200mm with bore 20H7 and keyway
Manufacturer part no. 67552001
$106.45≈ 92.44 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €92.44 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €21.49 |
| Total delivered | €128.93 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

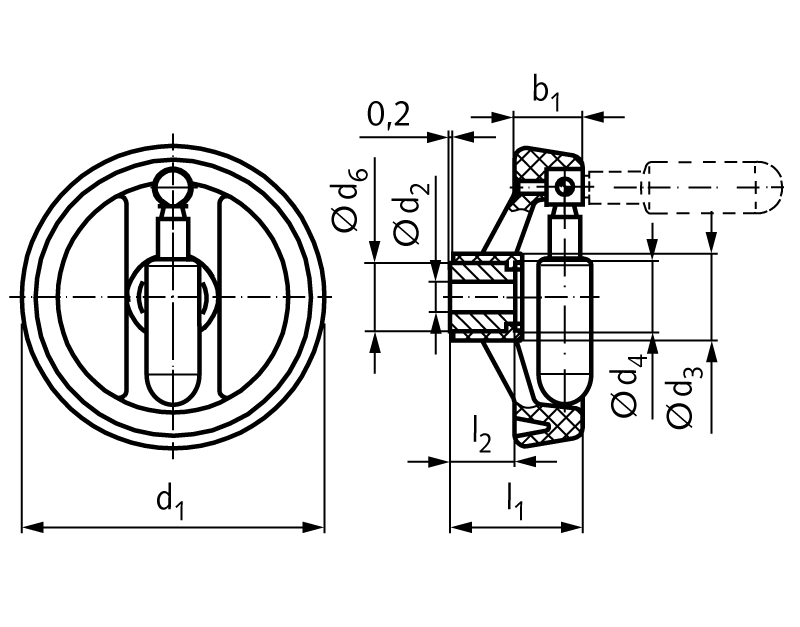

Specifications (automatically extracted)
Mechanical
| Weight | 585 g |
Other characteristics
| Bore diameter | 20 mm |
| Bushing diameter inner side | 28 mm |
| Bushing diameter support surface | 30 mm |
| Handle diameter | 24 mm |
| Hub diameter | 48.5 mm |
| Hub length | 34 mm |
| Length of handle | 80 mm |
| Outer diameter | 200 mm |
| Total length of wheel | 61 mm |
| Wheel width | 28 mm |
| Material | Thermoplastic/Steel |
| Surface | Matt finish / Black oxide finish |
| Version | N/G |
Description
Material: Thermoplast reinforced, impact-proof, black, matt finish. Hub bush: Steel, black oxide finish. Folding system: Steel burnished. Retractable handle: Plastic black. Use: When the handle must not stick out. The handle is firmly locked in a slim taper in the operating position. To retract the handle, it is pulled out of its taper seat and then tilted. A compression spring locks the handle in both end positions. When folding the handle away, it automatically locks in position. Version B/G: Without keyway. Version N/G: With keyway to DIN 6885-1.
