MÄDLERMÄDLER· Fastening Elements

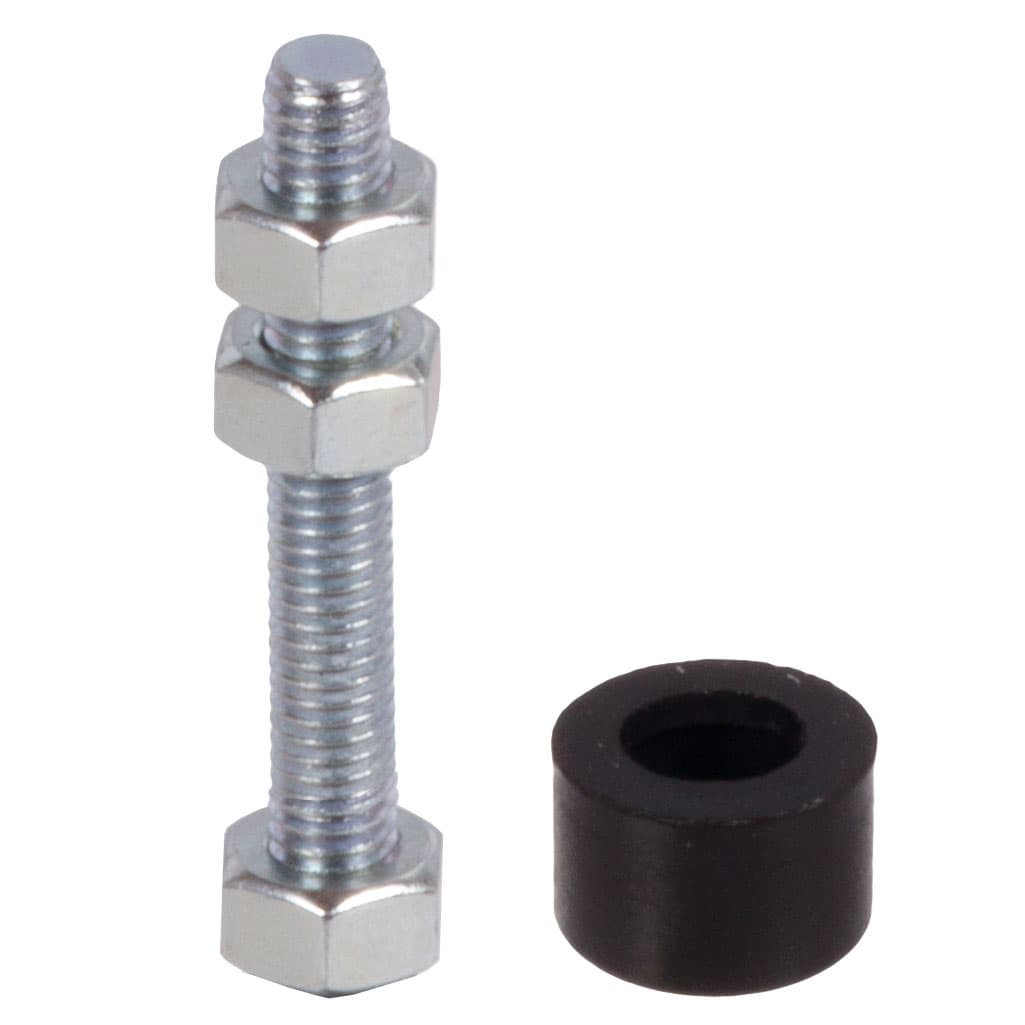

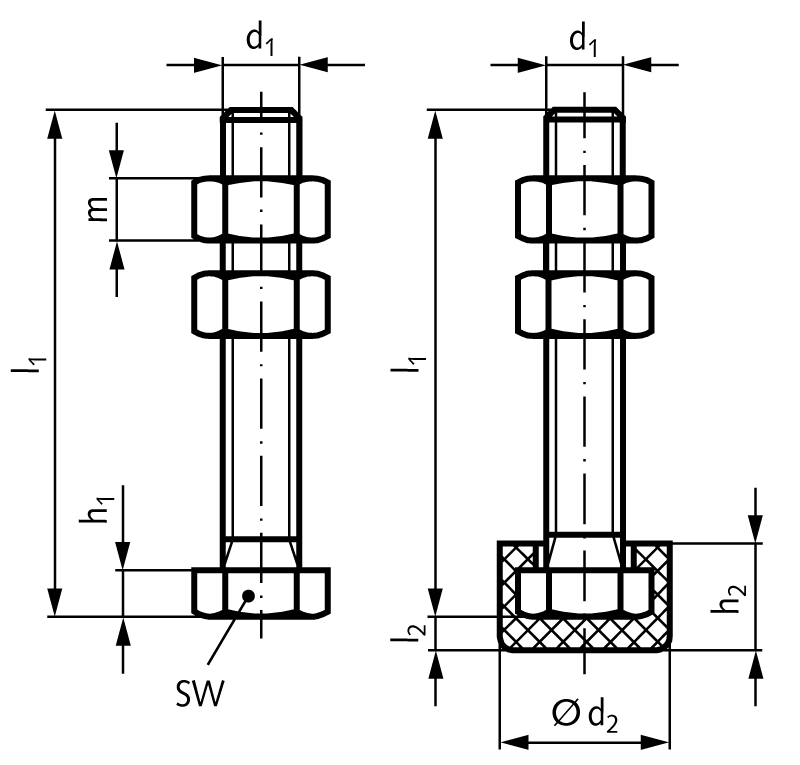

Protective cap for clamping bolt M 4
Manufacturer part no. 67600044
$0.89≈ 0.77 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €0.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.15 |
| Total delivered | €18.92 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1 g |
Other characteristics
| Height of protection cap | 6.7 mm |
| Outer diameter protection cap | 11 mm |
| Overhang of protection cap | 2.7 mm |
| Wrench size | 7 mm |
| Article | Protective cap |
| Material | Neoprene |
| Surface | Blank |
| Thread size | for M4 mm |
Description
Material: Hexagon Bolt: DIN 933, steel, strength class 8, zinc-plated. Hexagon nuts: DIN 934/DIN 936, steel, zinc-plated. Protective cap: Neoprene 85° Shore hardness, black. Note: protective cap has to be ordered separately. This protective cap is elastic and can be easily slipped over the bolt head.
