Name: Vertical clamp version A size 70
Brand: MÄDLER
Price: 29.76 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

95 g

Other characteristics

Holding force	900 N
Length of mounting surface	29 mm
Size	70
Total height	98 mm
Total length	67 mm
Width of mounting surface	34 mm
Material	Steel / Plastic
Shape	A
Surface	Zinc-plated
Thread size	M 5 mm

Description

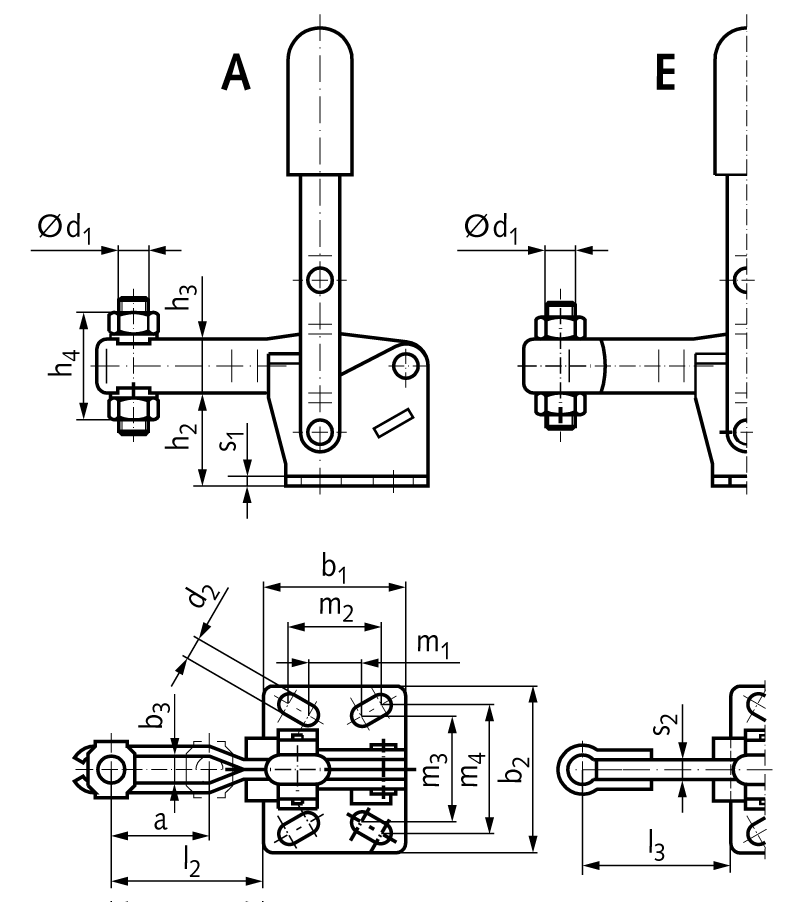

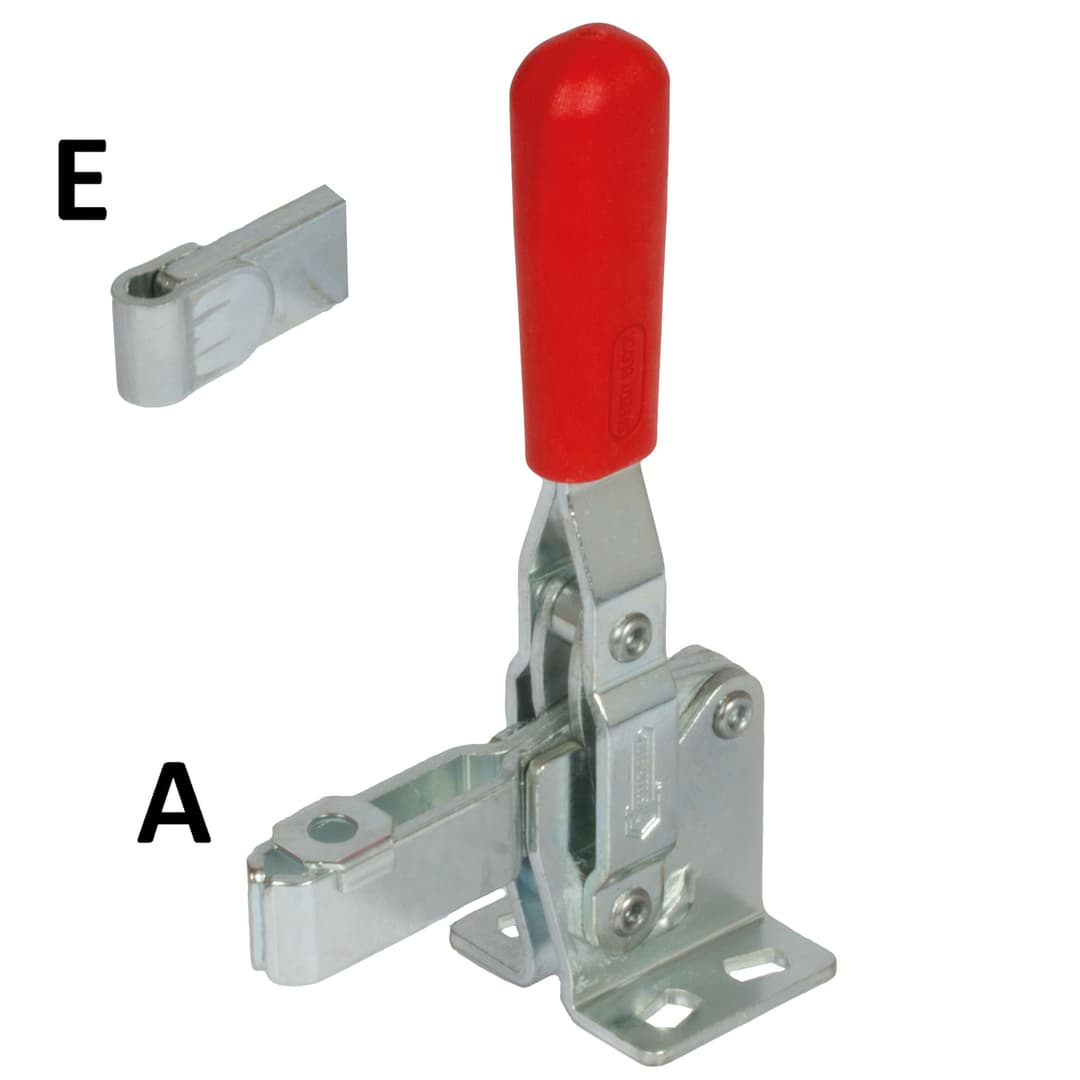

Material: Steel-sheet parts: Case-hardened steel C10, zinc-plated. Bearing pins: Hardened, from size 200 case hardened. All moving parts lubricated with special grease. Handle with plastic sleeve, red, oil resistant. Operating handle and clamping lever move in the same direction. In the clamping position the operating handle is vertical. Vertical clamps are available for holding forces FH from 90 daN up to 460 daN. Note: Worth pointing out is the clamping arm on all vertical clamps: It is blanked out from full and reinforced on the points of highest load. During the closing movement it is guided on both sides to prevent being affected by possible side thrusts. Version A: forked clamping arm. Version E: solid clamping arm. Attention: The clamping bolts and protective cap have to be ordered sperately. * Clamping bolt has to be ordered separately.
