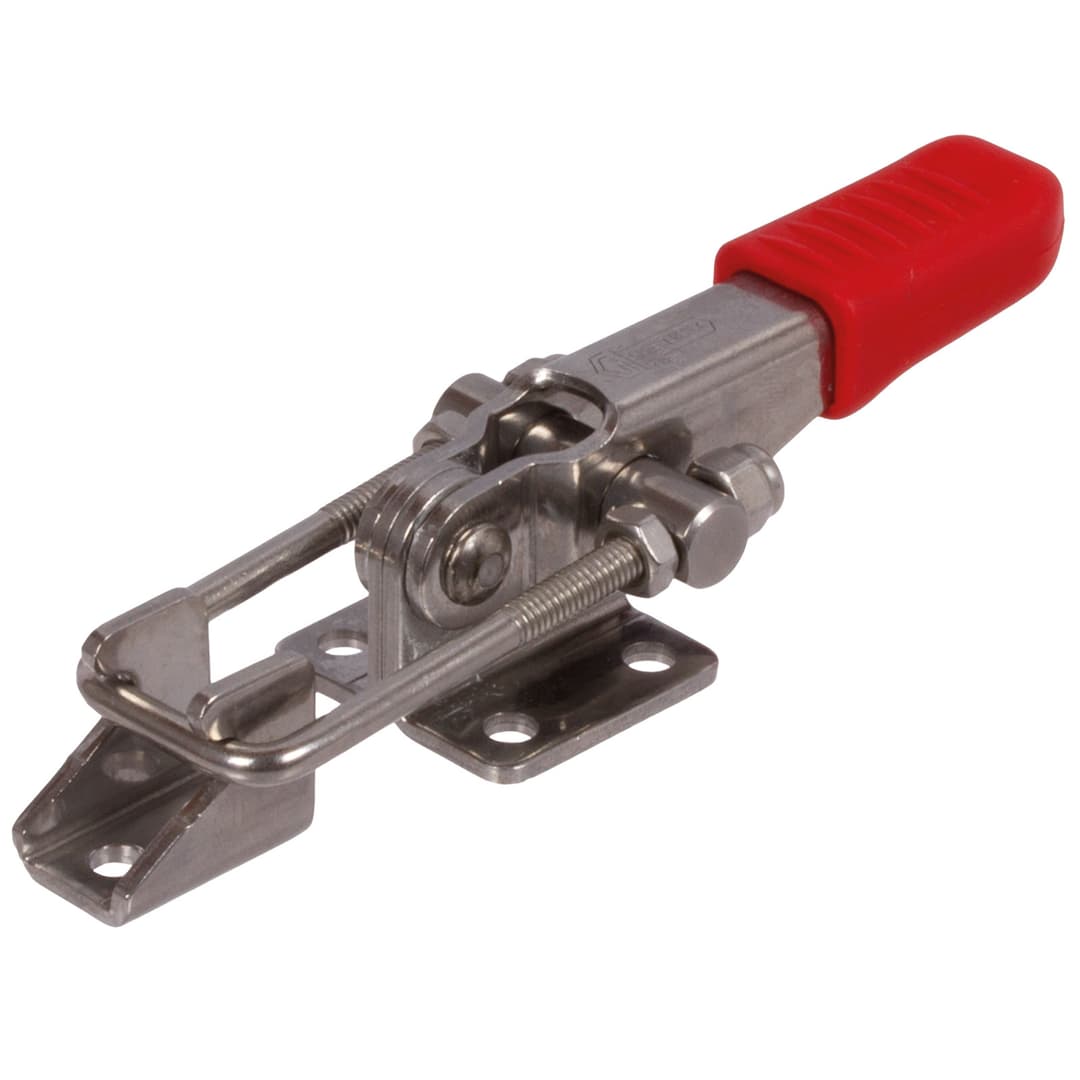

Latch clamp size 320 made from stainless 1.4301 / 1.4305
Manufacturer part no. 67699206
$99.09≈ 86.05 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €86.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.21 |
| Total delivered | €121.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 250 g |
Other characteristics
| Adjustable range | 13 mm |
| Holding force | 3 200 N |
| Length of mounting surface | 40 mm |
| Overall length approx | 152 mm |
| Size | 320 |
| Stroke | 48 mm |
| Total height | 30 mm |
| Width of mounting surface | 44 mm |
| Material | Stainless steel / Plastic |
| Surface | Blank |
| Thread size | M 6 mm |
Description

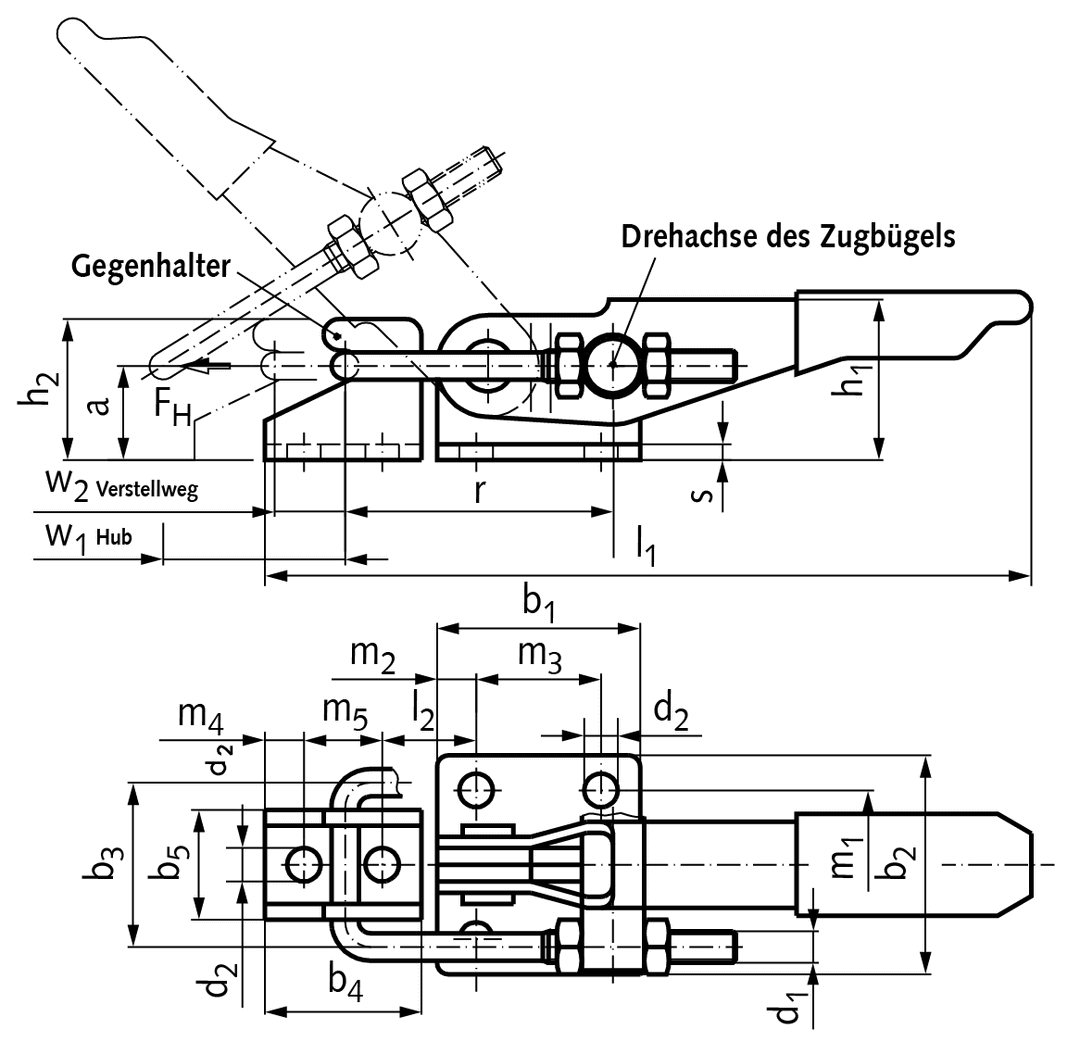

Material: Sheet-metal parts: 1.4301 (AISI 304) Pulling latch: 1.4305 (AISI 303) Handle: Plastic sleeve, red, oil resistant. Latch clamps allow a fast and secure locking of lids and covers. The stroke of the pulling ledge can be adjusted within its range. In the clamped position the pulling ledge with its clamping arm is parallel to the plane of the operating handle. Latch bracket included in the delivery.
