MÄDLERMÄDLER· Fastening Elements

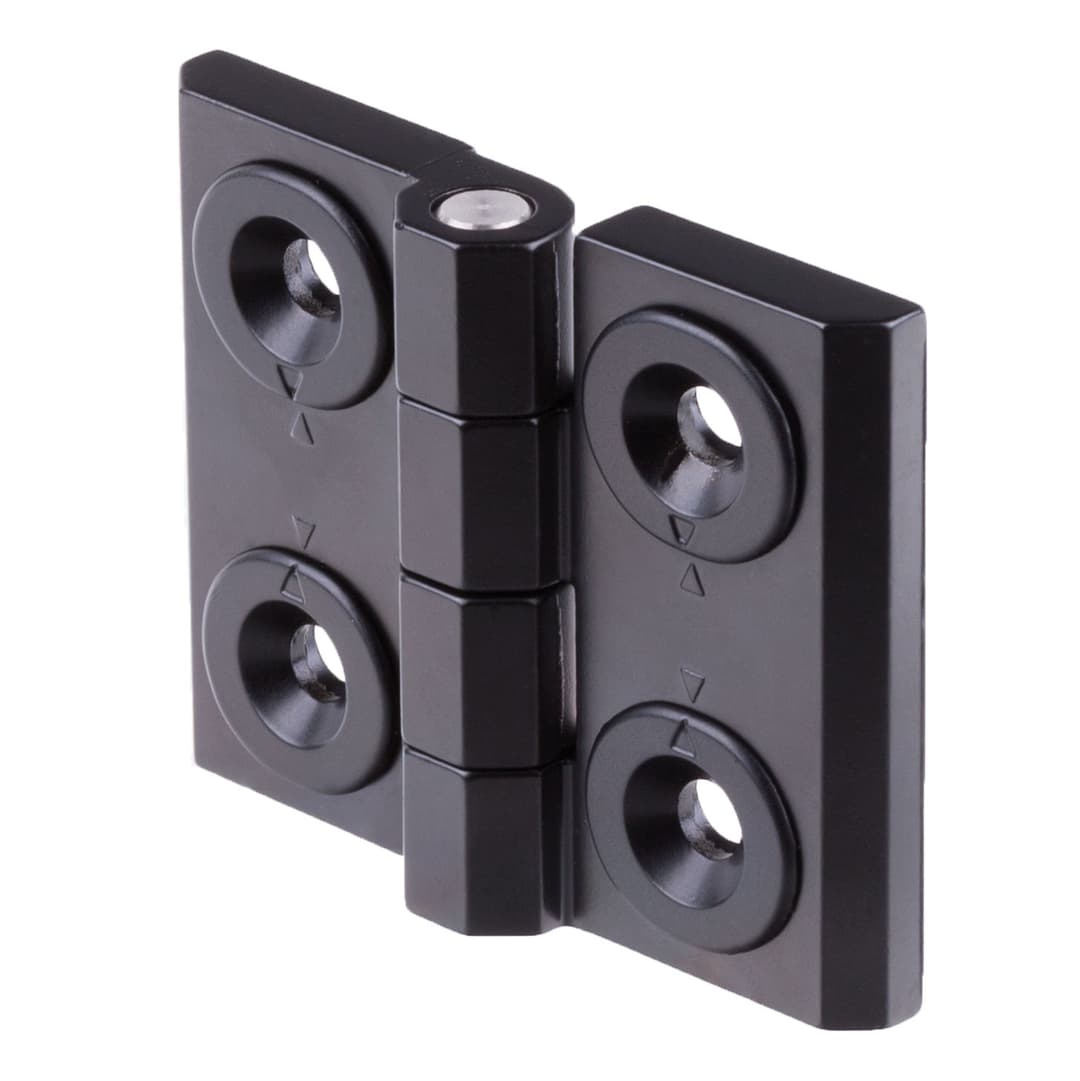

Hinge M127 zinc die casting, adjustable, type HB, 76x60mm
Manufacturer part no. 67700103
$32.54≈ 28.26 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €28.26 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.65 |
| Total delivered | €51.91 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 201 g |
| Dimensions | 76x60mm |
Other characteristics
| Length | 76 mm |
| Max axial force | 1 150 N |
| Max radial force at opening angle 90 | 2 000 N |
| Total height | 15 mm |
| Width | 60 mm |
| Material | Zinc die-cast |
| Shape | HB |
| Surface | Plastic coated, matt finish |
Description

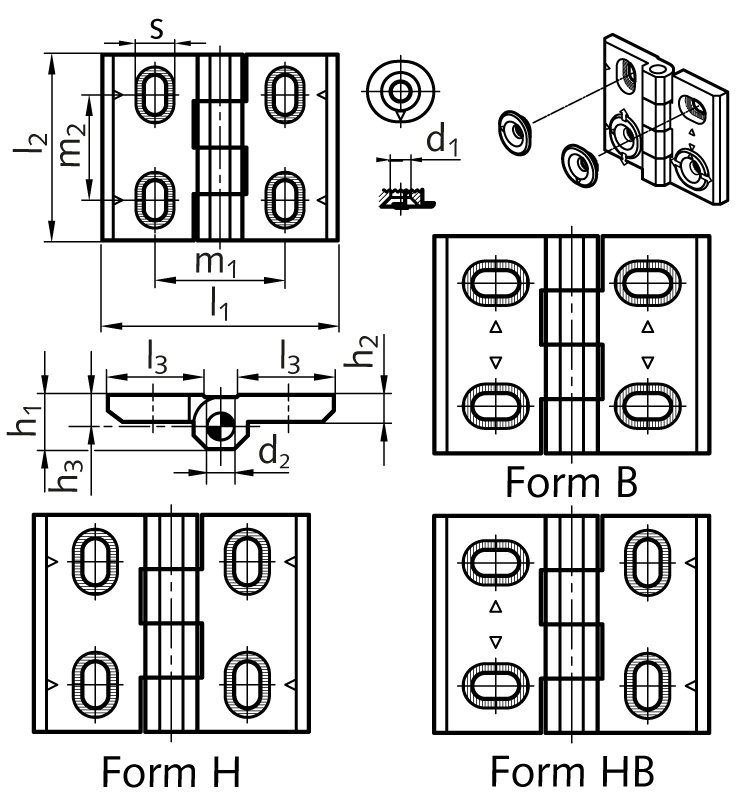

Material: Zinc die cast, plastic coated black, textured finish. Pin: Stainless steel 1.4305. These adjustable, non-detachable hinges allow the accurate positioning of a door or cover in its frame. The serrations at the hinge holes and at the adjusting bushes create a form lock which prevents the hinge from moving after installation. Adjusting range +/- 2mm. Type H: horizontal adjustable. Type B: vertical adjustable. Type HB: vertical and horizontal adjustable. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
