Hinge M128 steel, for welding, type STS, l=200mm
Manufacturer part no. 67700130
$43.94≈ 38.16 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €38.16 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.63 |
| Total delivered | €63.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 670 g |
Other characteristics
| Length | 200 mm |
| Max width | 16 mm |
| Outer diameter | 23 mm |
| Material | Steel / Brass |
| Shape | STS |
| Surface | Blank |
Description

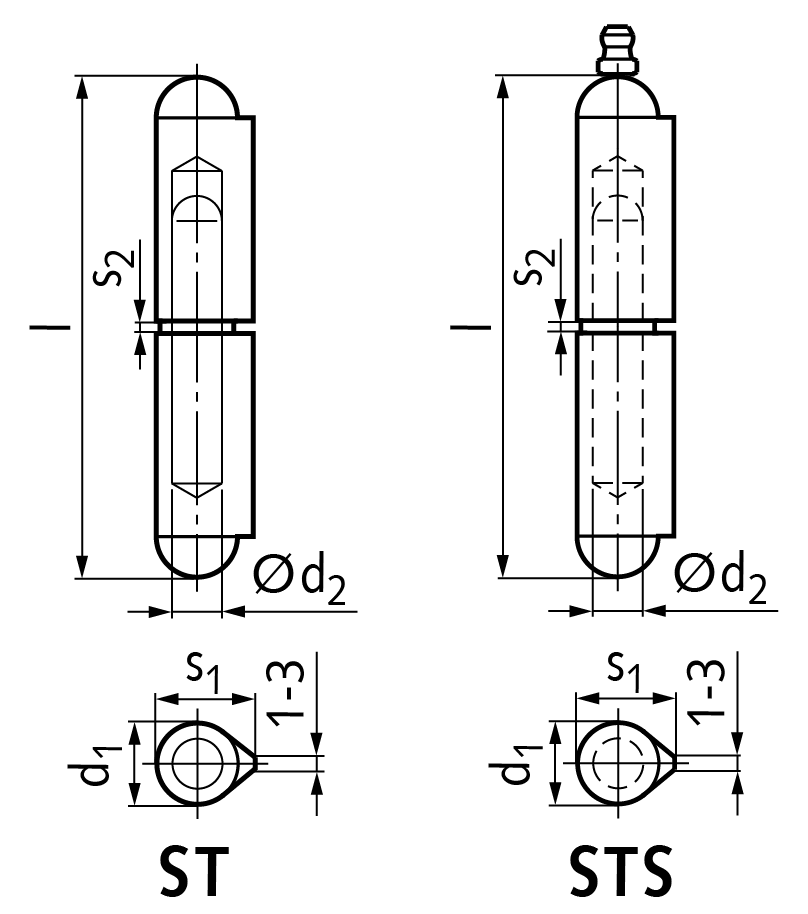

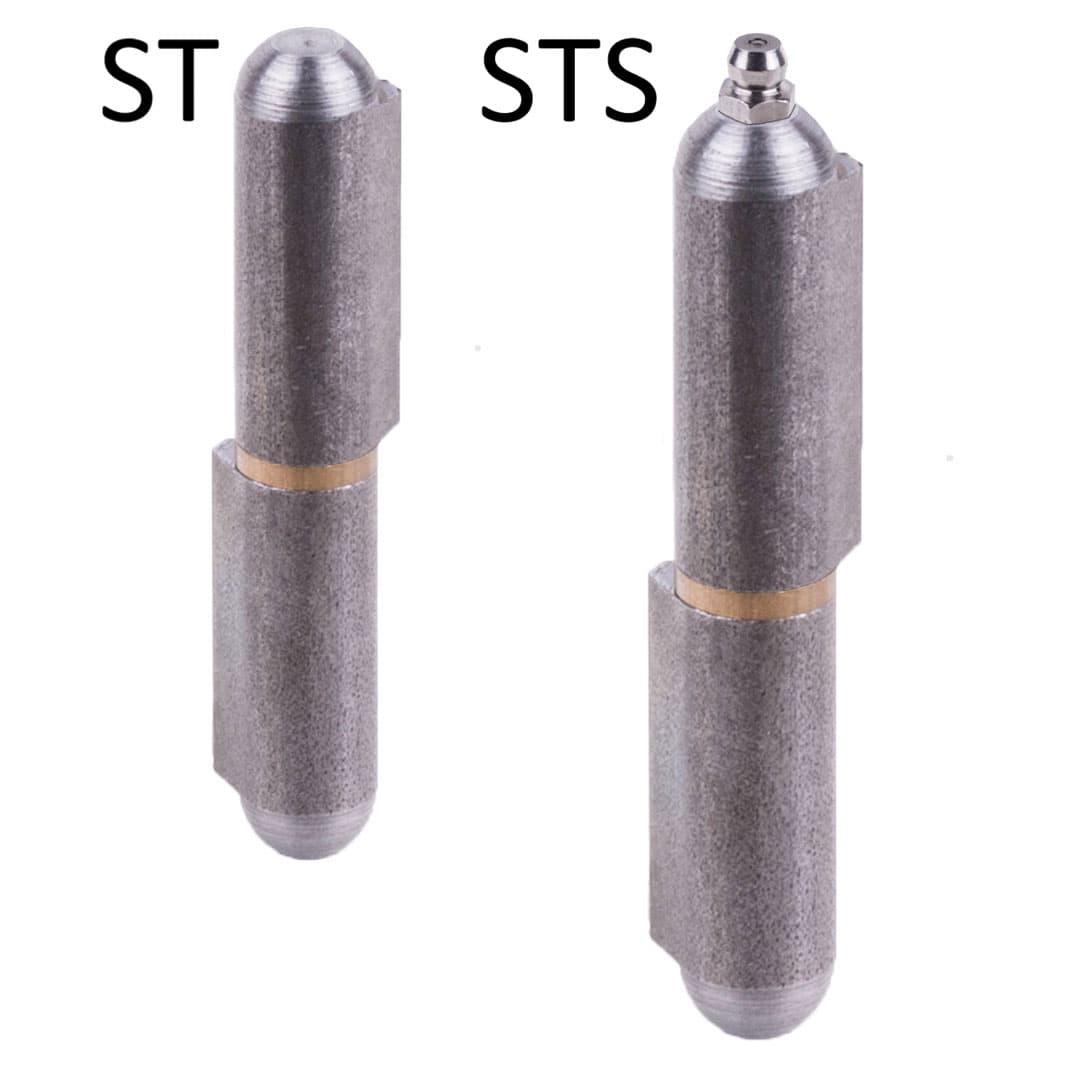

Material: Housing and Pin from Steel, Sliding disk from Brass. These detachable hinges are produced from weldable drawn steel. Type ST: The hinge pin is fixed in one half of hinge. Type STS: Like ST, but with lubricating nipple DIN 71412-D.
