MÄDLERMÄDLER· Fastening Elements

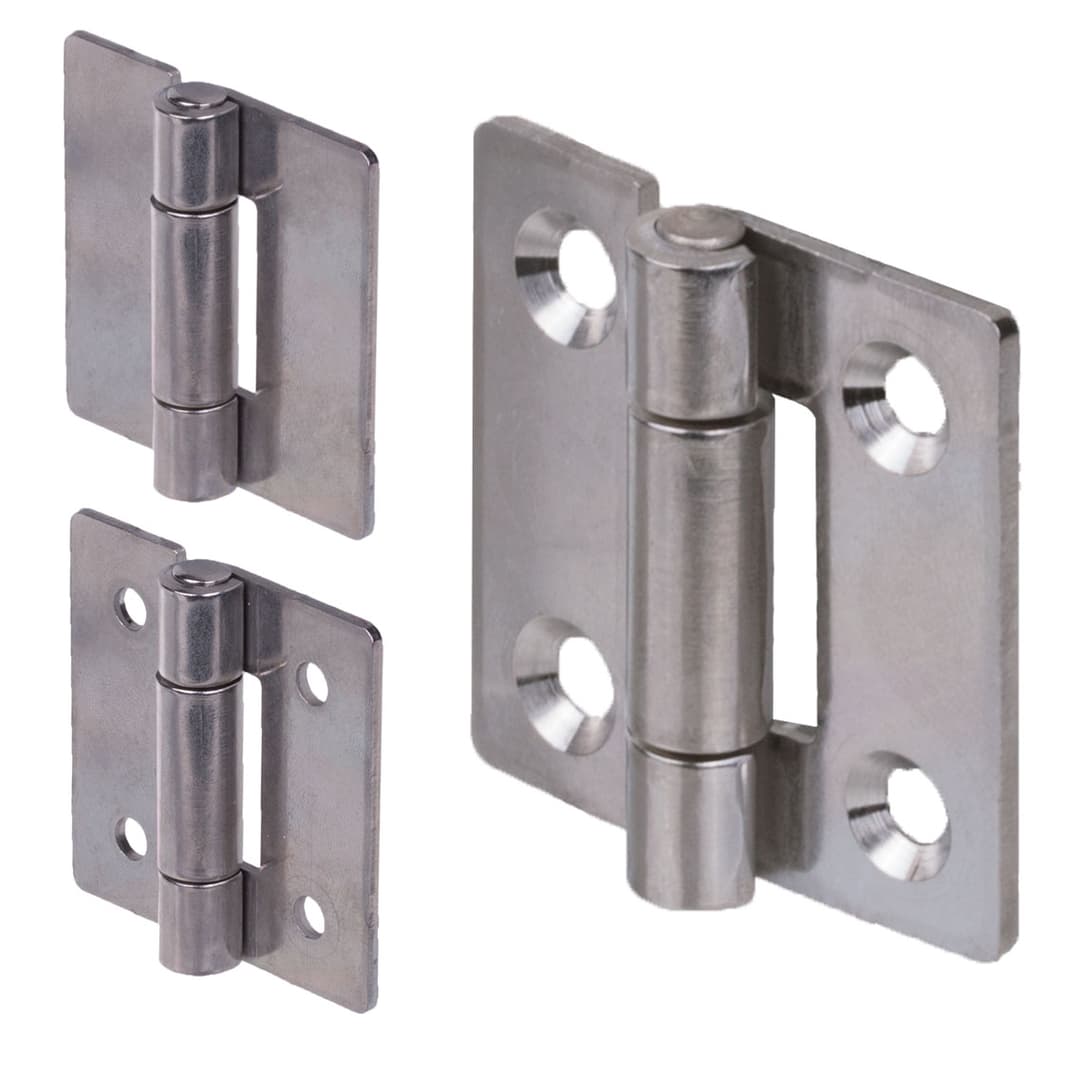

Sheet metal hinge M136 stainless steel 1.4301, type A, 60x60mm
Manufacturer part no. 67700173
$8.45≈ 7.34 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €7.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.47 |
| Total delivered | €26.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 83 g |
| Dimensions | 60x60mm |
Other characteristics
| Length | 60 mm |
| Max axial force | 2 800 N |
| Max radial force at opening angle 90 | 1 100 N |
| Width | 60 mm |
| Material | Stainless steel (304) |
| Shape | A |
| Surface | Blank |
Description

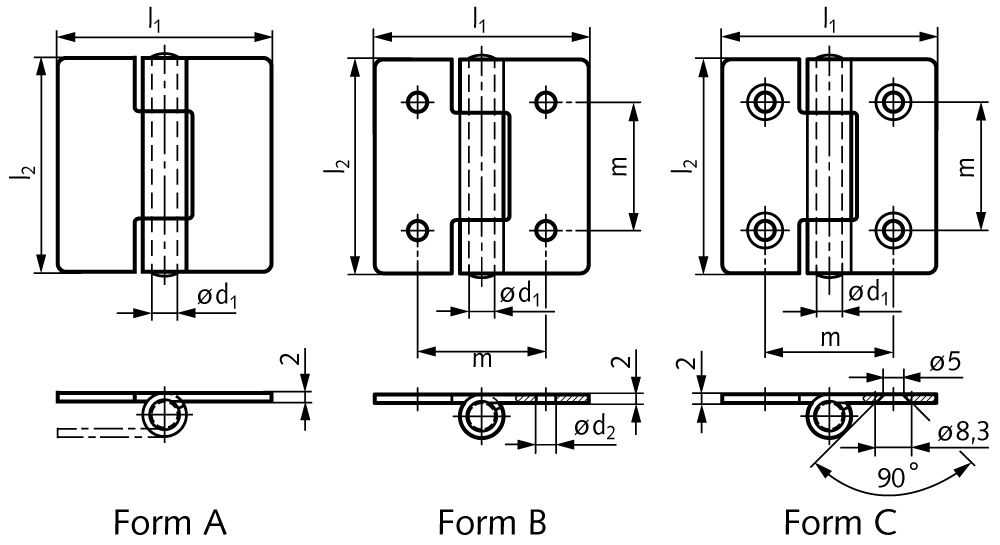

Material: Stainless steel 1.4301 (AISI 304). Non-detachable hinge. Low-cost designs for low-load applications. Type A: for welding. Type B: with bores for cylinder head screws / lens head screws. Type C: with bore for countersunk screws. 1) Max. axial force. 2) Max. Radial force at opening angle 90°. These are non-binding guide values without any liability.
