MÄDLERMÄDLER· Fastening Elements

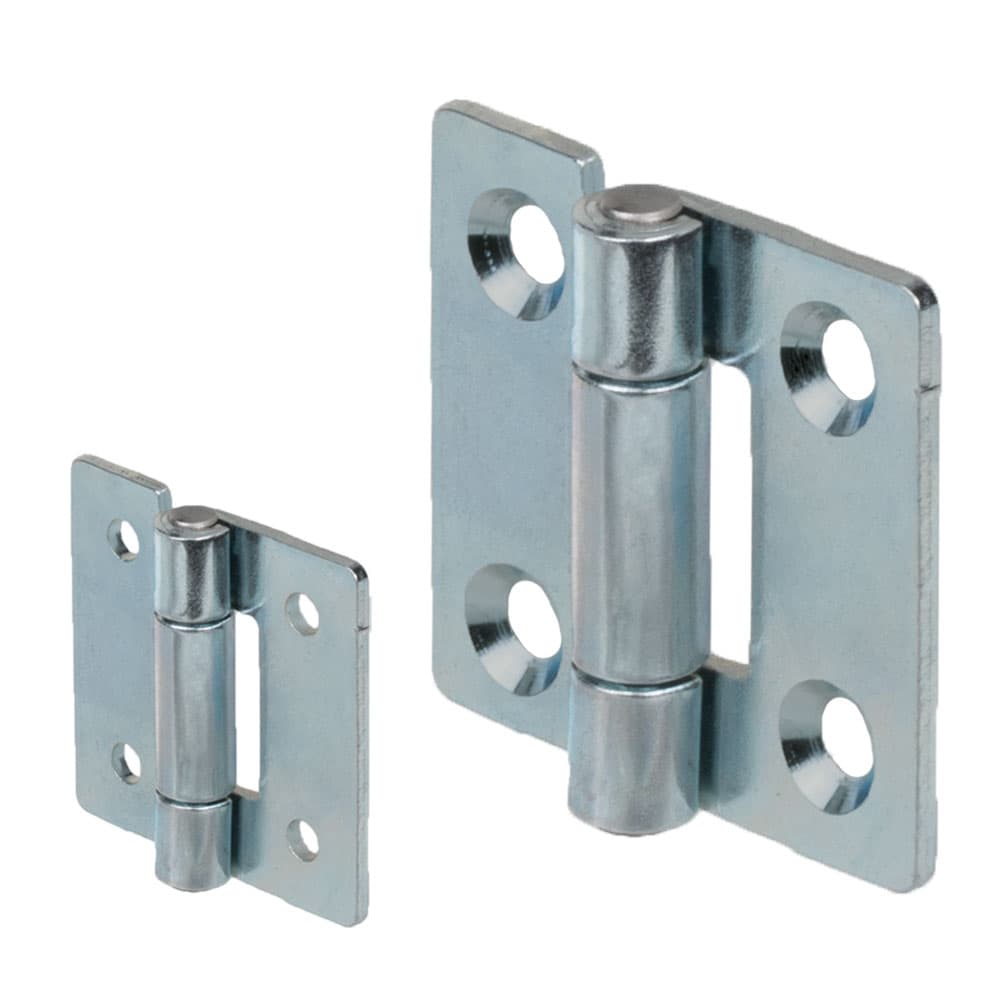

Sheet metal hinge M136 steel zinc plated, type C, 50x50mm
Manufacturer part no. 67700202
$6.38≈ 5.54 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €5.54 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.11 |
| Total delivered | €24.65 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 60 g |
| Dimensions | 50x50mm |
Other characteristics
| Length | 50 mm |
| Max axial force | 2 500 N |
| Max radial force at opening angle 90 | 1 000 N |
| Width | 50 mm |
| Material | Steel |
| Shape | C |
| Surface | Zinc-plated (blue) |
Description
Material: Steel, zinc plated. Non-detachable hinge. Low-cost designs for low-load applications. Type B: with bores for cylinder head screws / lens head screws. Type C: with bore for countersunk screws. 1) Max. axial force. 2) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
